160

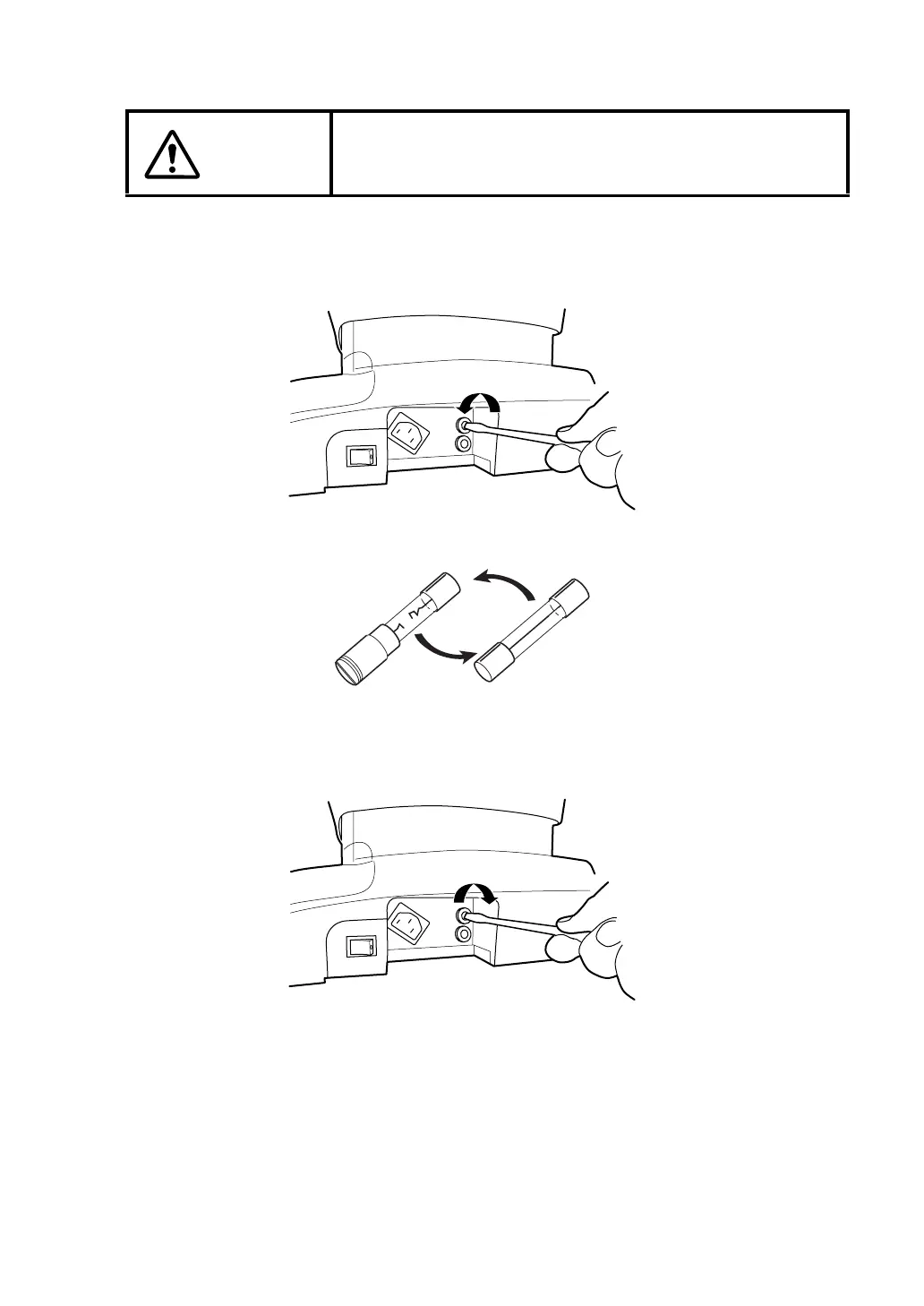

MAINTENANCE AND CHECKING
REPLA
CING THE FUSE
1
Make sure the power is OFF and the po
wer cable is unplugged.
2
Press the fuse holder with a screwdri
ver and turn it counterclockwise.
The fuse holder can be ta
ken out.
3
Replace the fuse with th
e attached fuse.
4
Press the fuse h
older lightly with a
screwdriver and tu
rn it clockwise.
The fuse holder
is now reset.
W
ARNING
When changing
the fuse, t
urn off the power
, and disconn
ect
the power cord
. Use the rated fuse.
Replacing the fuse
160
162
Table of Contents
Introduction
2
Displays for Safe Use
4
Safety Precautions
5
Table of Contents
6
Escape Clause
8
Usage and Maintenance
8
Warning Indications and Positions
9
To Avoid Injury, When Moving the Chinrest Up/Down, Keep Fingers
9
Components
13
Component Names
13
Composition of Parts Which Contact the Human Body
13
Control Panel Components (Ref/Krt Mode)
14
Control Panel Components (Tono/Pacho Mode)
17
Monitor Screen Components (Ref/Krt Mode)
20
Monitor Screen Components (Tono/Pacho Mode)
23
Other Screen Displays
26
Printer Output
28
Standard Accessories
33
Preparations
34
Installing the Instrument
34
To Avoid Injury, Do Not Install the Instrument on a Slope or on an
34
Connecting the Power Cable
35
To Avoid Electrical Shock, Do Not Handle the Power Plug with Wet Fin Gers
35
Connecting External I/O Terminals
36
Function Settings by Means of Menu
37
List of Menus
37
Initial Setting
39
Preparation for Initial Setting
39
Returning to the Measurement Screen
39
Initial Setting
40
Setting Printout
50
On-Line Setting (Data Communitation)
62
Displaying the Menu Screen
68
Menu Setting
68
Preparation for Menu Setting
68
Menu Screen under Fully Automatic Measurement Mode
69
Returning to the Measurement Screen
69
Setting Menu (R/K)
70
Seeting Menu (T/P)
82
Setting the Printer Paper
87
To Avoid Failure or Potential Injury, Do Not Open the Printer Cover
87
Resetting from Power Save Status
89
Operating the Control Lever
89
Basic Operations
91
Changing the Measurement Mode
91
Measurement Mode
91
Fingers into the Measuring Opening
91
Type of Measurement to be Done under Ref/Krt Measurement Mode
93
Type of Measurement to be Done under Tono/Pacho Measurement Mode
94
Choosing the Eye to be Measured
95
When Measuring the Refractory Power and Corneal Curvature Radius of the Eye
97
Preparation before Measurement (Ref/Krt Mode)
97
Turn on the Power
97
Positioning the Patient
99
Never Insert Your Fingers under the Chinrest
99
Adjusting Monitor's Angle
100
Measurement under Auto Mode (Ref/Krt Mode)
101
Measurement under Manual Mode (Ref/Krt Mode)
106
Displaying Measurement Values (Ref/Krt Mode)
108
Deleting Measurement Values (Ref/Krt Mode)
109
Preparations before Measurement (Tono/Pacho Mode)
110
Turn on the Power
110
When Measuring the Ocular Pressure and Cornea Thickness of the Eye
110
Checking the Measuring Nozzle
111
Air Check
112
Inform the Patient of This, too Careless Insertion of Fingers May Cause Injury by Pinching
114
Positioning the Patient
114
Adjusting Monitor's Angle
115
Setting the Safety Stop
115
Measurement under Auto Mode (Tono/Pacho Mode)
118
Measurement under Manual Mode (Tono/Pacho Mode)
125
Measuring the Cornea Thickness (Tono/Pacho Mode)
131
Displaying Measurement Values (Tono/Pacho Mode)
132
Deleting Measurement Values (Tono/Pacho Mode)
133
In a Case Like this
134
To Stop Measurement
134
To Measure the Right/Left Eye Only
135
The Limit Icon Appears and the Measurement Is Not Possible
137
The Nozzle Limit Appears and the Measurement Is Not Possible
138
Alignment Does Not Start
139
Changing the Number of Measurements
142
Individual Operations
142
Displaying All Measurement Data
143
Printing Measurement Values
147
Measuring the Cornea Diameter
149
Measuring the Hard Contact Lens
155
Input/Output Using Rs-232C
156
Checking the Measuring Accuracy
157
Cleaning the Instrument
157
Cleaning the Measuring Window Glass
157
Daily Meaintenance
157
Maintenance and Checking
157
Cleaning the Nozzle and Chamber Glass Inside the Measuring Nozzle
158
Adjusting the Monitor Screen
159
Printer Paper Jam
160
While the Printer Is in Operation
160
Replacing the Fuse
161
Special Note of Cleaning
162
Cleaning the Outer Cover and Monitor Screen
162
Cleaning the Components Touching the Patient
162
Items of Specialist Maintenance
162
Do Not Use or Apply any Spray-Type Cleaner Near the Instrument
162
Before Requesting Service
163
Air Check
163
Checking Operations
163
Message List
164
Optional Accessories
165
Ordering Consumable Supplies
166
Shape of Plug
166
Rs232C Communication Specifications
168
Specifications
169
Specification and Performance
169
Dimensions and Weight
170
Intended Use
170
Operation Principles
170
Electric Rating
170
Electromagnetic Compatibility
171
Equipment Classification
175
Disposal of Product
175
