35
PREPARATIONS

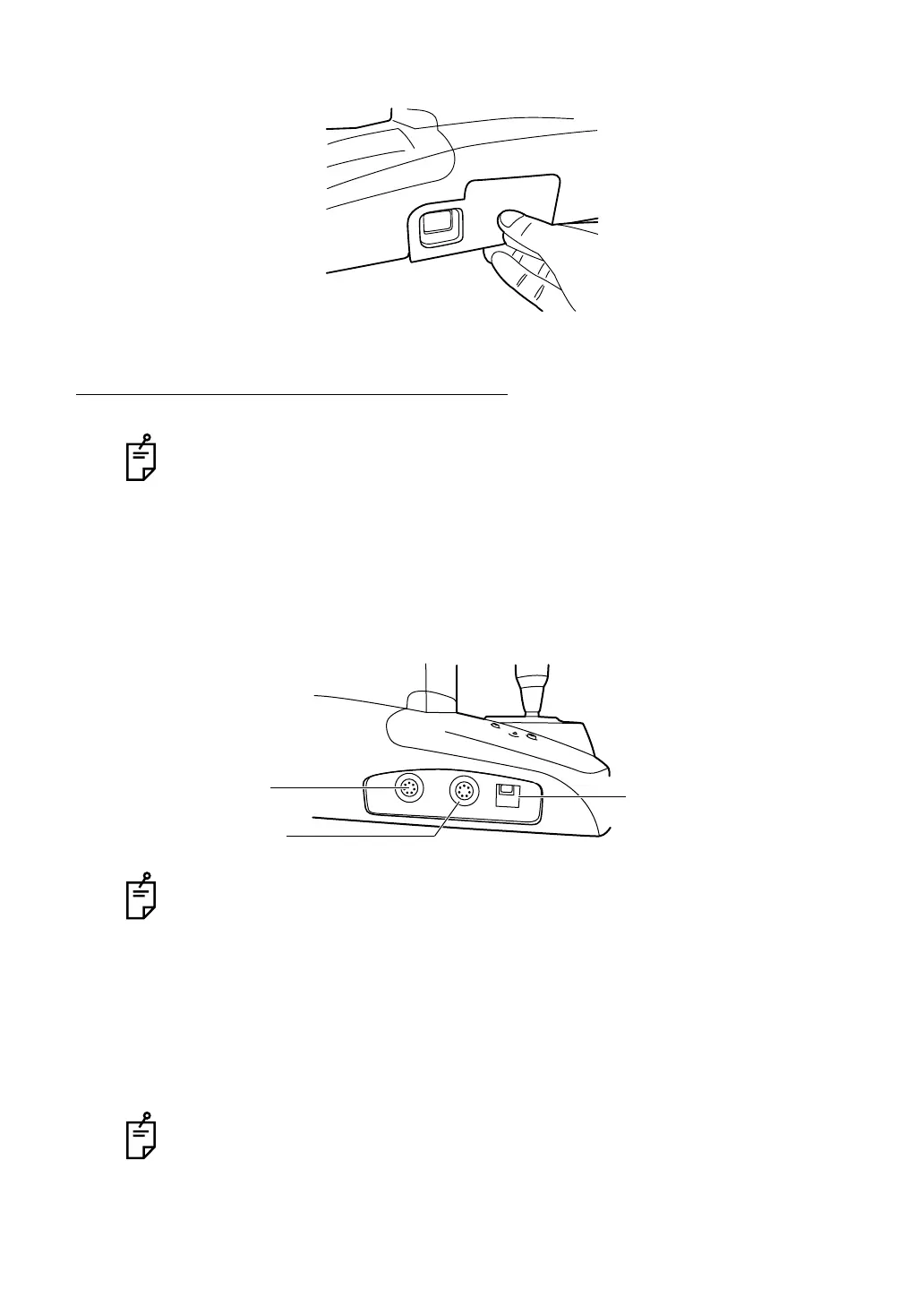

4 Then put the inlet cover.
5 Plug the power cable into the 3-pin AC outlet with grounding.
CONNECTING EXTERNAL I/O TERMINALS
DATA OUTPUT
This instrument can be connected to another device, including a personal computer via the
RS232C or USB terminal.
1 Connect the cable to the RS232C OUT terminal of the instrument.
2 Connect the other cable end to the PC and other external device.
DATA INPUT
This instrument can be connected to another device, including a barcode reader via the
RS232C terminal.
1 Connect the cable to the RS232C IN terminal of the instrument.
2 Connect the other cable end to the external device.
Use the external device complying with IEC60950/IEC60950-1 or UL60950/
UL60950-1.
USB OUT terminal can be connected to Series B plug.
When connecting cable, be sure to use the cable with correct shape of plug.
For inquiries about the RS232C, call your dealer or TOPCON at the address
printed on the back cover of this manual.
USB OUT terminal
RS232C IN terminal
RS232C OUT terminal
To Next Page
