DisassemblingtheControlArm(continued)
3.Loosenthe2swelllatches(item13inFigure304)andremovetheaccess
coverfromoutsideofthecontrolarm.
4.Atthefrontofthecontrolarm,removethescrew(item11inFigure304)and
locknutthatsecurethecontrolarmcoverstoeachother.
5.Removethe5washer-headscrews(item15inFigure304)thatsecureeach
covertothecontrolarm.
6.Removethecontrolarmcoversfromthemachine.Astheleftcontrolarm
cover(item32inFigure304)isremovedfromthecontrolarm,disconnectthe
wireharnessconnectorfromtheheadlightswitch.
7.Removetheelectricalcomponentsfromthecontrolarmasnecessary(Figure
304).
g228649

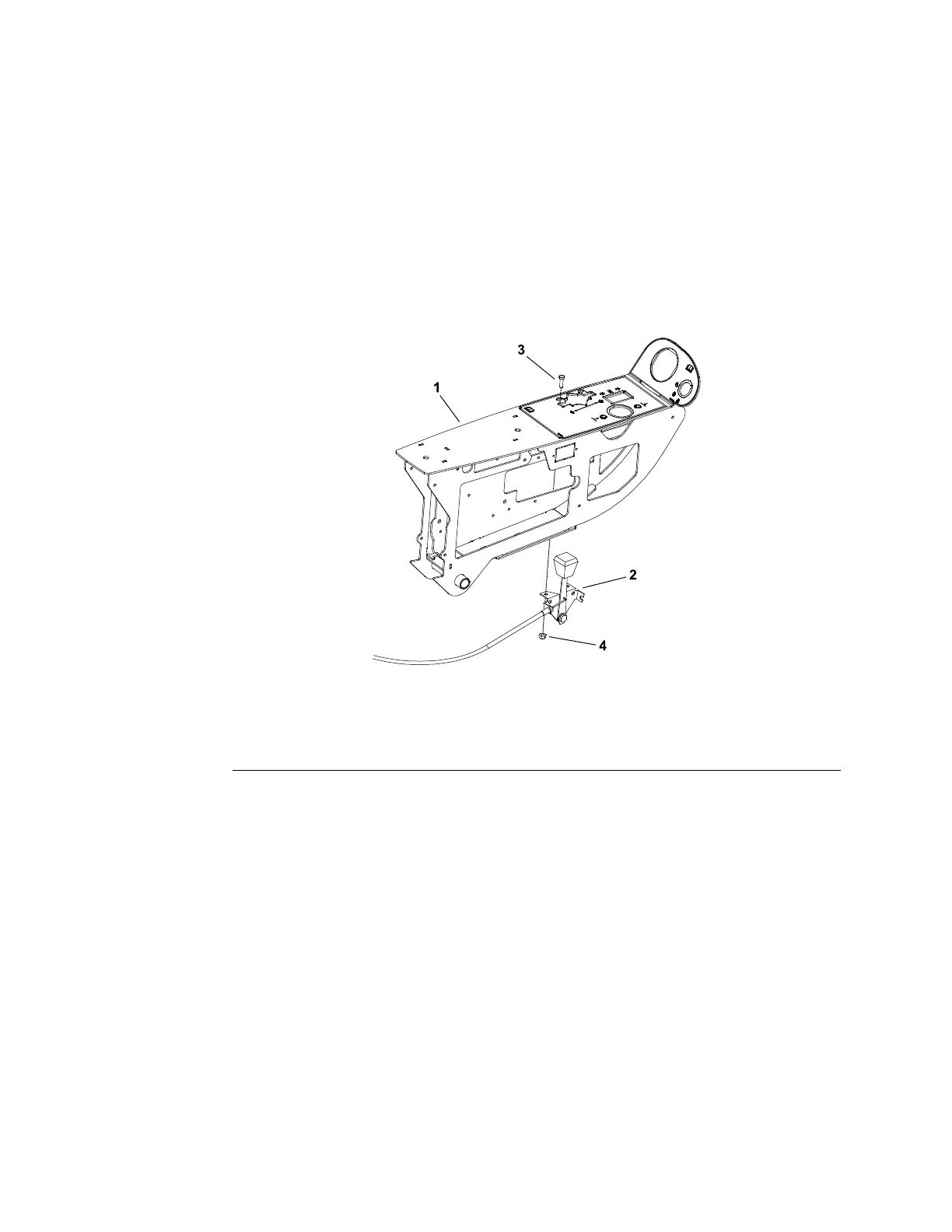

Figure305
1.Controlarmframe3.Screw(2each)
2.Throttlecontrol
4.Locknut(2each)
Note:ReelmastermachinewithaKubotadieselenginehaveacontrolarm
mountedthrottlecontroltoadjustenginespeed(Figure305).
Chassis:ServiceandRepairs
Page8–24
Reelmaster
®
5410/5510/5610Series
15216SLRevC
