DisassemblingtheControlArm(continued)

g185936

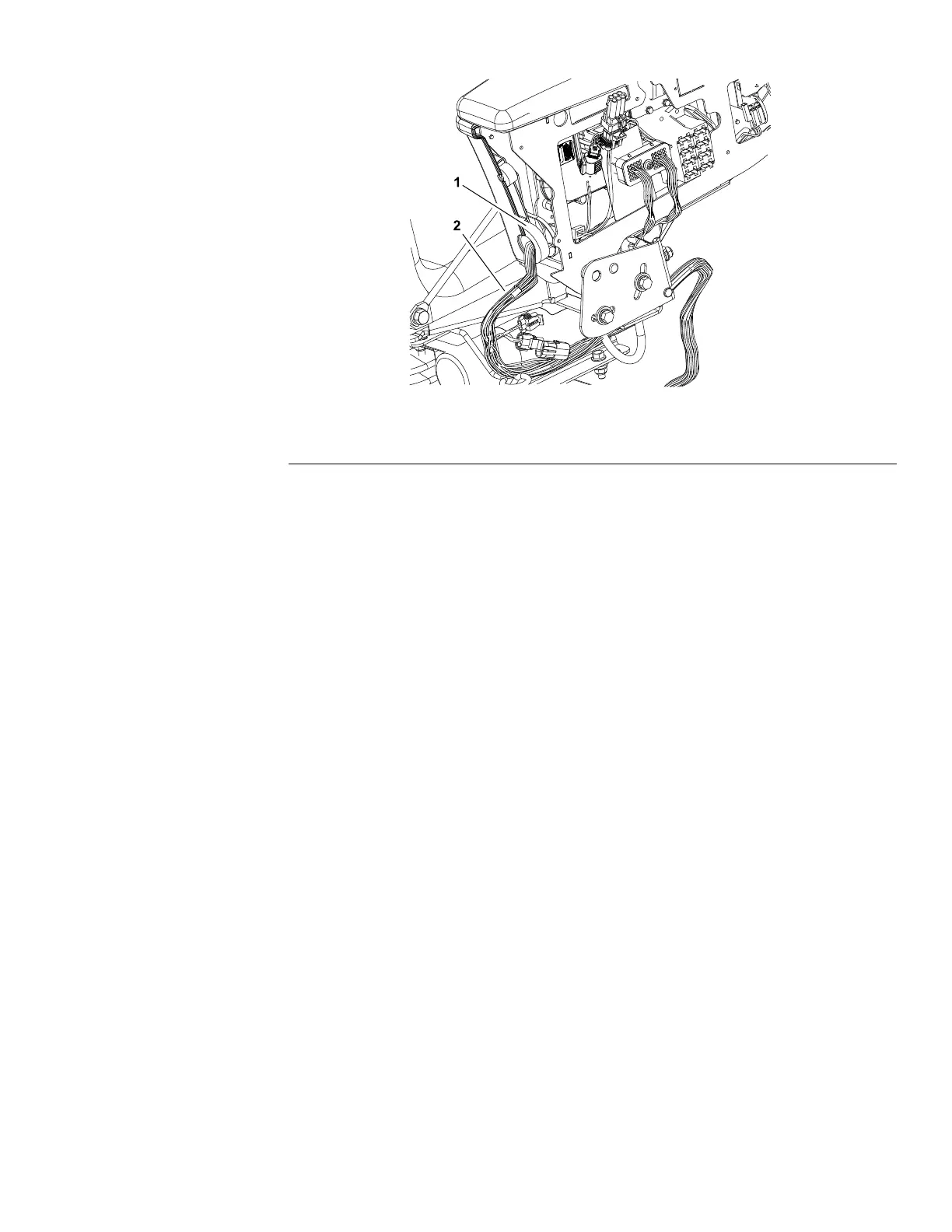

Figure306

1.Foamseal

2.Platformwireharness

AssemblingtheControlArm

1.Installalltheelectricalcomponentsthatwereremovedfromthecontrolarm

(Figure304).

2.Positionthecoverstothecontrolarm.Astheleftcontrolarmcover(item32

inFigure304)isplaced,connectthewireharnessconnectortotheheadlight

switch.Also,ensurethattheplatformwireharnessisroutedcorrectly

throughthecoveropeningsandtheharnessfoamsealiscapturedbetween

thecontrolarmcovers(Figure306).

3.Secureeachcovertothecontrolarmwiththe5washer-headscrews(item

15inFigure304).Installthescrew(item11inFigure304)andlocknutto

securethecoversatthefrontofthecontrolarm.

4.Installtheaccesscovertooutsideofthecontrolarm.

5.Connectthenegativebatterycabletothebattery;refertoServicingthe

Battery(page7–125).

Reelmaster

5410/5510/5610Series

Page8–25

Chassis:ServiceandRepairs

15216SLRevC
