Communication-Link Wire
BMTW-SVN01F-EN 57

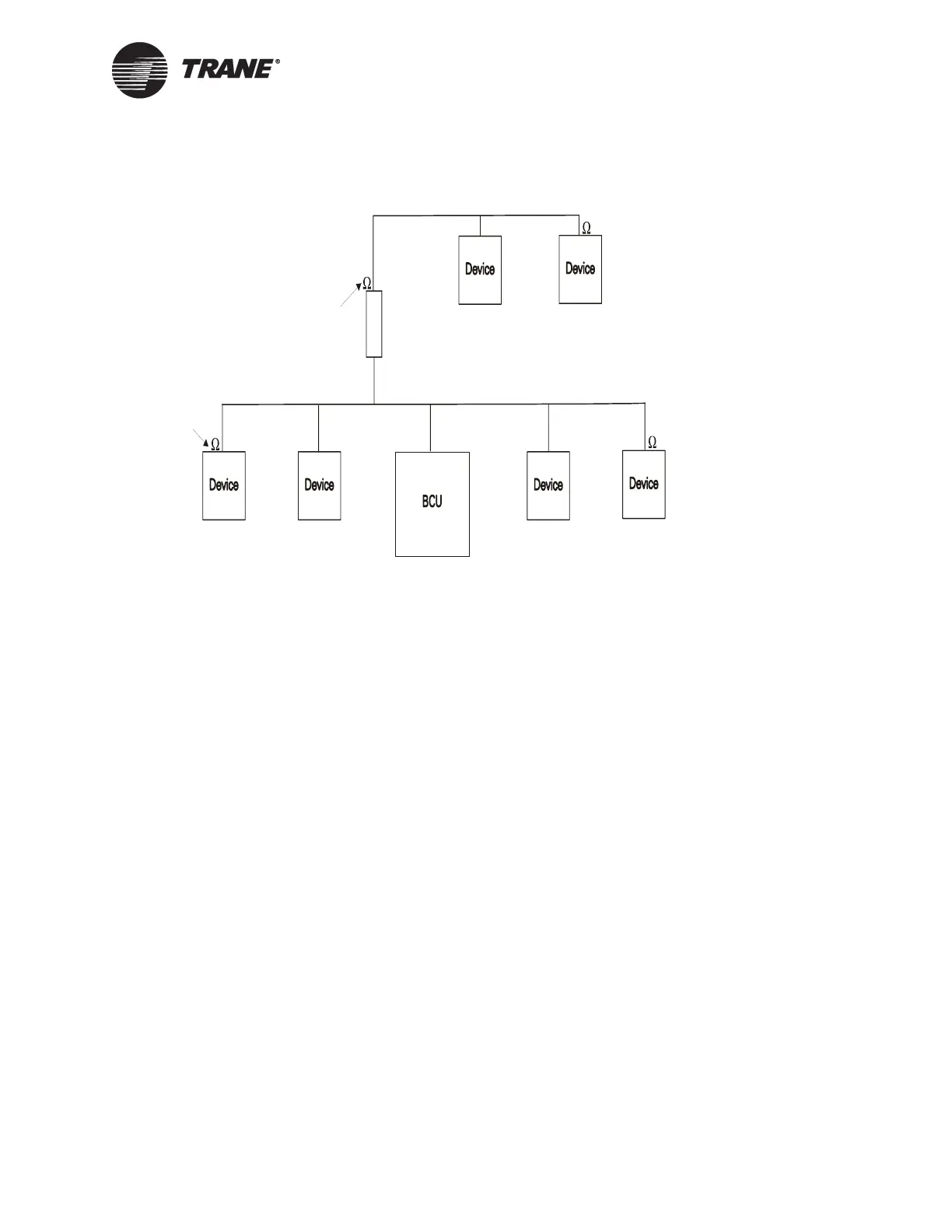

Figure 25. Alternate Daisy Chain Configuration for Comm5
Communication-Link Wiring
Figure Note:
• Maximum wire length for Comm5 is 4,500 ft (1,400 m). on each side of the
repeater.
Repeater
Termination resistor
Termination resistor
Termination resistor
Termination resistor
