DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 2 8
The DNR-12-1G Series RACKtangle System
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
2.4 DNR-12-1G
RACKtangle
Enclosure
This section describes the DNR-12-1G chassis and provides an overview of
common components included in every DNR-12-1G system.
2.4.1 DNR-12-1G
Enclosure
The DNR-12 enclosure is a rigid mechanical structure with complete EMI
shielding (see Figure 2-4 below). Unused slots can be filled with filler panels
(filler panel diagram shown in Figure 2-6).
The DC/DC power module provides output voltages of 24, 3.3, 2.5, 1.5, and 1.2
VDC for the logic/CPU and 8 VDC to power the four cooling fans.

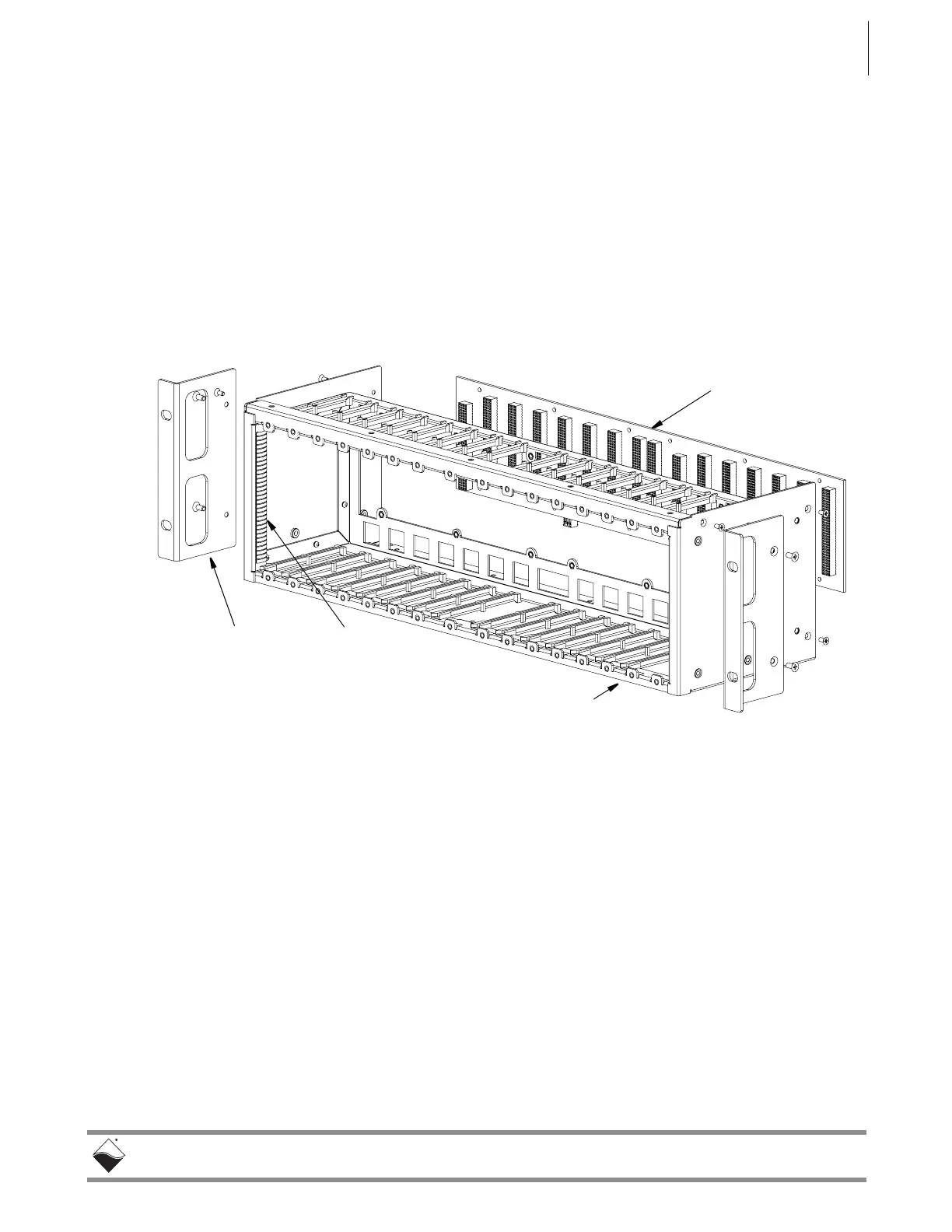

Figure 2-4. Typical PowerDNR DNR-12 Enclosure (Exploded View)
NOTE: Note that the rightmost module (I/O board slot 12) is 2-slots wide (to
accommodate future designs and/or custom modules).
Also note that the DNR-12 enclosure has reversible mounting flanges
designed for rack or surface mounting. Rubber feet are supplied for
desktop or tabletop mounting.
Refer to Section 4.7 on page 56 for more information about mounting
options and field connections.
2.4.2 DNR-12-1G
Enclosure
Common
Components
Each DNR-12-1G chassis contains a power board (DNR-POWER-DC) with
status indicators and an external ON/OFF switch. Each DNR-12-1G chassis
also contains a CPU board with a dedicated GigE CPU and two Network
Interface Control (NIC) ports, one for controlling up to 12 I/O boards mounted in
the enclosure and another for diagnostics functions. Front-loading slots allow
I/O boards to be quickly and easily installed and removed, as needed.
Backplane
Mounting
Brackets (2)
(Reversible for
rack or surface
mounting)
Grounding
Fingers
Add rubber feet (4)
for tabletop mounting
Note: Top/Rear Cover Not Shown
