DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 4 57
Installation and Configuration
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
DNR-6-1G: Except for the width, the DNR-6 enclosure used in a DNR-6-1G
system is compatible with Specification EIA-310-C for 19” Rack Mounting
Equipment and is designed to occupy 3U units of vertical space (where 1U is
1.75”). The physical dimensions of the DNR-6 enclosure are shown below in
Figure 4-14.

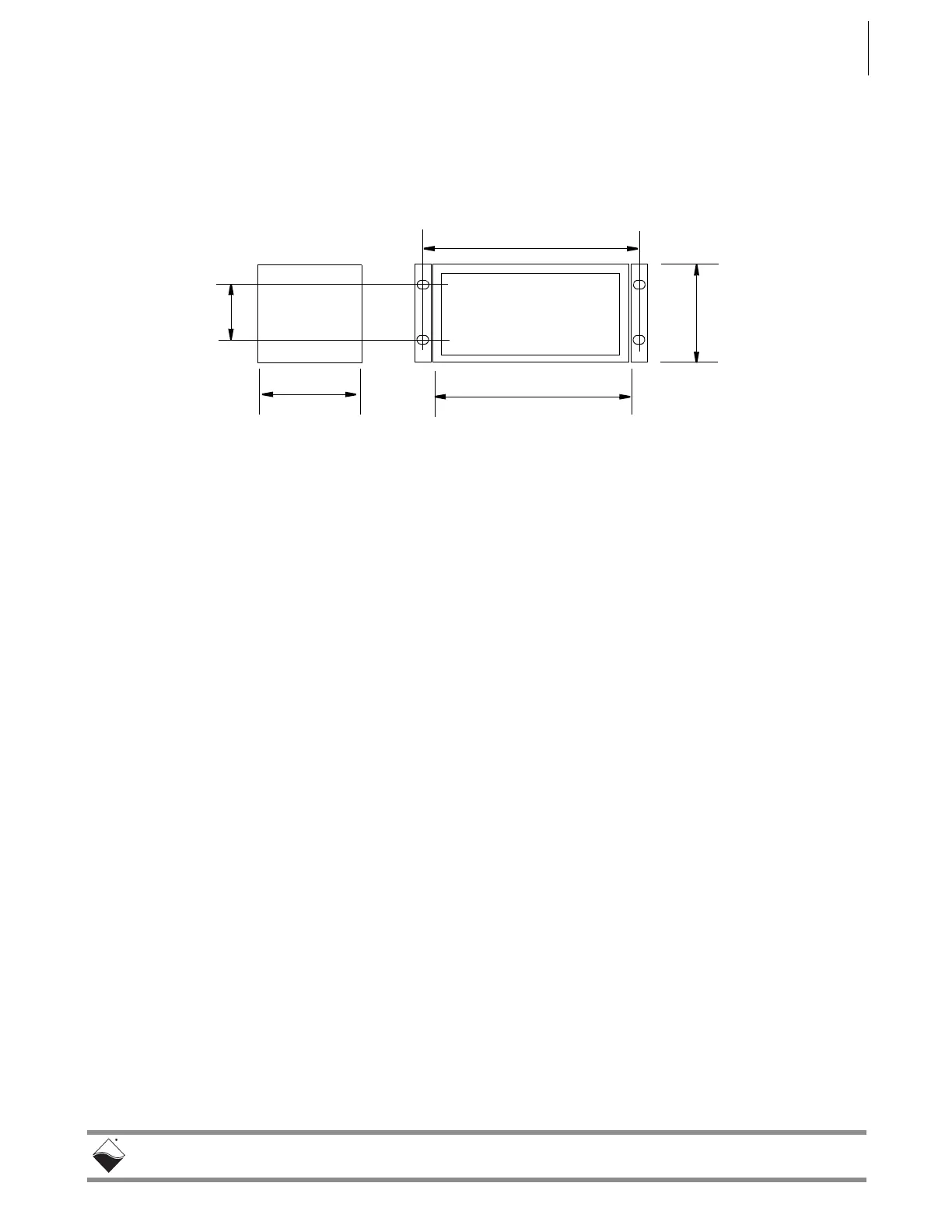

Figure 4-14. Physical Dimensions of DNR-6 Enclosure
10.50 in.
5.23 in.
5.50 in.
11.31 in.
3.50”
Note: For wall mounting, align flanges flush with rear of enclosure.
For rack mounting, UEI recommends using a shelf with
(side view) (front view)
DNR-6-1G systems.
