5.3.3 Analog Input
Board
Settings
This section provides an overview of PowerDNA Explorer settings for analog
input boards. Each type of analog input board will have displays specific to the
features offered with that board. In this section, we use the AI-207 as an
example.
NOTE: Use Network >> Start Reading Input Data to see immediate input
values. Use Network >> Store Config to save values to the board.

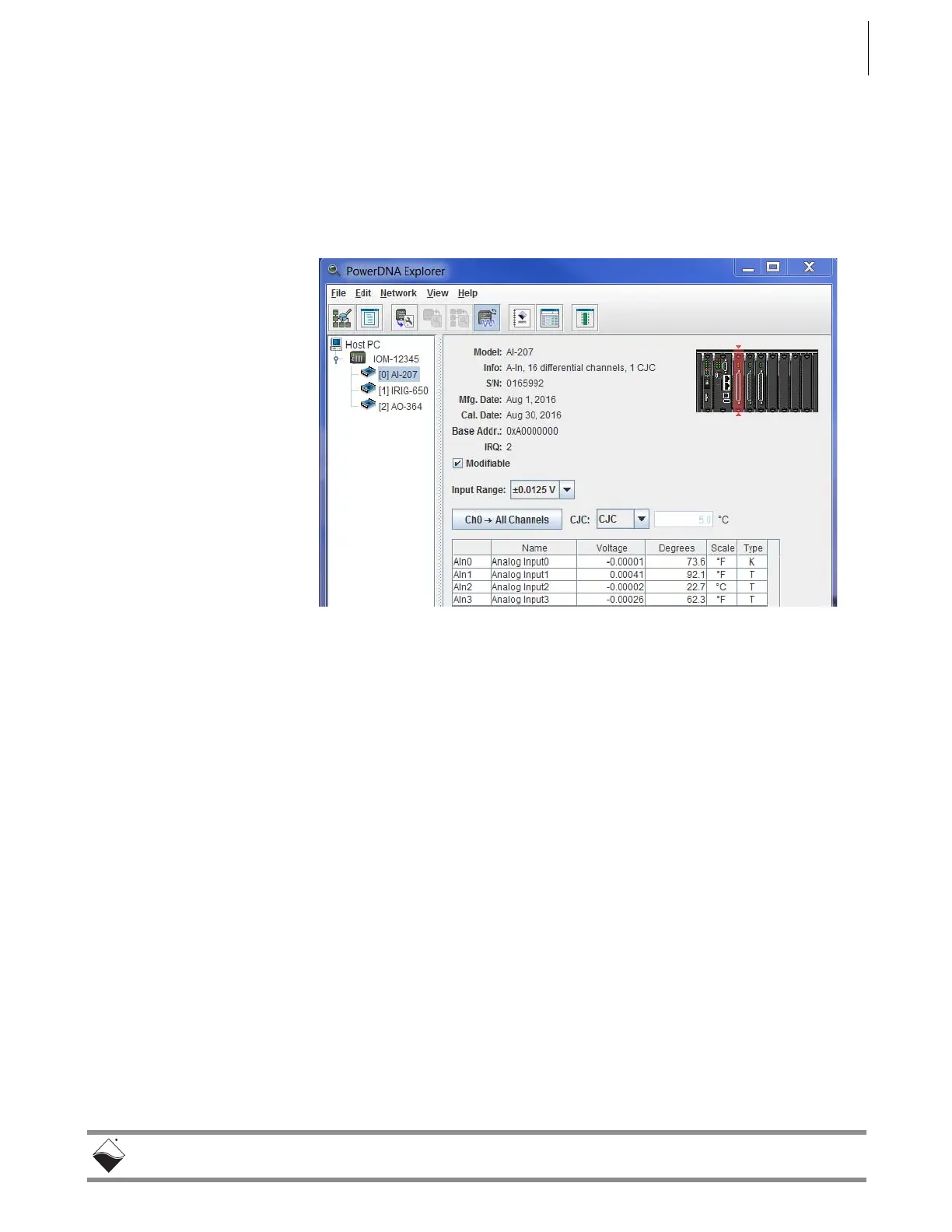

Figure 5-23. Example AI-207 Board
Input Range provides a pulldown menu of the range of expected input voltages
to be measured by the board. On this board, the range can be specified as ±10
V to ±0.0125 V. Note if the actual voltage is outside of the range specified, the
value displayed will clip at the maximum input range value.
The Data table contains the values currently read by the device. The table is
initially blank until you refresh the data by clicking Start Reading Input Data
(refer to Section 5.2.2).
The table for the AI-207 board in this example has the following columns:
•Name is the channel name or a user-defined string.
•Value shows the measured input value.
•Degrees shows the temperature converted from the measured input
value.
•Scale provides a pulldown menu to select temperature scale (°C, °F, °K,
°R) on a per channel basis.
•Type provides a pulldown menu to select thermocouple type (B, C, E, J,
K, N, R, S, T) on a per channel basis.
