DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 5 86
PowerDNA Explorer
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
5.3.2 Analog Output
Board
Settings
This section provides an overview of PowerDNA Explorer settings for analog
output boards. Each type of analog output board will have displays specific to
the features offered with that board. In this section, we use the AO-308 as an
example.
NOTE: Use Network >> Store Config to save values to the board.

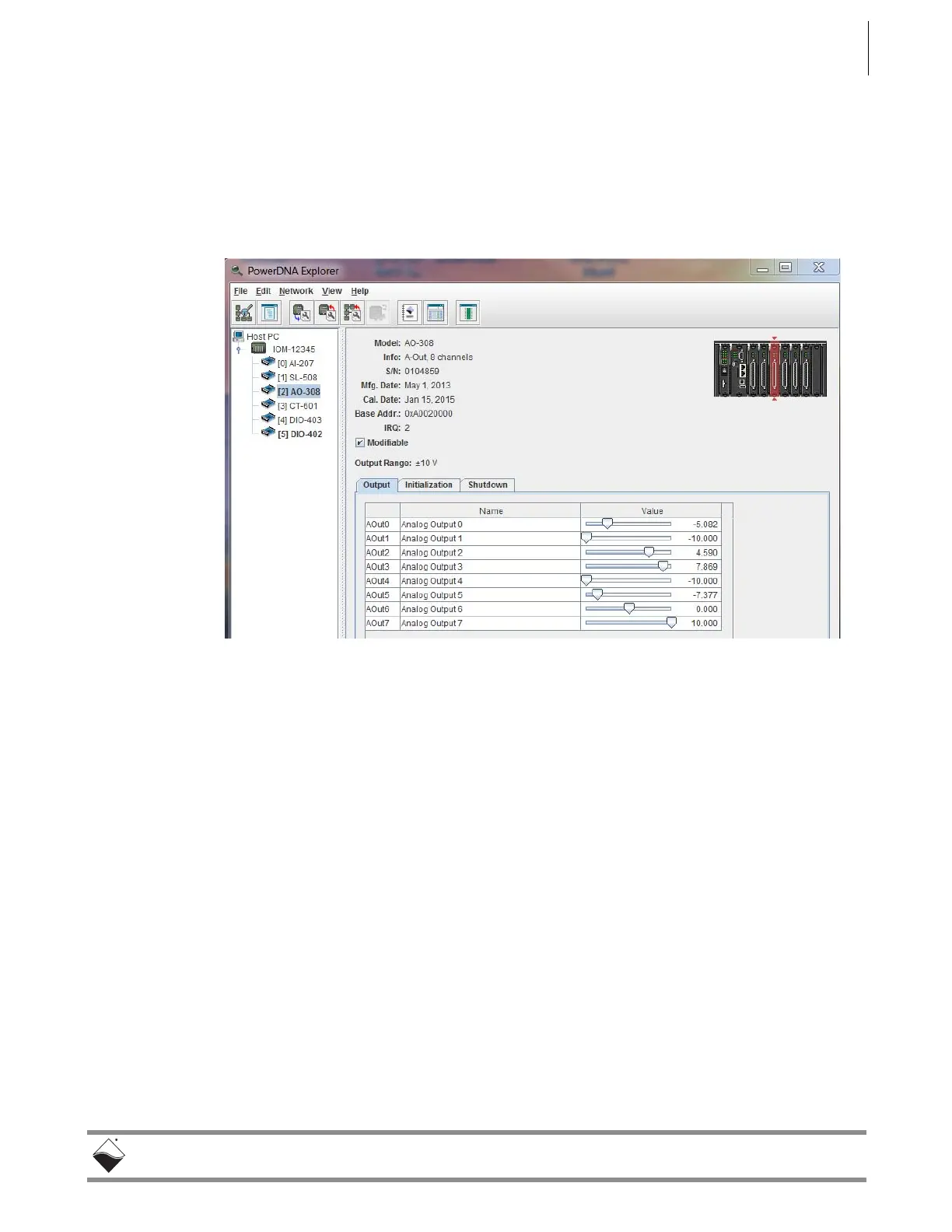

Figure 5-22. Example AO-308 Board
Controls for changing output, initialization, and shutdown values are available
under each of the tabs in the settings panel. You can then choose
Network >> Store Config to apply all changes to the board.
Output Range is displayed above the tabs. In this example, the output range
cannot be changed and is informational only (the AO-308 output range is ±10 V).
On other boards, Output Range is a popup allowing you to choose between
board-supported ranges.
The Initialization and Shutdown tabs contain controls for setting initial and
shutdown states:
•Name is the channel name or a user-defined string.
•Value contains a slider to set the voltage to output for the channel and
the numerical voltage value, which you can input directly.
