DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 4 44
Installation and Configuration
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
4.4 Network
Configuration
If you do not need to connect to a company LAN and have only a single
DNR-X-1G in your system, you can connect it directly to your host as shown in
Figure 4-4 below.

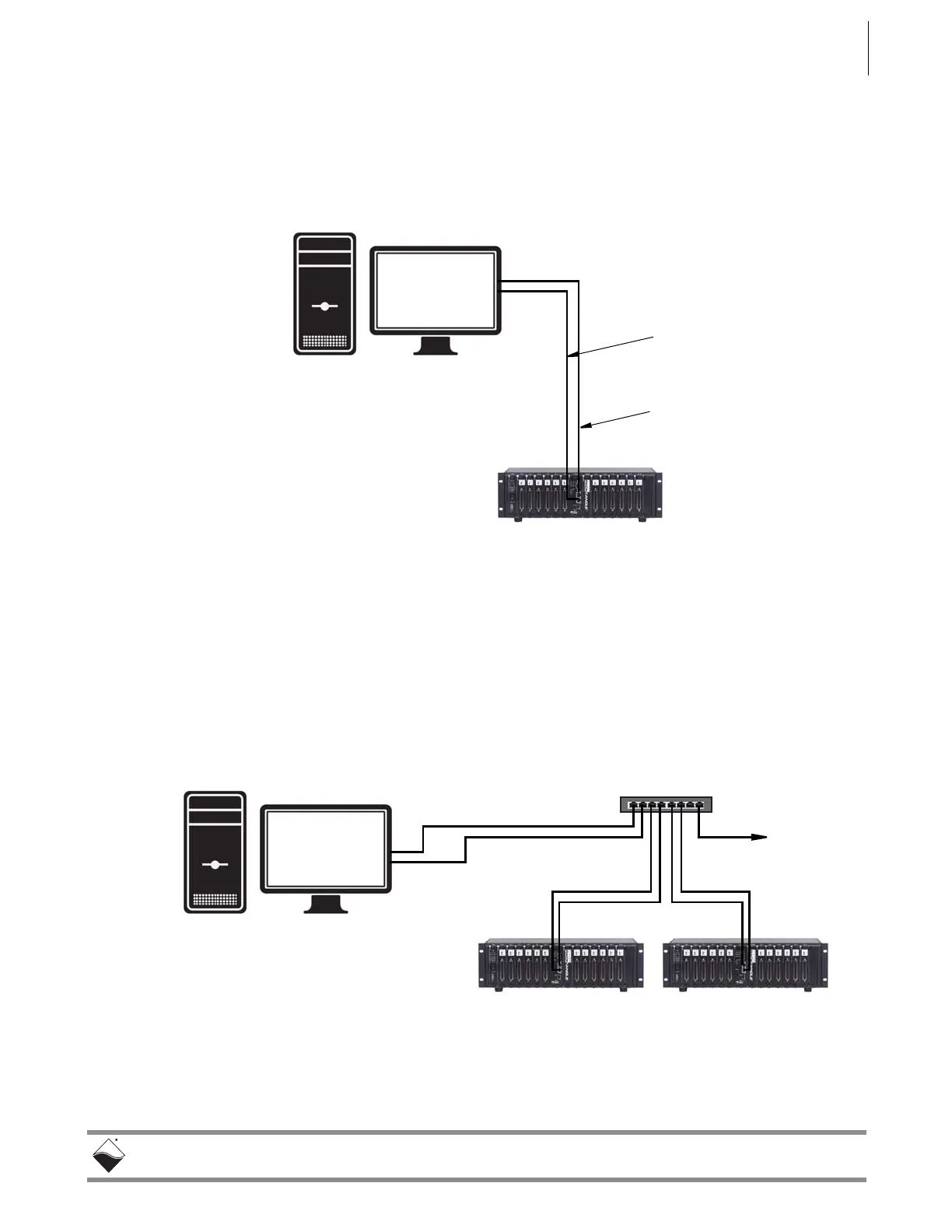

Figure 4-4. Single DNR-X-1G Direct-Connected to Host without LAN
Switch
If connecting to a network, to improve DNR-X-1G network performance, we
recommend that instead of connecting to a company-wide network, you use
separate commercially available network interface controller (NIC) cards and,
where possible, set up a single dedicated mini-network for DNR-X-1G systems
for both operation and diagnostics, as shown in as shown in Figure 4-5 below.
Figure 4-5. Single Network for Operation and Diagnostics Using
DNR Racks and LAN Switch
As an alternative, you can configure two separate networks, one for operation
and one for diagnostic purposes, as shown in Figure 4-6.
NIC1 - 192.168.1.10 (Primary Port)
NIC2 - 192.168.100.3 (Diagnostic
Port)
NIC1 - 192.168.1.10
NIC2 - 192.168.100.3
(Diagnostics)
To Next Page
