5.2.4 Settings Panel The settings panel presents a set of controls that allows you to change the
settings of the device currently selected in the device tree or allows you to view
acquired input data for the device selected.
5.2.4.1 IOM Settings The settings panel provides the following fields when an IOM is selected in the
tree.

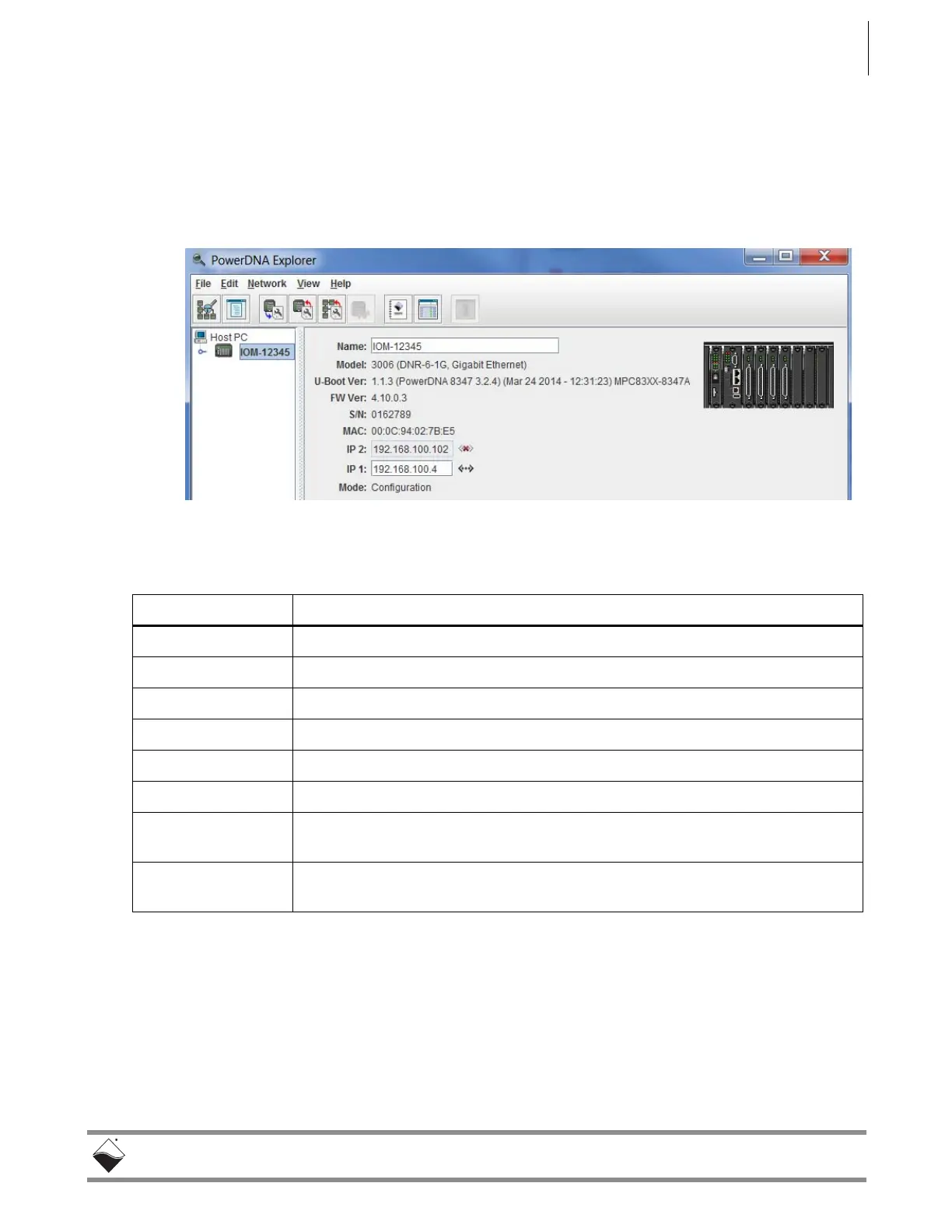

Figure 5-16. Example of IOM Settings Panel for HalfRACK DNR-6-
1G
Field Description
Name shows the IOM name. Users can enter a custom name
Model shows the model number of the IOM.
U-Boot Ver shows the U-Boot version installed on the PowerDNA system
FW Ver shows the version of the firmware installed on the PowerDNA system
S/N shows the serial number of the IOM
MAC shows the MAC address. It cannot be changed and is informational only
IP Address shows the IP addresses of the IOM. IP 1 can be changed. See Section 4.3.3 for
instructions on changing IP 2
Mode shows the mode the IOM is in: Initialization, Configuration, Operation, or
Shutdown.
Table 5-1 Fields and Descriptions for IOM Settings Panel
