DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 5 79
PowerDNA Explorer
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
Each item has an icon indicating whether it is a central controller, IOM (rack or
Cube), or board. The text label for each item is the device's model number,
name, and serial number.
Boards are also labeled with their position number in brackets.

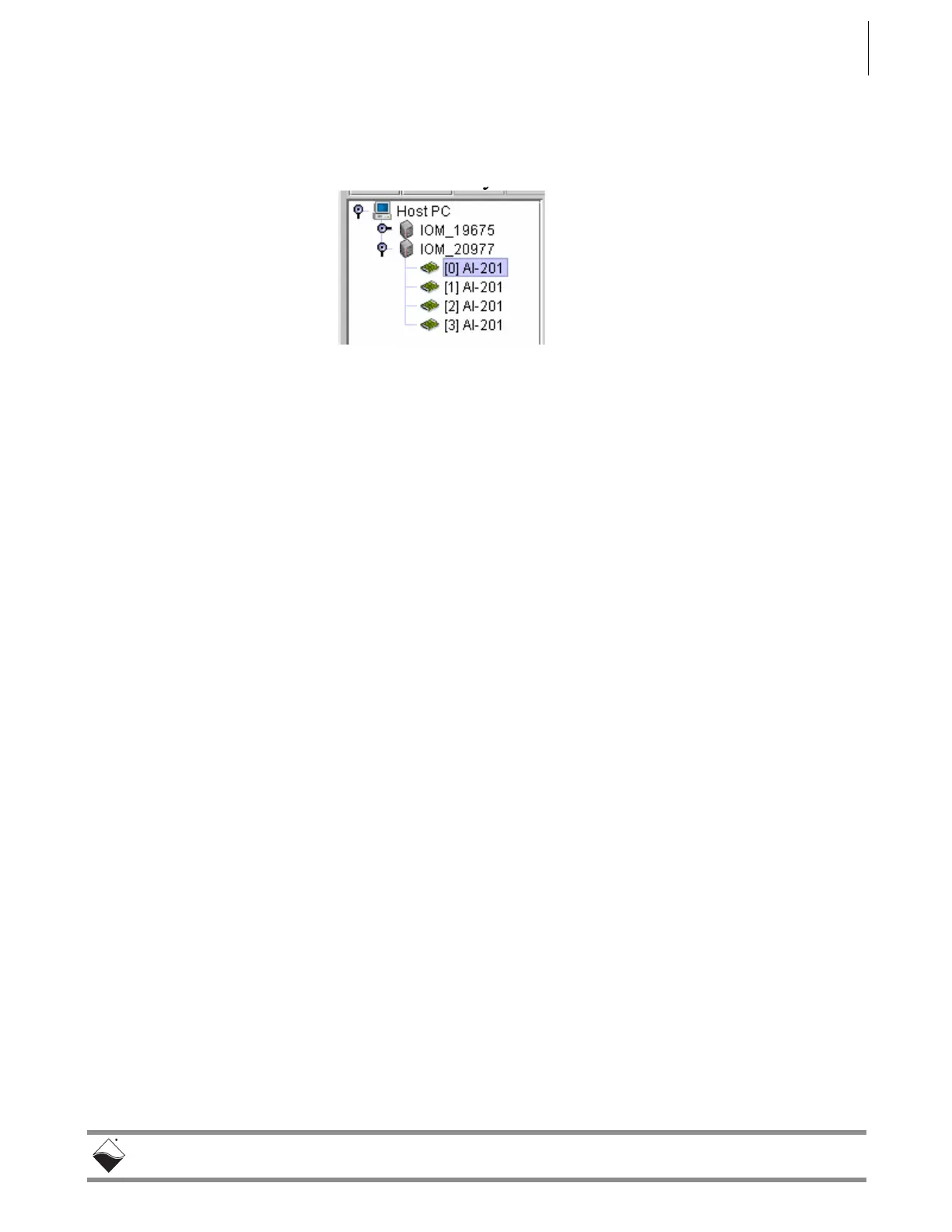

Figure 5-15. Example of the Device Tree
When an item is selected in the tree, the settings panel changes to reflect the
settings for that device. The first time an item is selected, the device is queried
as though you had invoked the Start Reading Input Data command.
On subsequent selections of the same item, the last settings are re-displayed.
Thus, if you made changes but did not write them to the device, the changes are
remembered. Invoking the Start Reading Input Data command will re-read the
device and overwrite the current settings in the settings panel.
Devices whose settings have changed, but have not been written, are displayed
in bold italics in the tree to provide a visual cue. Changed devices that become
missing on a subsequent invocation of Scan Network turn red in the tree.
(Unchanged items that become missing are simply removed from the tree.)
