DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 3 25
The DNR-6-1G Series HalfRACK System
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
Chapter 3 The DNR-6-1G Series HalfRACK
System
This chapter provides the following information about the DNR-6-1G Series
HalfRACK
system:
• PowerDNR DNR-6-1G System Overview (Section 3.1)
• DNR-6-1G Specifications (Section 3.2)
• DNR-6-1G Key Features (Section 3.3)
• DNR-6-1G HalfRACK Enclosure (Section 3.4)
• DNR-6 Power, NIC/CPU, and I/O Boards LEDs & Controls (Section 3.5)
• DNR-6-1G DNR-POWER-DC Module (Section 3.6)
• DNR-6-1G DNR-CPU/NIC Module (Section 3.7)
• DNR-6-1G DNR-IO-Modules (Section 3.8)
• DNR-6-1G DC Power Thresholds (Section 3.9)
NOTE: For the list of product versions available for the DNR-6-1G Series
HalfRACK systems, refer to Section 1.2 on page 3.
3.1 PowerDNR
DNR-6-1G
System
Overview
UEI DNR-6-1G HalfRACK systems are identical to the DNR-12-1G systems
except for the size of the enclosure and the number and order of I/O boards that
can be accepted. All standard DNA- Cube I/O boards are available in
DNR- RACK versions for use in DNR-6-1G systems.

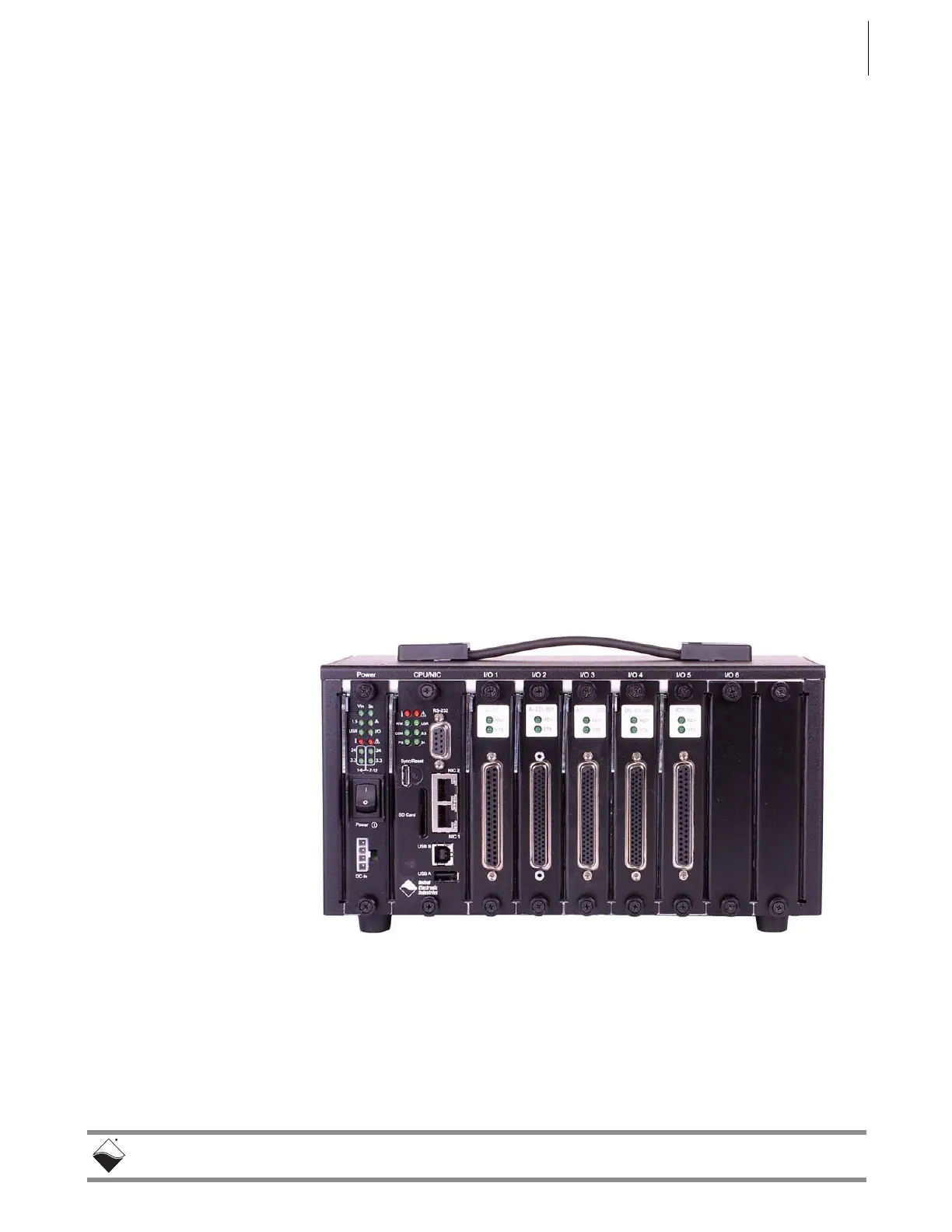

Figure 3-1. Typical DNR-6-1G HalfRACK System
