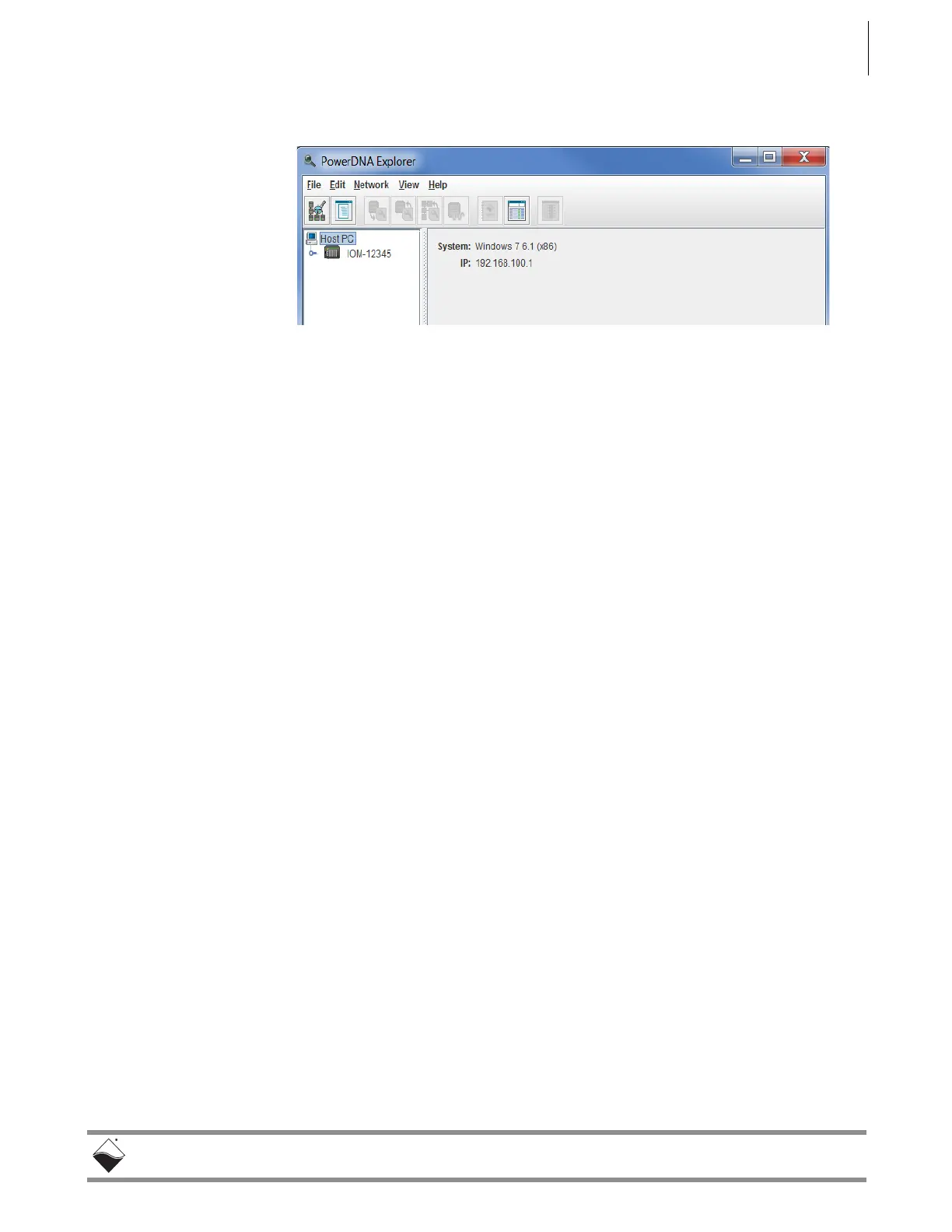

Figure 5-8. After a Network >>Scan Network
In the example shown above in Figure 5-8, after Network >> Scan Network was
clicked, the DNR-X-1G chassis labeled “IOM-12345” was found and displays in
the Device Tree panel.
If you choose Scan Network when the device tree is already populated, any
new devices discovered will be added to the tree. Any existing devices that are
missing will be removed from the tree, unless you have made unsaved changes
to the device's configuration, in which case it will be marked in the tree as
missing.
5.2.1.2.3 Reloading
Configuration
Network >> Reload Config re-reads the configuration of the current device
selected in the Device Tree. If you have made changes to the settings in the
settings panel for the current device, Reload Config will replace those settings
with the current settings for the device, after prompting for confirmation.
5.2.1.2.4 Storing a
Configuration
Network >> Store Config writes the changed settings for the currently selected
device to the device. The button is disabled for devices that haven't been
modified.
5.2.1.2.5 Storing All
Configuration
Network >> Store All Configs writes all of the changed device settings to the
devices. The button is disabled if no devices have been modified.
5.2.1.2.6 Reading Input
Data from I/O
Boards
Network >> Start Reading Input Data is enabled when the currently selected
device is an input device board. It reads the current input values to the device
and displays data read in the settings panel.
5.2.1.2.7 Updating the
Firmware
Network >> Update Firmware… loads a firmware update file to all connected
PowerDNA systems if Host PC is selected. It updates only one chassis when a
specific unit is specified. More information about updating firmware can be found
in “Updating Firmware” on page 50.
Note that writing certain configuration changes to a PowerDNA system will bring
up a password dialog box. PowerDNA Cube and RACK systems come with the
default password set to “powerdna”.
