DNR-X-1G Series RACKtangle and HalfRACK Systems
Chapter 5 78
PowerDNA Explorer
October 2018 www.ueidaq.com
508.921.4600
© Copyright 2018
United Electronic Industries, Inc.
5.2.2 Toolbar The toolbar contains the following buttons:
• Scan Network, Show Hardware Report, Reload Config, Store
Config, Store All Configs (shown in Figure 5-13)
• Start Reading Input Data, View User Manual, Visit Documentation
Download Page, and View Wiring Diagram (shown in Figure 5-14)
Toolbar buttons duplicate the functionality of the corresponding menu items
described in the Menu Bar sections above.

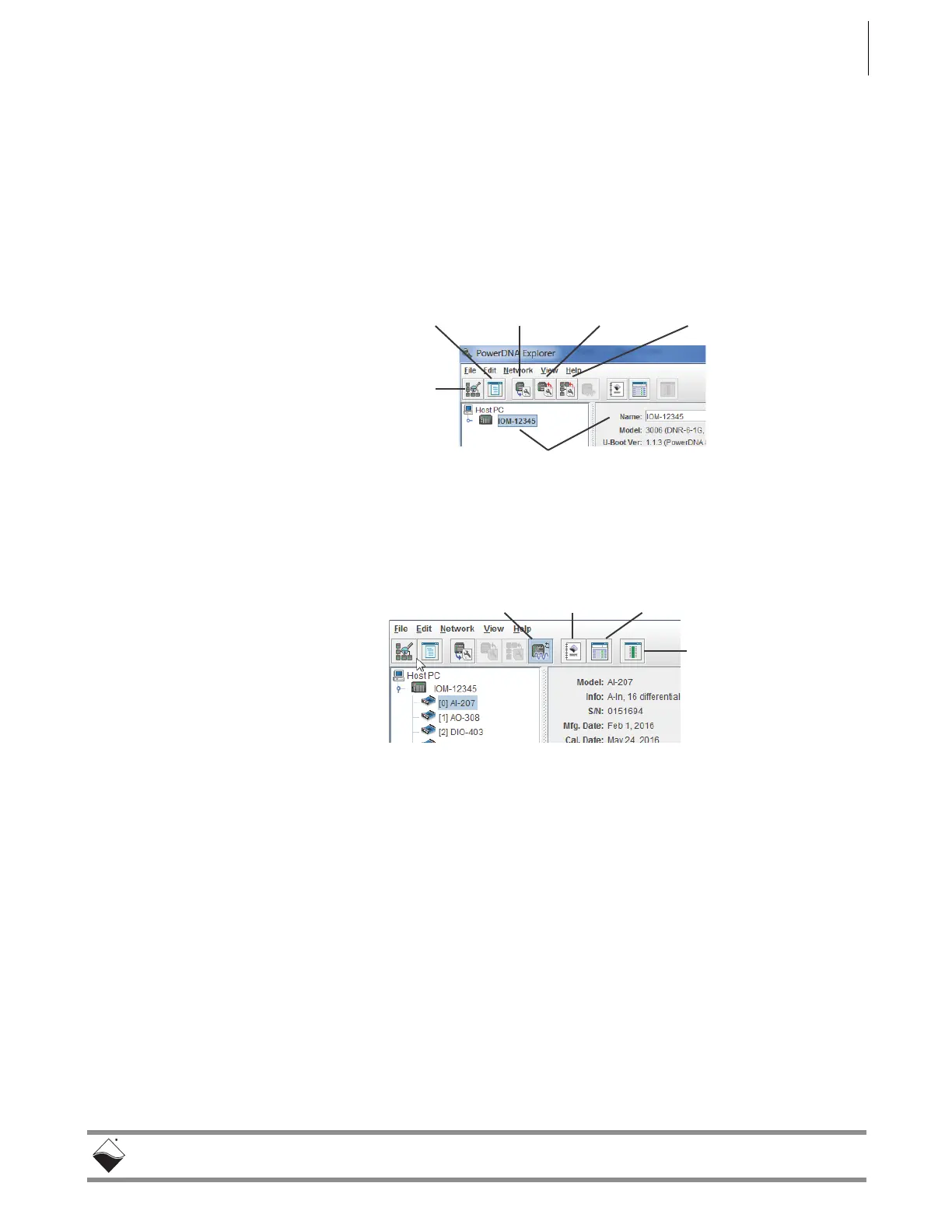

Figure 5-13. PowerDNA Explorer Toolbar Buttons (Config Level)
.
Figure 5-14. PowerDNA Explorer Toolbar Buttons (Board Level)
5.2.3 Device Tree
When the application is first launched, the tree contains a single root item
representing the host computer (see Figure 5-4).
When you select Scan Network from the Network menu or the toolbar, the
device tree is populated with all central controllers, IOMs (racks and cubes), and
device boards accessible from the network, as filtered through the
Network >> Address Ranges dialog.
Central controllers, if any, appear as children of the Host PC item. IOMs that are
connected to the PC without use of a central controller also appear as direct
children of the Host PC item.
Scan
Network
Show Hardware
Report
Reload
Configuration
Store
Configuration
Store Config for
All Devices
IOM (RACK) Name
Start Reading
Input Data
(Live Data)
View User
Manual
View Wiring
Diagram
Visit Documentation
Download Page
