Chapter 5 __________________________________________ Software Configuration and Operation
VAISALA______________________________________________________________________ 103
Connecting to AWS330
To connect your computer to the QML logger serial port, proceed as
follows:
1. Connect the provided maintenance cable to the COM0 connector
on the bottom flange of the enclosure and to an available COM port
on your PC; see Figure 57 below.
1012-210

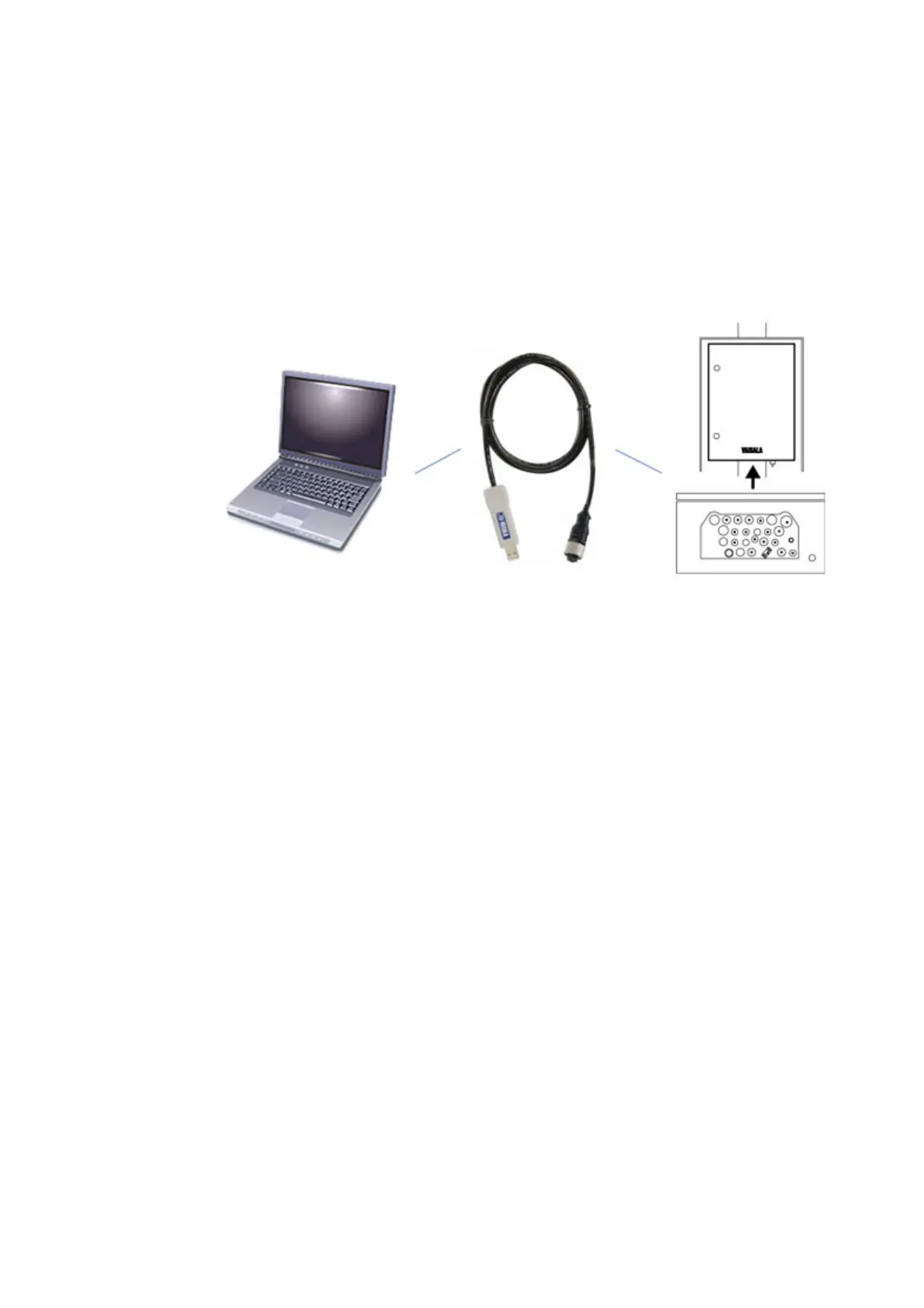

Figure 57 Connecting Maintenance Cable
2. Start AWS Client by clicking the Start button and selecting All
Programs - Vaisala - Vaisala AWS Client.
3. In AWS Client, click File - Connect - select Default - click OK.
