User's Guide ______________________________________________________________________
50 __________________________________________________________________ M211296EN-A
Connecting the First Part of the Mast to
the Pedestal Tube
To connect the first part of the mast to the pedestal tube, install the axle
for the hinge. Take the axle (number 3 in Figure 14 below) from the
plastic bag labeled "Hinge Set".
1. Thread the Allen bolt (4) with the washers to one end of the axle.
2. Lift the first part of the mast (1) end on the hinge and install the
axle.
3. Thread the Allen bolt (4) with the washers to the other end of the
axle and tighten both ends with an Allen key.

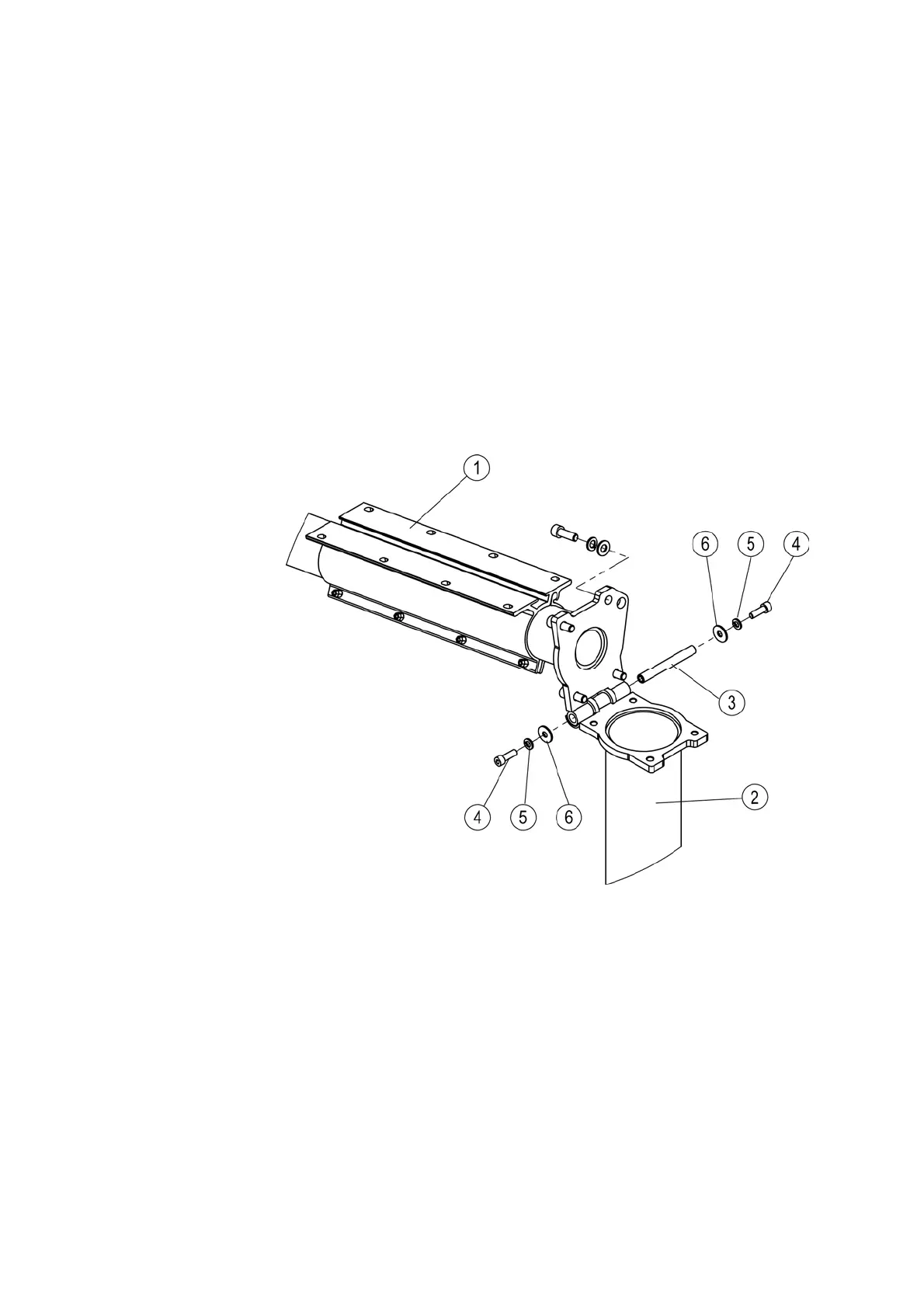

1012-174
Figure 14 Hinge Axle Installation
The following numbers refer to Figure 14 above:
1 = First part of the mast
2 = Pedestal tube
3 = Axle for hinge
4 = Allen bolt M8x25 DIN912 A4, 2 pcs; use Allen key 6 mm
5 = Spring washer B8 DIN127 A4, 2 pcs
6 = Washer A8.4 DIN9021 A4, 2 pcs
