User's Guide ______________________________________________________________________
56 __________________________________________________________________ M211296EN-A
Erecting Mast DKP210
Before erecting the mast, check that all the parts are firmly attached.
Check that the top fastener is secure on the upper end of the mast.
Installing and Using the Winch
It is recommended that you use the easy-to-install winch for erecting the
mast. After use, the winch should be removed and stored to a dry place.
1. Attach the handle (number 2 in Figure 19 below) to the winch.
1012-179

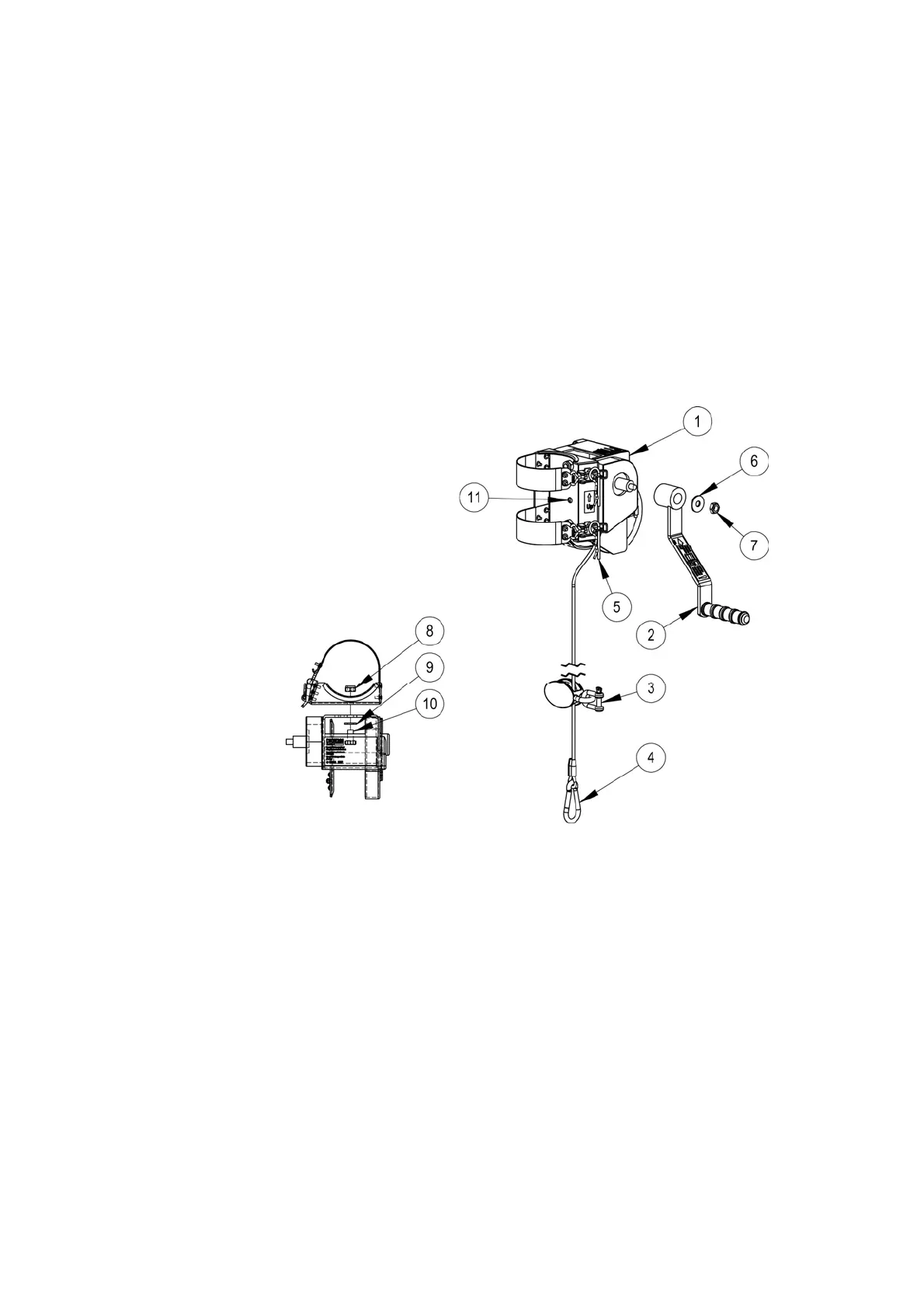

Figure 19 Assembling Winch
The following numbers refer to Figure 19 above:
1 = Winch
2 = Winch handle
3 = Shackle; attach to the lowest part of the mast.
4 = Snap hook; attach to lifting rod
5 = Keen pin, 2 pcs
6 = Washer A10.5 DIN9021 A4
7 = Nut M10 DIN984 A4; use wrench 17 mm
8 = Nut M10 DIN985 A4, 2 pcs; use wrench 17 mm
9 = Washer A10 DIN125 A4, 2 pcs
10 = Bolt A10 DINM10x20 DIN933 A4, 2 pcs; use wrench
17 mm
11 = Alignment hole for mast installation
