Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 53
Connecting the Guy Wires to the Mast
1. Install the clamps (numbers 1 in Figure 17 below) with the washers
and Allen bolts (4, 5) around the narrowing of the mast (2), 1 m
from the top.
2. Aim the clamps assembly so that the snap hook (7) of detachable
guy wire 1 (6) points upward when the mast is tilted.
3. Tighten the Allen bolts.
1012-176

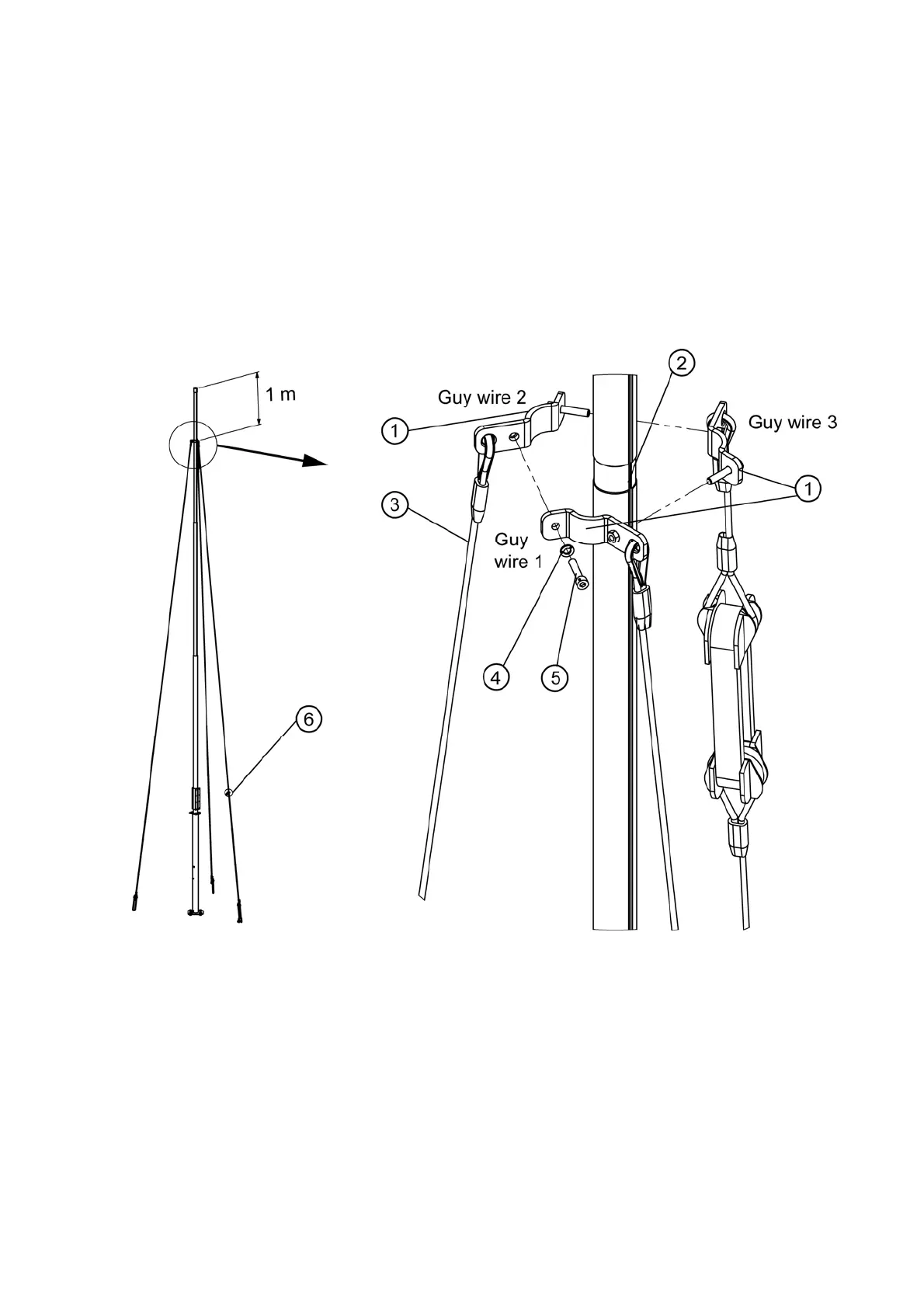

Figure 17 Connecting Guy Wires to the Mast
The following numbers refer to Figure 17 above:
1 = Clamps
2 = Narrowing of the mast
3 = Guy wire
4 = Washer B8 DIN127 A4, 3 pcs
5 = Allen bolt M8x40 DIN912, 3 pcs; use Allen key 6 mm
6 = Guy wire 1 with the snap hook
