User's Guide ______________________________________________________________________
96 __________________________________________________________________ M211296EN-A
Preparing GSM/GPRS Modem
GSM/GPRS modem provides wireless telemetry for AWS330. The
modem is housed inside the electronics enclosure. Insert the SIM card
into the retractable slide on the modem (number 3 in Figure 52 below).
1011-005

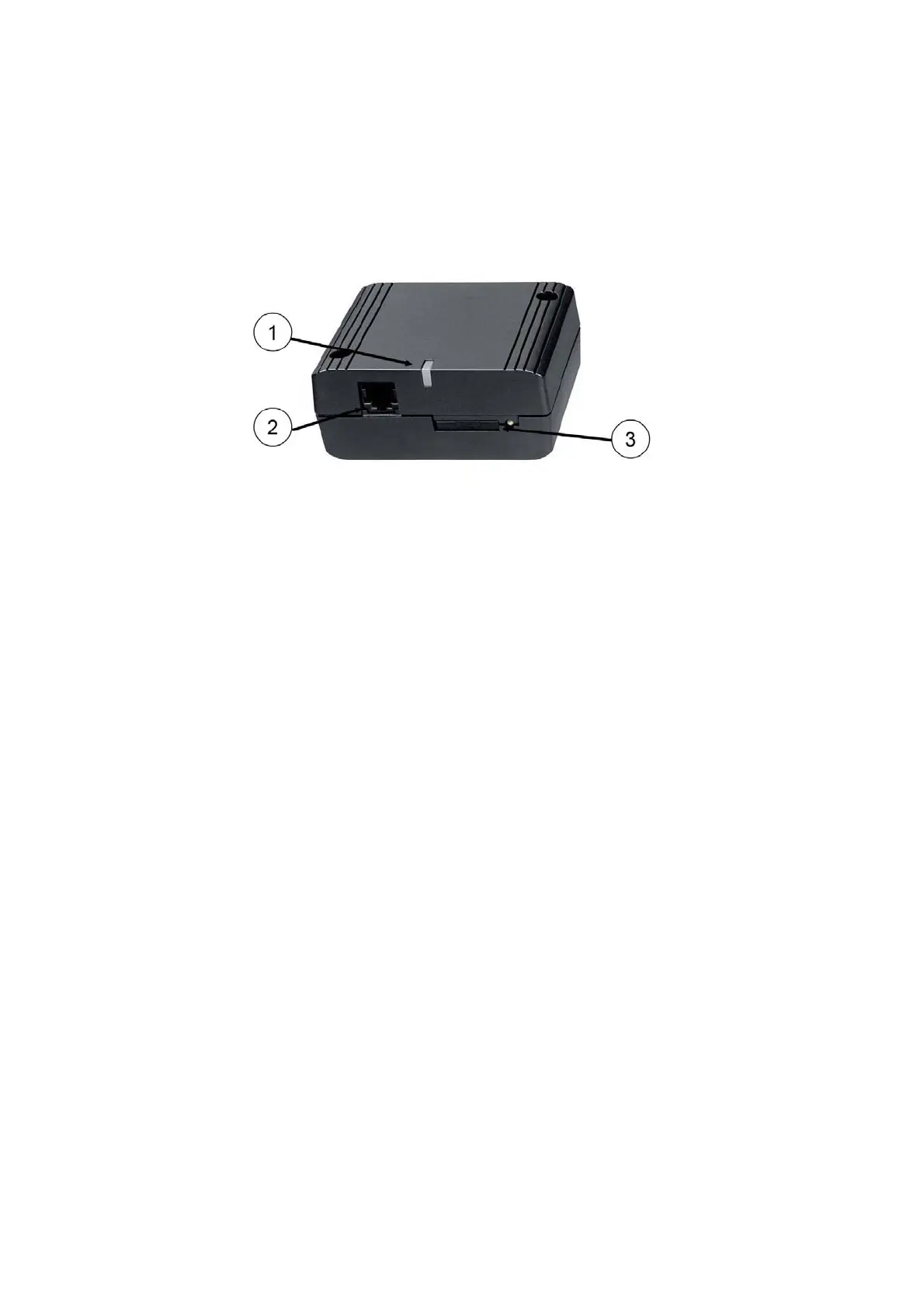

Figure 52 GSM/GPRS Modem
The following numbers refer to Figure 52 above:
1 = Indicator LED
2 = Power cable connector
3 = Slot for SIM card
Configuration of GSM/GPRS telemetry is described in Chapter 5,
Software Configuration and Operation, on page 101, and installing
GSM/GPRS antenna on the mast is described in section Installing
GSM/GPRS Antenna on page 72.
