Chapter 5 __________________________________________ Software Configuration and Operation
VAISALA______________________________________________________________________ 105
Establishing a Connection
You can establish a connection with the QML logger by clicking the
Open connection button or from the menu File - Connect. This will
open a new window shown in Figure 59 below.
1101-015

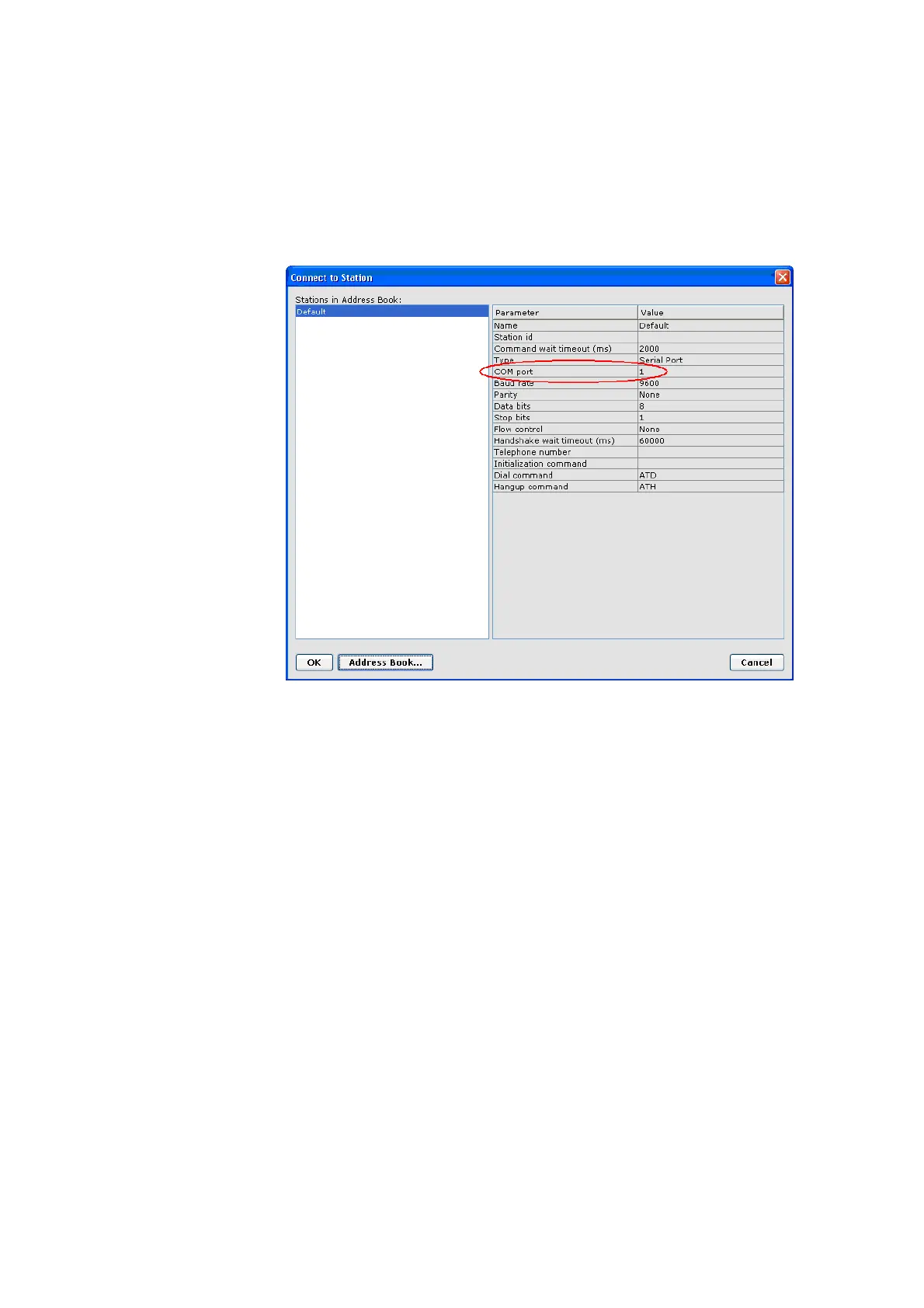

Figure 59 Establishing Connection
This window displays the connection parameters for the default
connection. (You can add more connections. See section Using Address
Book on page 138.) Note that in the default connection, the COM port is
set to 1 as default. You need to check that this matches the assigned por
t
as described in section Installing USB Driver on page 102 and change it
when necessary.
To change the COM port in the connection param
eters, click Address
Book and a new window opens.
