Operating Local LCD Display QMD202
The optional Local LCD display QMD202 provides views for instant
measurements and basic system information. QMD202 is located inside
the enclosure. Navigate between the views by pressing the buttons on the
display.
NOTE
QMD202 is an optional device in AWS330 configuration, and is present
as ordered.
In addition to measured values, all observation displays contain
corresponding sensor status in the rightmost column. For sensor status
values, see section Sensor Status List on page 293.

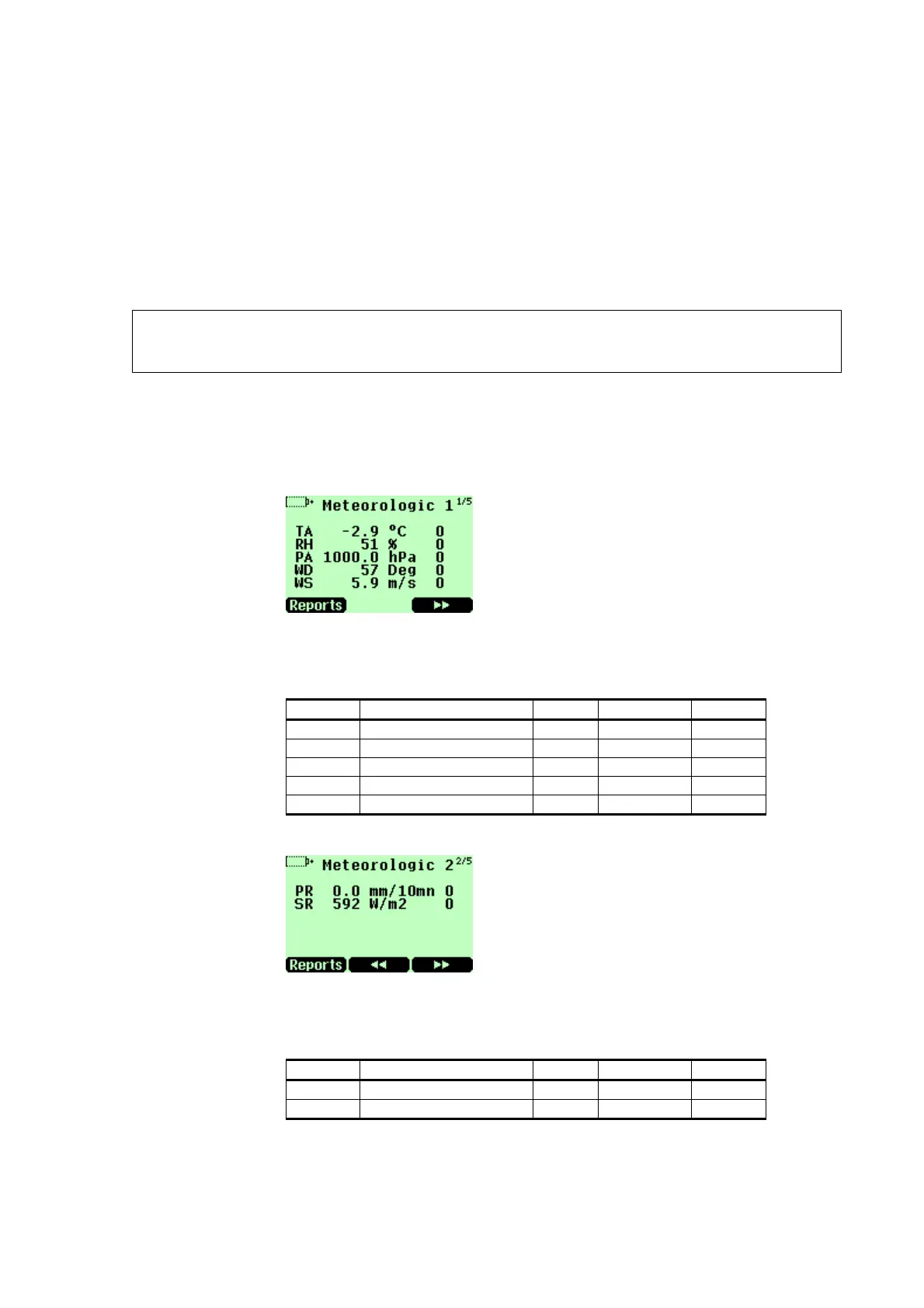

1011-007
Figure 100 Meteorological Display 1
Table 44 Meteorological Display 1 Parameters
Heading Parameter Unit Statistic Period
TA Air temperature °C Average 1 min
RH Relative humidity % Average 1 min
PA Barometric pressure hPa Average 1 min
WD Wind direction Deg Average 10 min
WS Wind speed m/s Average 10 min
1011-008
Figure 101 Meteorological Display 2
Table 45 Meteorological Display 2 Parameters
Heading Parameter Unit Statistic Period
PR Precipitation mm Sum 10 min
SR Solar radiation W/m2 Average 1 min
To Next Page
