User's Guide ______________________________________________________________________
112 _________________________________________________________________ M211296EN-A
Common Parameters
The dialog presented in Figure 62 below contains the essential
parameters for an operational station.
1011-014

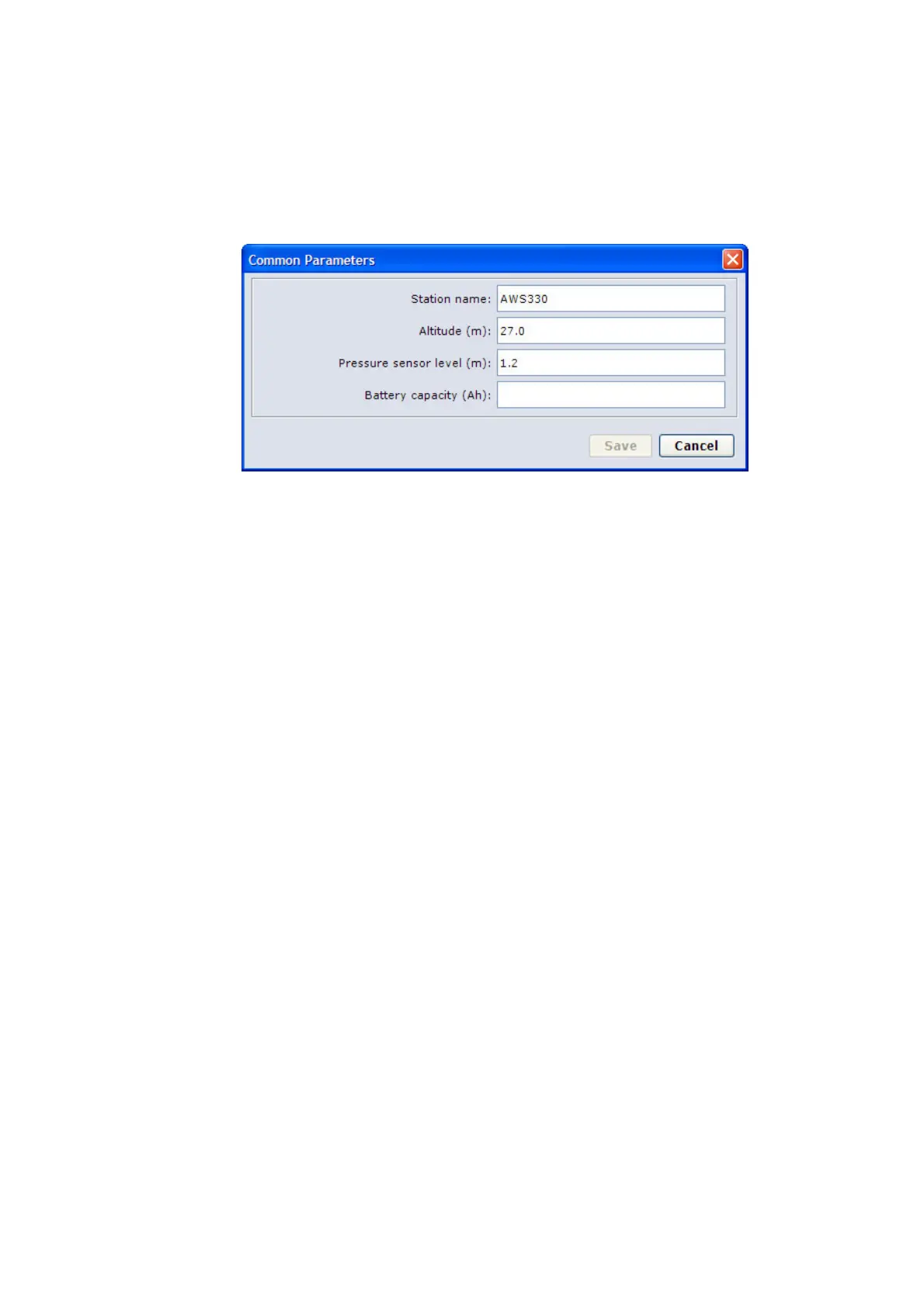

Figure 62 Common Parameters Dialog
To set the common parameters:
1. Open menu Settings - Parameters - Common.
2. Enter Name for the station. Do not use spaces or special characters
in the station name.
3. Enter station Altitude in meters from mean sea level. This setting
is needed only if the station provides measurement for barometric
pressure.
4. Enter Pressure Sensor Level in meters from ground. This is the
bottom flange height from ground. This setting is needed only if the
station provides measurement for barometric pressure.
5. Parameter Battery Capacity is not used by AWS330, and has no
effect.
6. Press Save to store the settings and close the dialog.
