Mount the batteries inside the enclosure on the subframe as shown in
Figure 51 below:
1. Hook the straps (number 3 in Figure 51 below) onto the subframe
(5).
2. Position the batteries (4) under the straps.
3. Tighten the straps onto the front side of the subframe using the
screws (2) and the spring washers (1).
4. Refer to section Powering Up the System on page 99 before
connecting the batteries.
WARNING
Do not connect the batteries until AWS330 is ready for powering. See
instructions on powering and battery wiring in section Powering Up the
System on page 99.
1012-198

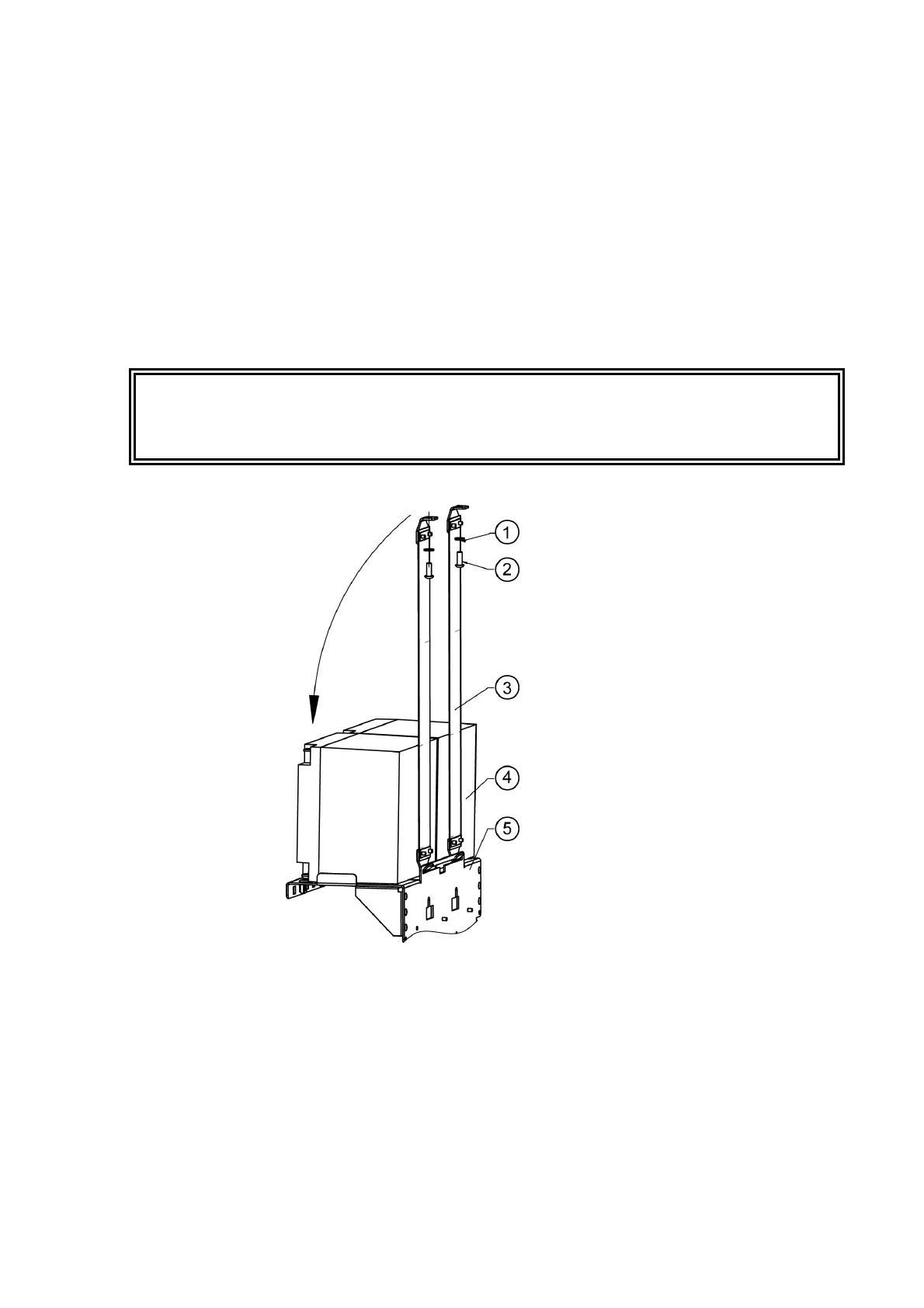

Figure 51 Attaching Strips over Battery
The following numbers refer to Figure 51 above:
1 = Spring washer B6 DIN127 A4, 2 pcs
2 = Screw M6x25 ISO7380 A4, 2 pcs; use Allen key 4 mm
3 = Battery strap, 2 pcs
4 = Battery 26 Ah, 2 pcs
5 = Subframe
