3. In the file dialog, select the destination file where the parameters
are to be stored to. The file has XML format, so using extension
.xml is preferred.
0906-065

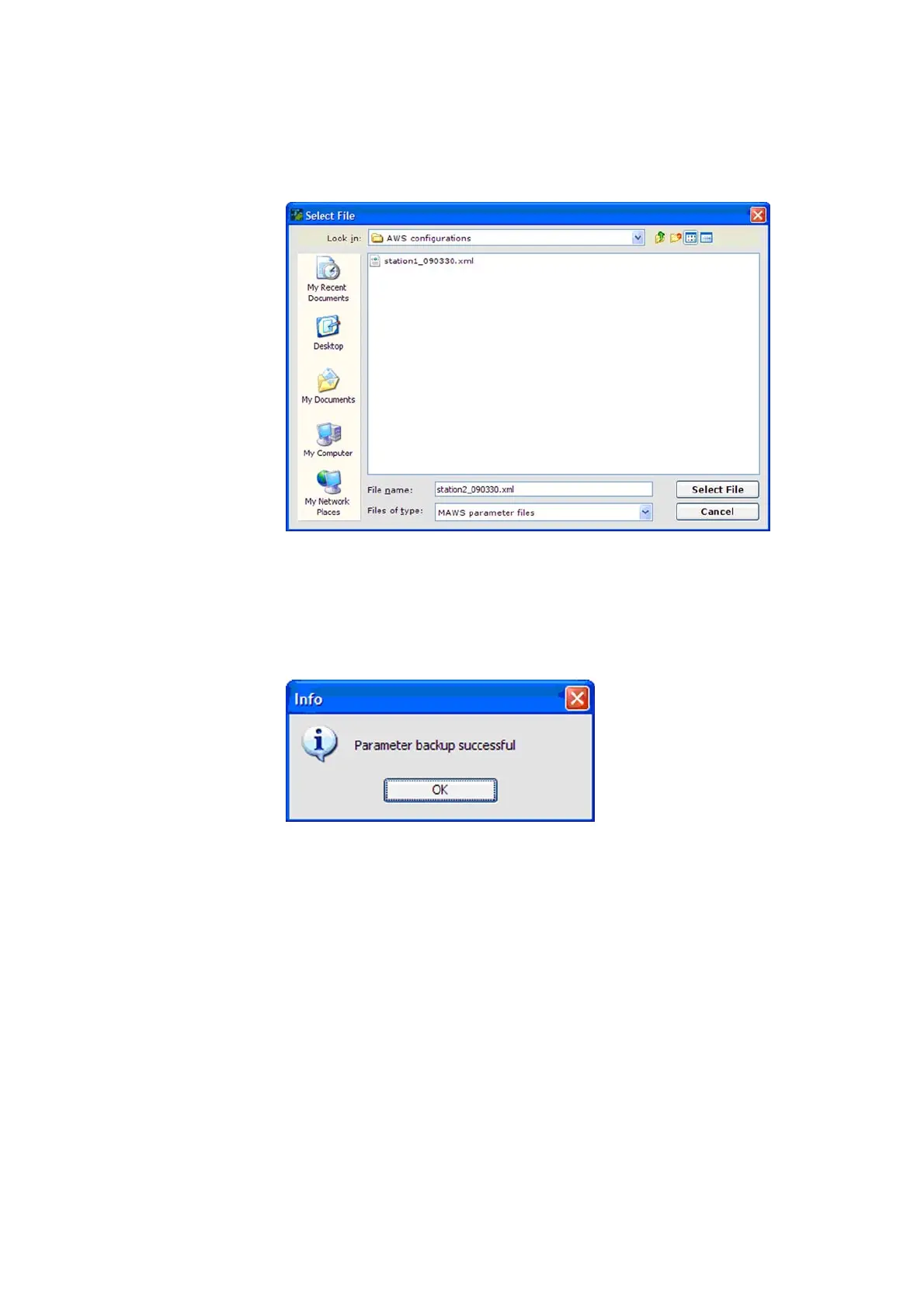

Figure 89 Selecting File for Station Settings Backup
4. Click Select File to start the backup.
5. A file download progress dialog appears, and the backup is
complete when AWS Client displays the following window:
0906-066
Figure 90 Parameter Backup Completed
To restore station settings backup with AWS Client, proceed as follows:
1. Establish connection to the QML logger.
2. Open the Settings menu and choose Parameters and Restore to
logger.
