10. Sensor specifications
For the specifications of the PR‑23‑SD sensor for Safe‑Drive system, see PR‑23‑SD
specifications (page 170) and Transmitter parts list (page 225).

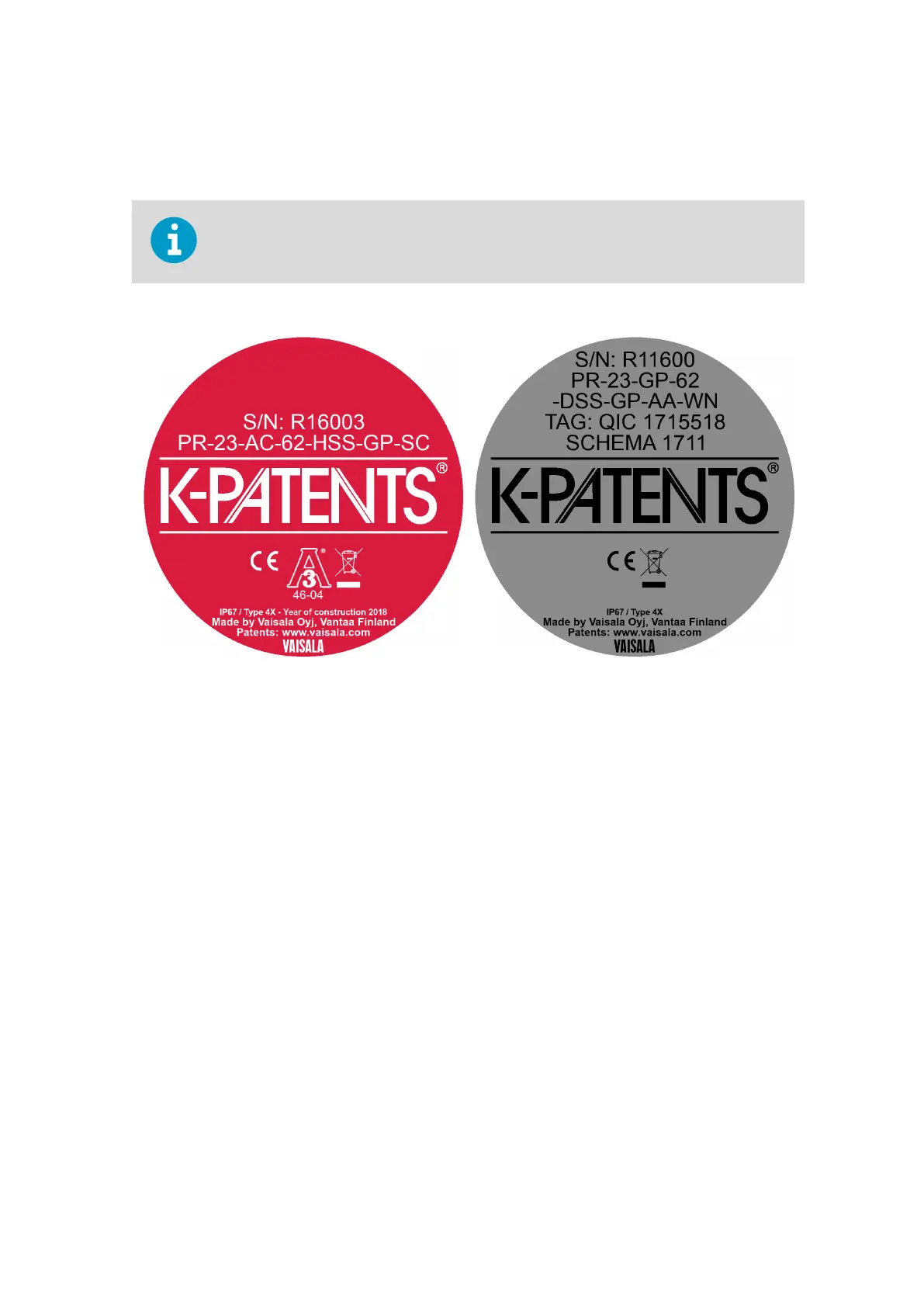

Figure 49 Sensor nameplates
10.1
Sensor compatibility
Electrically: All PR‑23 sensors are interchangeable. The PR‑23 sensors are not
interchangeable with the PR‑01 and PR‑03 range sensors. Furthermore, PR‑23 sensors are
not compatible with the PR‑01 / PR‑03 indicating transmitter IT‑R.
Mechanically: The sanitary process refractometer PR‑23‑AC‑62‑HSS fits the same 2.5 in
sanitary process connection as the sanitary refractometer PR‑03‑A62‑HSS.
10.2
Sensor rangeability
The standard refractive index range of a PR‑23 sensor is 1.320 … 1.530 (corresponds to
0 … 100 Brix), shown in the following figure.
Chapter 10 – Sensor specifications
99
