PROC ESS INSTRUMENTS
POW E R
Fiber
Media
converter
Media
converter
Check media
converter manual
for Ethernet
cable type

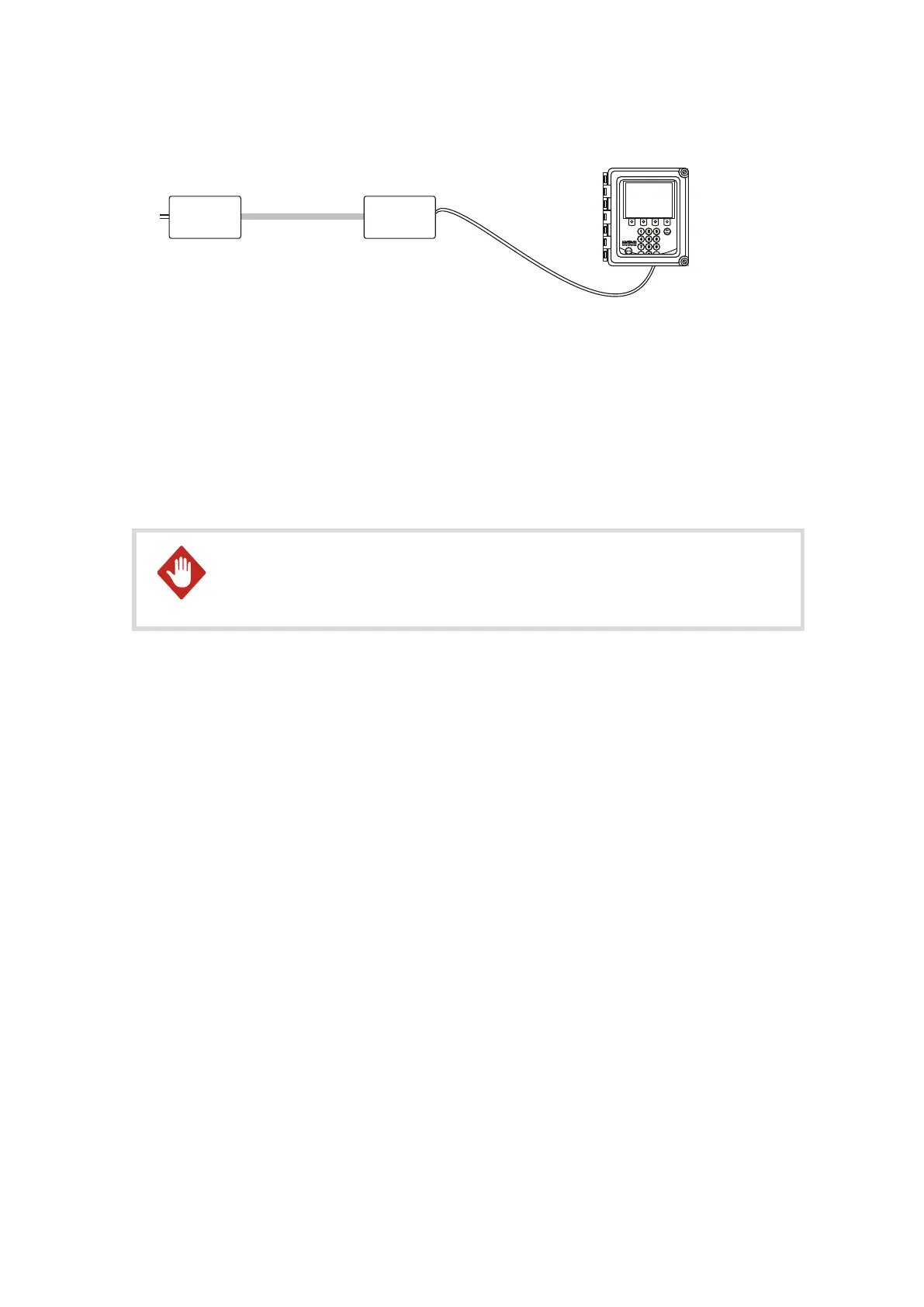

Figure 124 Using fiber optics Ethernet
15.1.2
Connecting Ethernet cable
To connect the Ethernet cable to the DTR, open the DTR’s enclosure cover, loosen the front
panel screw and open the front panel. The Ethernet connector is behind the front panel, see
the following figure. Plug one end of an appropriate Ethernet cable into the connector. Plug
the other end into your PC/LAN socket/hub/switch/access point.
While it is possible to connect and disconnect the Ethernet cable when
the DTR is powered on, for your safety we recommend that you turn o the power by
using the external power switch before opening the DTR’s front panel.
WARNING!
Chapter 15 – Ethernet connection specification
229
