Vaisala PR-23 Series User Manual

Table 48 Flow cell for PR‑23‑MS specifications
Feature Specification
Process connection Thread G ½ in or ½ in NPT female
Process pressure Max. 10 bar (145 psi)
Process temperature Max. 130 °C (266 °F)
Process wetted parts, standard Teflonâ (PTFE) or Kynarâ (PVDF), prism gaskets MTF
(Modified Teflonâ), sapphire prism, O‑ring Kalrez,
adaptor sapphire
10.8.6 PR‑23‑MS parts list
8
35
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
27
32
Item
Pcs.
Part No.
Descrip�on
1
4
Screw DIN 7991 M5x70 A4
2
1
PR-23-MS endplate
3
1
PR-9129-EC
PR-23-MS protec�on cover
4
1
Screw DIN 912 M4x10 A4
Item
Pcs.
Part No.
Descrip�on
5
1
PR-9120
PR-03/23-M-PV-R05 flow cell (PVDF)
*
1
PR-9010
Disc spring set
5
1
PR-9121
PR-03/23-M-TF-R05 flow cell (PTFE)
20
2
Disc spring
6
1
PR-9252
O-ring 20.2 x 3 Kalrez 6375UP
21
1
Disc spring holder
7
6
Screw M4 x 20 DIN 7991 A4
22
6
Screw DIN 912 M5x12 A2
8
1
PR-03/23-M headring (PVDF)
23
1
PR-10103
Sensor processor card
9
1
PR-9112
O-ring seal 30.3 x 2.4 FPM
24
4
Screw M3x6 DIN 912 A2
10
1
PR-9126
Sapphire plate for PR-03/23-M
25
4
Screw M3x6 DIN 912 A2
11
1
PR-9113
O-ring seal 37.3 x 3 FPM
26
1
PR-10300
Bus terminator card
12
1
PR-9100-EC
MS Sensor support
27
1
PR-9108
Dryer sachet
13
1
PR-11101-EC
PR-23-MS head
28
1
PR-10032
O-ring seal 24 x 2
14
1
PR-10048
68x3 O-ring
29
1
PR-10000
PR-23 cover
15
1
Alignment pin
29
1
PR-10000-EC
PR-23-EC cover
16
1
PR-10005
PR-23 base
30
4
Screw M4x30 DIN 912 A4
16
1
PR-10005-EC
PR-23-EC base
31
1
PR-10002
O-ring seal 82x3
17
6
Screw M5x12 DIN 912 A2
32
1
Cable gland M16x1.5
6
Locking spacer M5
33
1
PR-23-M endplate with label
18
1
PR-10036
PR-23 compact sensor CORE module
34
4
Screw M4x8 DIN 964 A4
19
1
PR-9011
Thermal conductor
35
1
PR-10031
O-ring seal 89.5 x 3

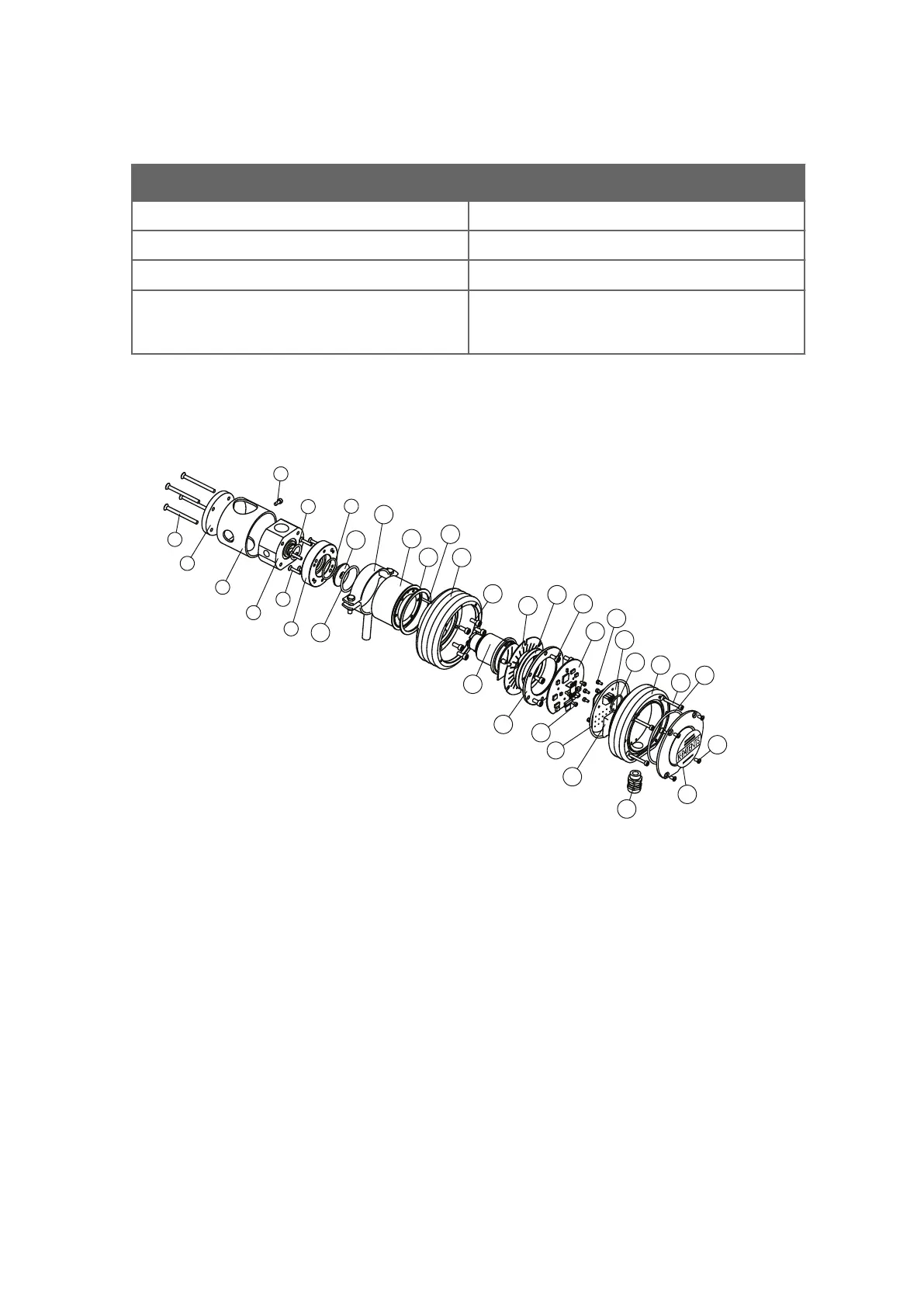

Figure 80 PR‑23‑MS parts list
