Vaisala PR-23 Series User Manual

45
A
B
B
B
C
D
Section A-A
Scale 1:2
Section B-B
Scale 1:2
AFC-H10/H15-RI-NC AFC-H10/H15-SI-NC

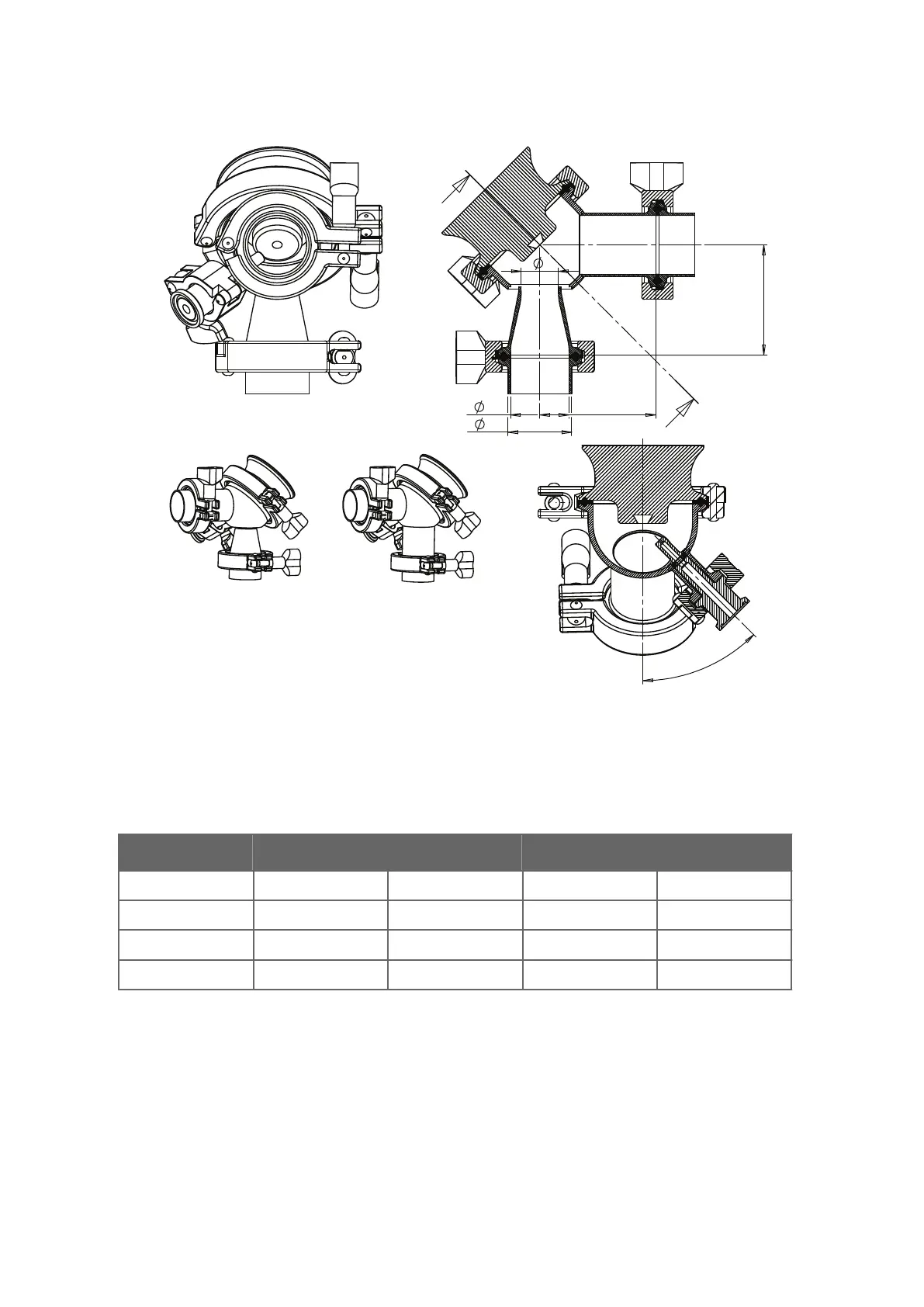

Figure 55 Flow cell AFC‑HS
S‑ with wash nozzle connection (‑NC) H10 for pipe diameter 1 in
(25 mm) and H15 for pipe diameter 1.5 in (40 mm)
Flow cell type A B C D
AFC‑H10‑RI‑NC 16 mm [0.630 in] 22.6 mm [0.890 in] 25.6 mm [1.008 in] 50.8 mm [2 in]
AFC‑H10‑SI‑NC 22.6 mm [0.890 in] 22.6 mm [0.890 in] 25.6 mm [1.008 in] 50.8 mm [2 in]
AFC‑H15‑RI‑NC 22.6 mm [0.890 in] 35.6 mm [1.402 in] 38.6 mm [1.520 in] 70.3 mm [2.768 in]
AFC‑H15‑SI‑NC 35.6 mm [1.402 in] 35.6 mm [1.402 in] 38.6 mm [1.520 in] 70.3 mm [2.768 in]
PR-23 Series User Guide
IM-EN-PR23-E
110
