Vaisala PR-23 Series - Keyboard Functions; Figure 24 DTR Keyboard and Main Menu for Sensor B

6.2.1 Keyboard functions
Number keys: The 10 number keys, minus sign, and decimal point are used to enter
numerical par
ameters. They are also used for menu selections.
ENTER key: The ENTER key is used to implement the selected (highlighted) menu command
or to accept an entered value.
BACK key: The commands are arranged into a decision tree, the BACK key is used to move
one step backward to the preceding display. It is also used to erase or cancel a numerical
input.
Soft keys: The meaning of the soft key is shown on the display immediately above the key.
The figure below gives an example the soft key functions, from left to right:
1. SENSOR A: Switch to corresponding menu for Sensor A.
2. Arrow down: Move one step down in the menu.
3. Arrow up: Move one step up in the menu.
4. SELECT: Select the highlighted command (equivalent to pressing ENTER).
INSTR UMENTS
P O W E R

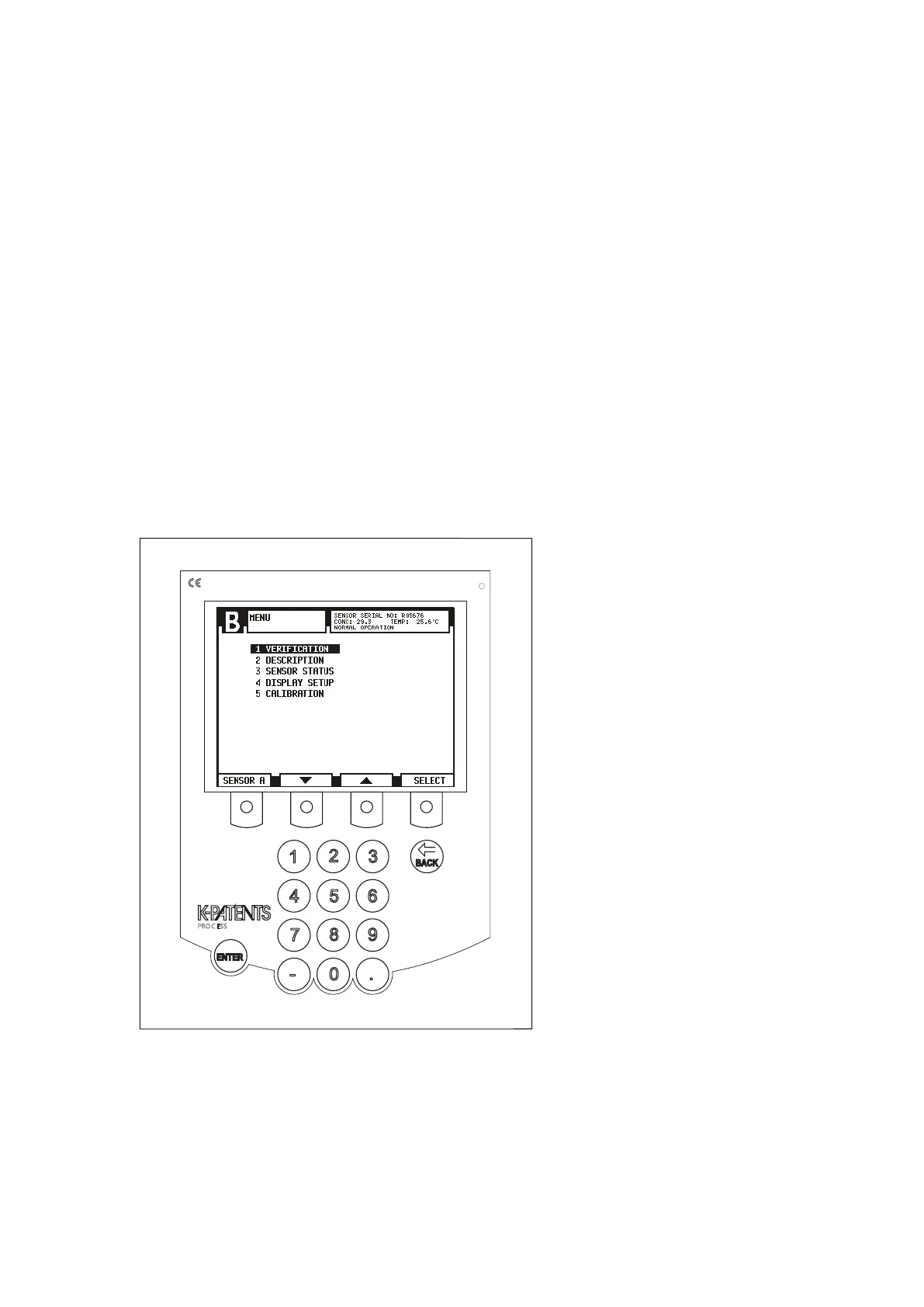

Figure 24 DTR keyboard and Main menu for sensor B
