Vaisala PR-23 Series User Manual

Feature Specification
Sensor protection class IP67, Nema 4X
Protection class Protection class 3
Sensor weight 3.0 kg (6.6 lbs)
10.4.4 PR‑23‑AP parts list
1
2
3
4
5
6
7
8
24
9
10
11
8
12
13
13
14
15
16
17
18
23
19
20
22
21
Item
Pcs.
Part No.
Descrip�on
1
1
PR-9205
2.5” sanitary ferrule
1
1
VFMA-23-PSS
MT4 DN25/1T APV tank bo�om flange
1
1
PR-9275
4” sanitary ferrule
2
1
PR-9201
2.5” sanitary clamp
2
1
PR-9271
4” sanitary clamp
3
1
PR-9202
2.5” sanitary gasket EPDM
3
1
PR-9203
2.5” sanitary gasket NBR
3
1
PR-9204
2.5” sanitary gasket Teflon®
3 1 PR-9243 MT4 DN25/1T APV gasket EPDM
3
1
PR-9272
4” 3A sanitary gasket EPDM
3
1
PR-9273
4” 3A sanitary gasket NBR
3
1
PR-9274
4” 3A sanitary gasket Teflon®
4
1
PR-10008
PR-23-P-TSS head
4
1
PR-10006
PR-23-P-PSS head
4
1
PR-10007
PR-23-P-RSS head
5
1
PR-10048
68x3 O-ring
6
1
Alignment pin
7
1
PR-10005
PR-23 base
8
6
Screw M5x12
6
Locking spacer M5
9
1
PR-9011
Thermal conductor
Item
Pcs.
Part No. Descrip�on
*
1
PR-9010
Disc spring set
10
2
Disc spring
11
1
Disc spring holder
12
1
PR-10103
Sensor processor card
13
8
Screw M3x6 DIN 912 A2
14
1
PR-10300
Bus terminator card
15
1
PR-10032
O-ring seal 24x2
16
1
PR-9108
Dryer sachet
17
1
PR-10031
O-ring seal 89.5x3
18
1
PR-10000
PR-23 cover
19
1
Screw M4x30 DIN 912 A4
20
1
PR-10002
O-ring seal 82x3
21
1
PR-23-A endplate with label
22
4
Screw M4x8 DIN 964 A4
23
1
Cable gland M16x1.5
24
1
PR-10022
PR-23-P core

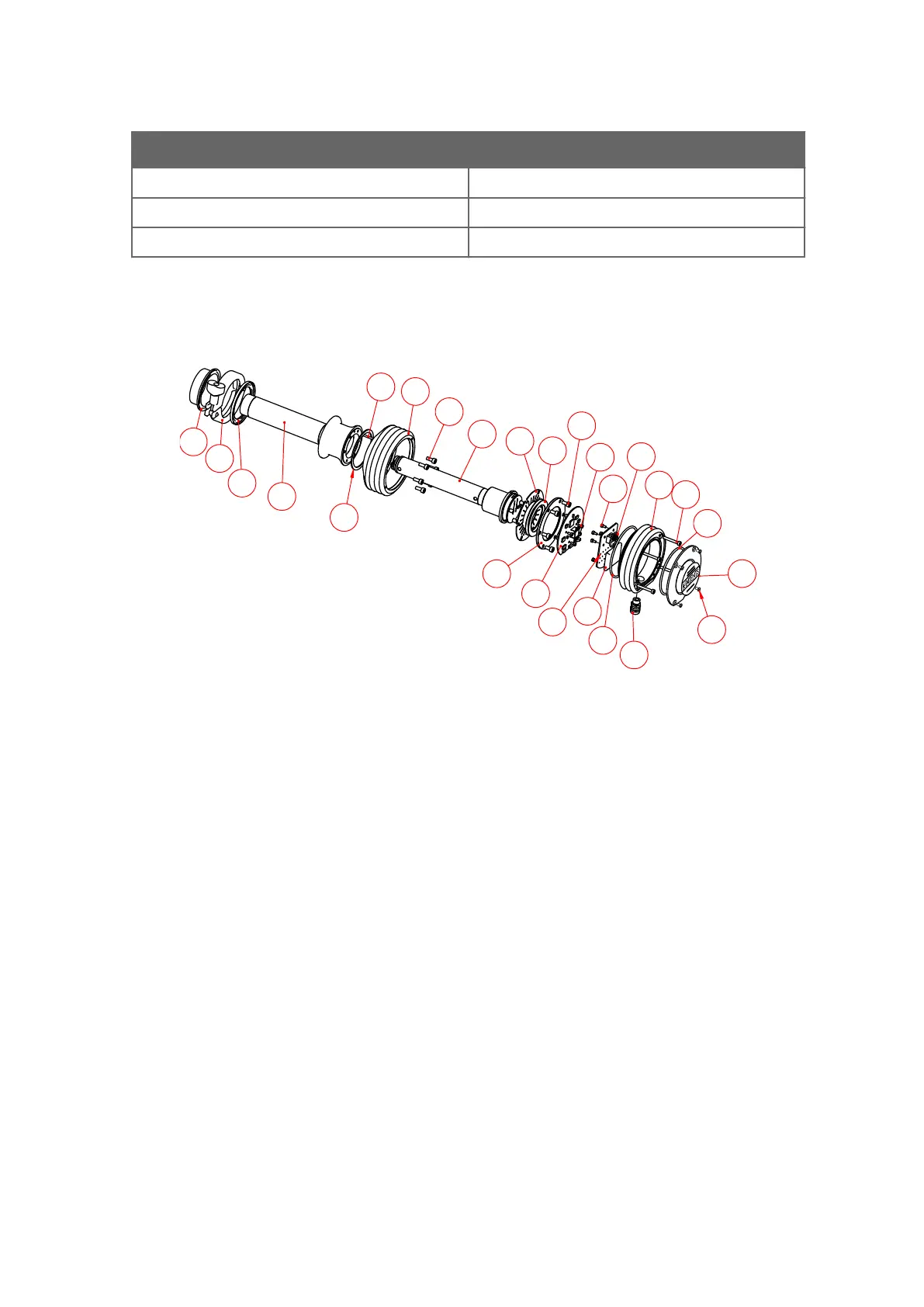

Figure 58 PR‑23‑AP parts list
10.4.5
PR‑23‑AP mounting specifics
The probe refractometer PR‑23‑AP is primarily designed for mounting in a tank wall. To
ensure that the measurement is representative and that the prism stays clean, install the
probe close to a stirrer.
Chapter 10 – Sensor specifications
119
