Probe refractometer type PR‑23‑AP‑T is c
onnected to the process by a 2.5 in sanitary clamp.
PR‑23‑AP‑R is connected by a 4 in sanitary clamp.
For higher process (or ambient) temperatures, use instead a flush moun
ted
sensor, where the electronics in the sensor head are farther away from the process heat,
see Figure 60 (page 121).
CAUTION!
mm
[in]

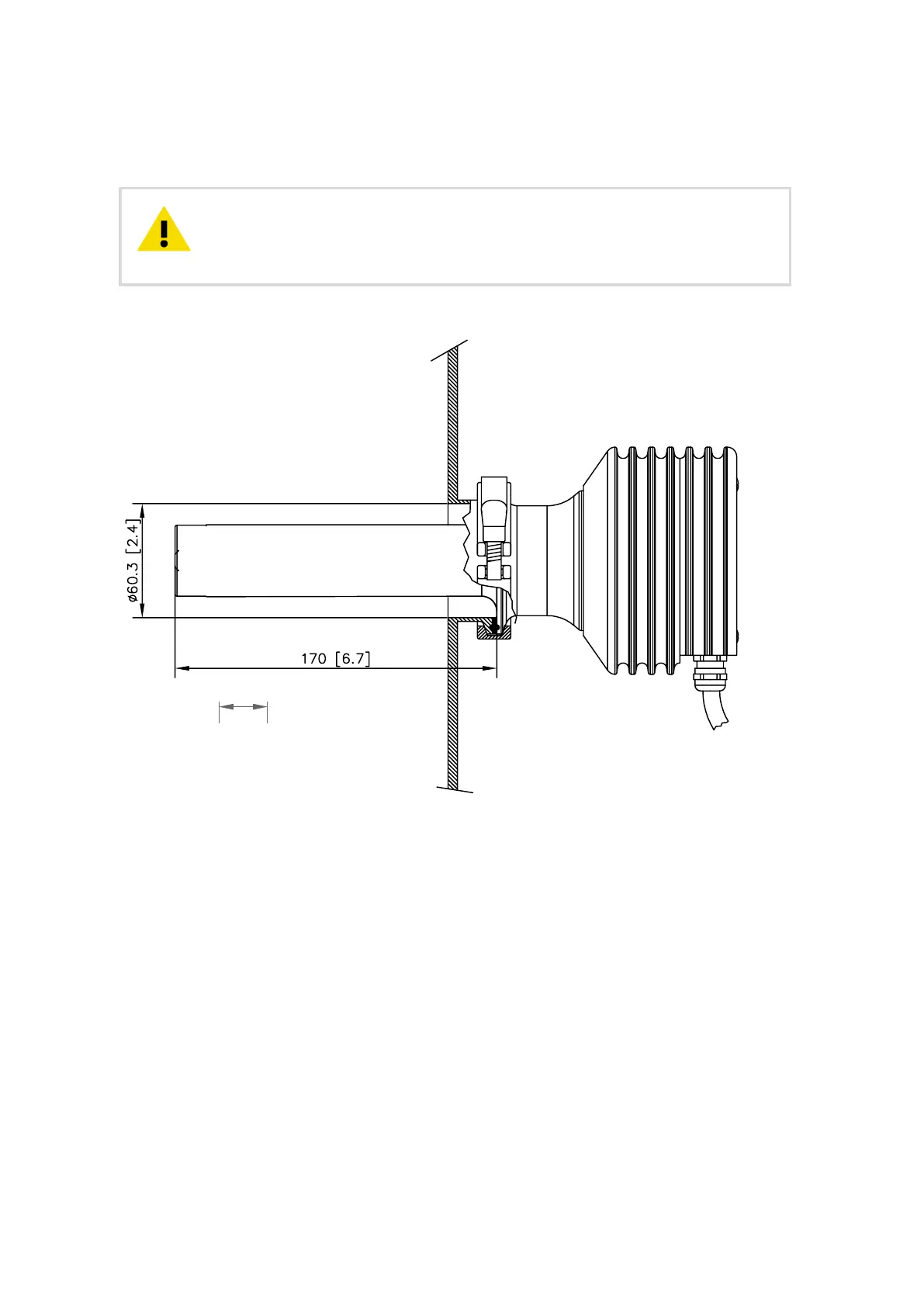

Figure 59 Insertion of probe refractometer PR‑23‑AP‑XX
‑TSS
The refractometer type PR‑23‑
AP‑XX‑PSS is flush mounted, using a sanitary APV tank
bottom flange. The sensor can be flush‑mounted in the side wall, which allows the use of a
scraper. It is also easily installed through a steam jacket.
