10.7.6 PR23RP mounting specifica
tions
The refractometer sensor is installed in the process, either directly by welding a mounting
flange t
o 2 in or larger pipes or vessels, or using a 1 in, 2 in or 3 in cross flow cell. Due to the
sensors rugged, innovative non-weld sensor body, and selfcleaning or optional wash
system capabilities, the PR23RP functions accurately and reliably in harsh refinery
conditions. Intrinsically safe and hazardous area certification is provided for hazardous
areas.
PR23RP mounting in CFC 1 in line
Item.
Descripon
Supplied by
Pcs.
Item.
Descripon
Supplied by
Pcs.
1
Sensor PR-23-RP-73-M20
Vaisala
1
5
Bolt, washer and nut for 1”ange
Customer
8
2
CFC-RP-M20-M10-NC-PG/SN/WP
Vaisala
1
6
1’’ ange gasket
Customer
2
3
2”ANSI 300 Wash nozzle
Vaisala
1
7
2’’ ange gasket
Customer
3
4
1”ANSI 300 blind ange
Vaisala
1
8
1’’ ANSI 300 Welding neck ange
Customer
2
9
Bolt, washer and nut for 2”ange
Customer
16

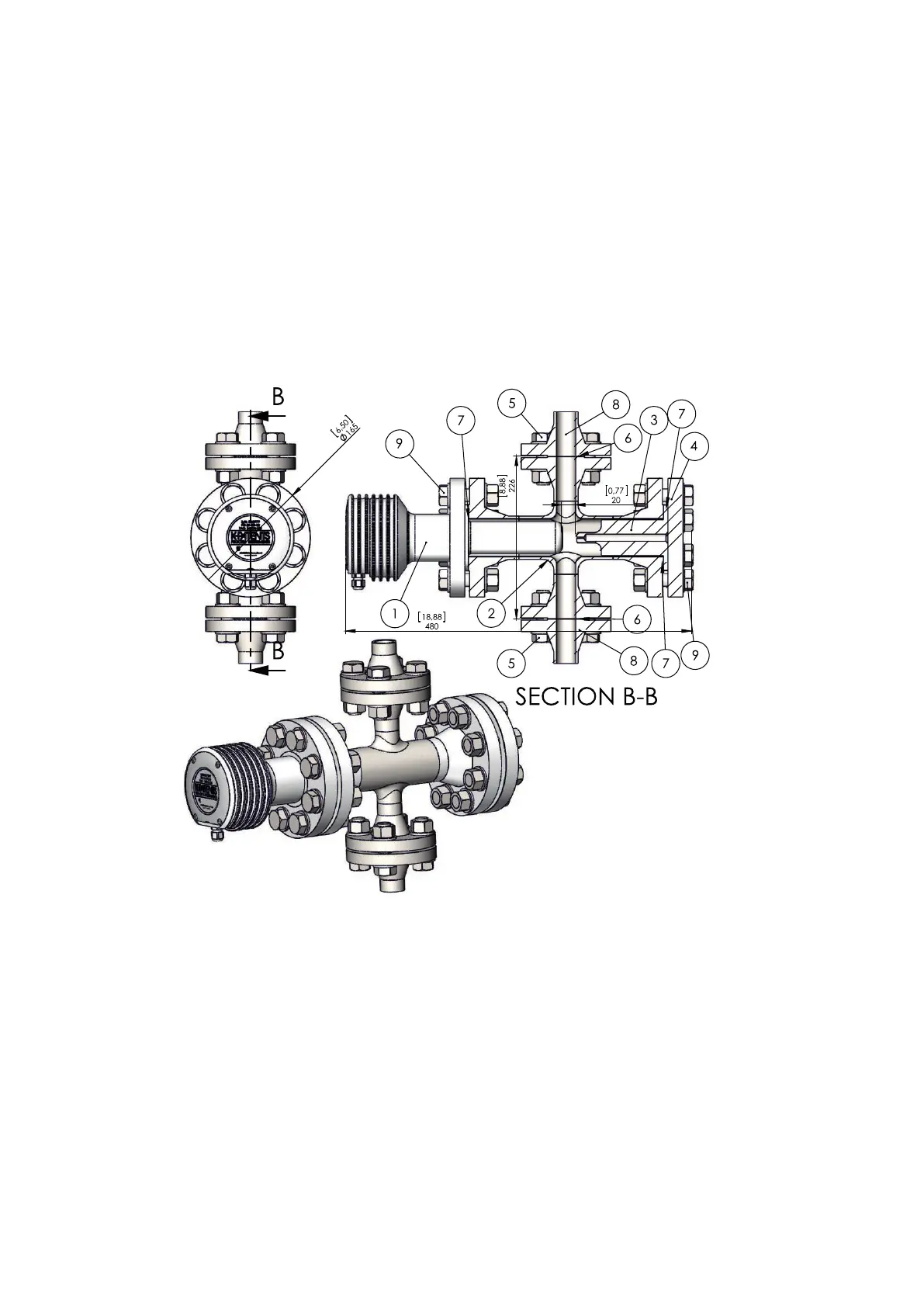

Figure 75 CFCRPM20SS/HC/HA
M10NCPG/SN/WP flow cell
PR-23 Series User Guide
IM-EN-PR23-E
144
