The sensor itself is built just like the PR23M sensor, see Teflon body refractometer
PR23M/MS (page 146), and it is fixed to the Saundersâ body in the same way, with a
sapphire plate and a Kalrezâ Oring to keep all the metallic parts away from the process
liquid.
PTFE wetted parts
Sapphire plate
O-ring (Kalrez)
Prism
Flow cell adapter
(AISI 316L)
Graphite cast iron
Saunders valve body flow cell
F
L
O
W
PR-23-W Sensor
PFA/ETFE

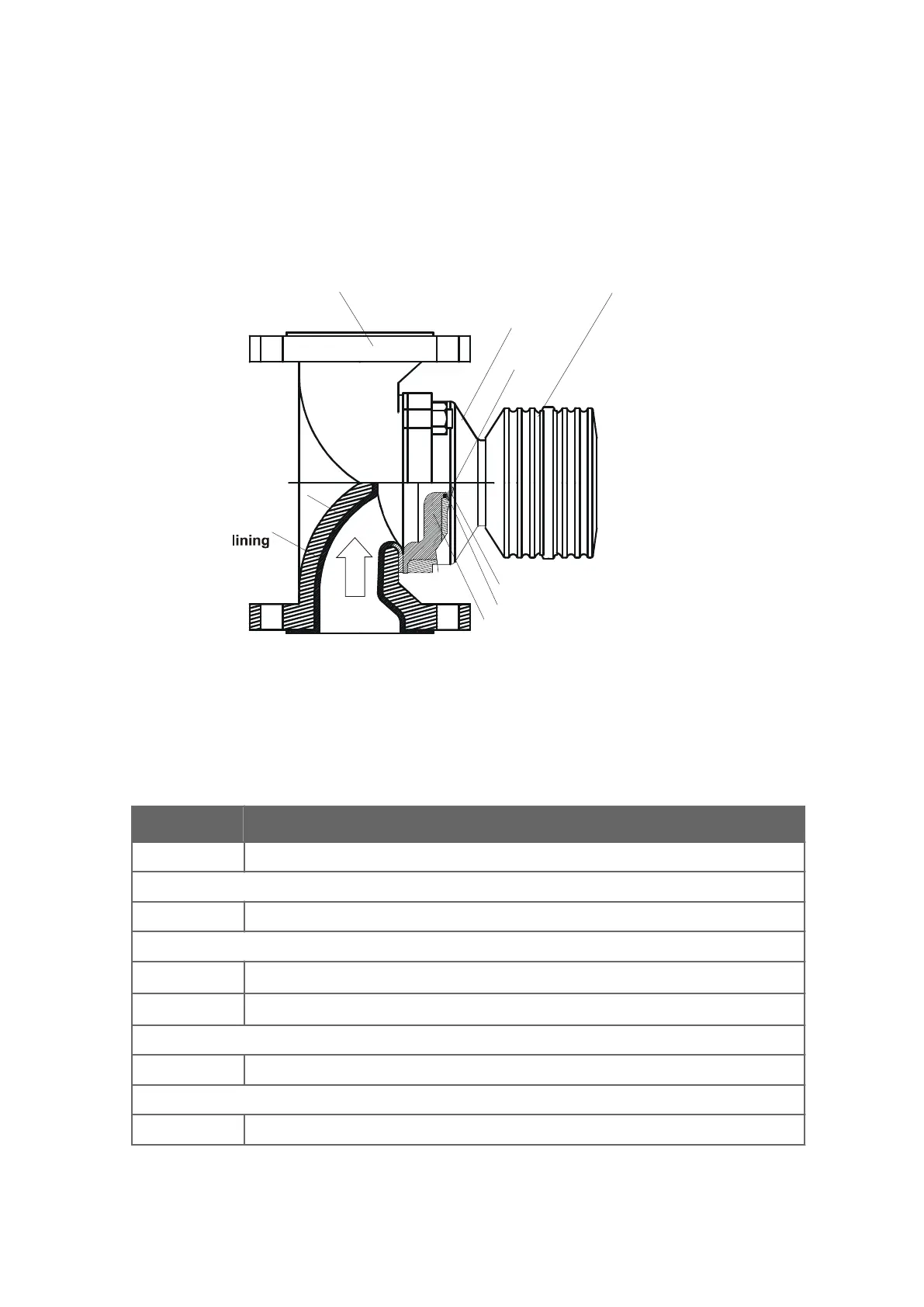

Figure 82 PR23W Saundersâ body sensor
10.9.1
 PR23W sensor model code
Table 49 PR23W sensor model code
Model Description
PR23 Sensor
Sensor model
W Aggressive medium Saundersâ body flow cell
Refractive index range limits
73 R.I. 1.320–1.530 n
D
sapphire prism
74 R.I. 1.260–1.470 n
D
sapphire prism
Sensor wetted parts material
2TF Teflonâ PTFE (Plytetrafluoroethylene)
Sensor/diaphragm valve body connection
2 Adapter for 2 in/DN 50 valve body
