6.3 Viewing system information
The DESCRIPTION selection from the Main menu, see Figure 24 (page 52), opens a path to
complete information about the system and calibration. This path is risk-free in the sense
that no values can be changed through this menu. To be able to make changes, select
CALIBRATION from the Main menu.
The Description menu, see Figure 27 (page 55), leads to the following information:
1. SYSTEM: See Figure 27 (page 55), right side.
2. mA OUTPUTS: See Configuring mA outputs (page 70).
3. RELAYS: See Configuring relays (page 66).
4. SWITCHES: See Configuring input switches (page 68).
5. PRISM WASH: See Configuring relays (page 66) and Configuring prism wash
(page 77).
6. PARAMETERS: See Calibrating concentration measurement (page 72).
7. NETWORK: The Ethernet address and card ID of the DTR.

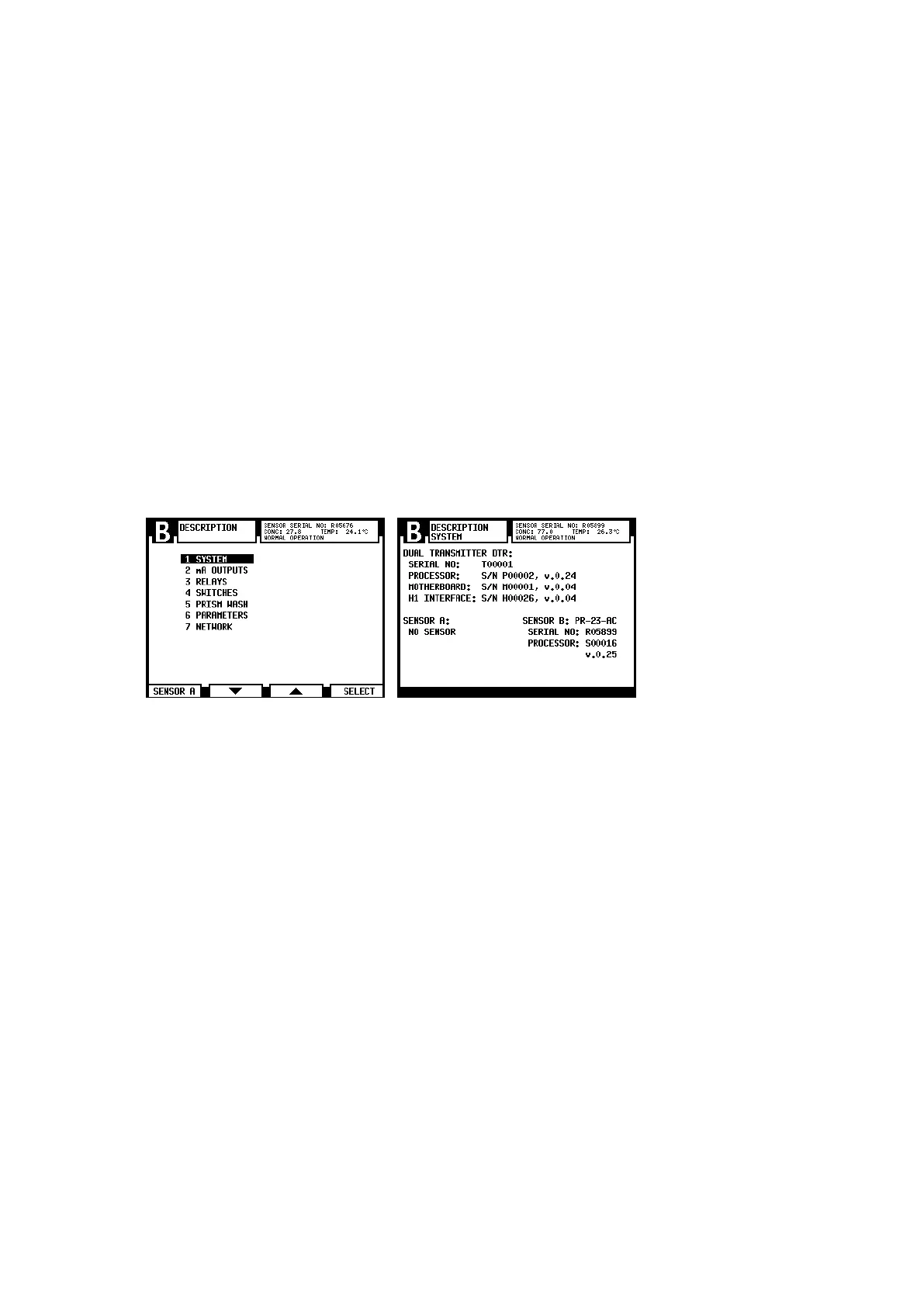

Figure 27 System description
More information
‣
Ethernet connection specification (page 227)
6.4
Viewing sensor status
Select SENSOR STATUS from the Main menu.
6.4.1
Optical image with IDS
Image Detection Stabilization (IDS) compensates for unwanted noise in the image. In the
following figure, the vertical dotted line indicates the position of the shadow edge. For
empty pipe, the optical image resembles the figure on the left side.
Chapter 6 – Startup and use
55
To Next Page
