10.7.4 PR‑23‑RP head parts lis
t
Item
Pcs.
Part No.
Descrip�on
Item
Pcs.
Part No.
Descrip�on
1.1
1
PR-23-RP head
3
1
2” ANSI 300 flange
1.2
1
PR-23-RP head Hastelloy C
4
1
PR-10049
O-ring 50x3 FPM
1.3
1
PR-23-RP head Alloy 20
5
6
M6x16 DIN912 A4
2
1
PR-23-RP outer head
6
6
M6 Nord lock washer

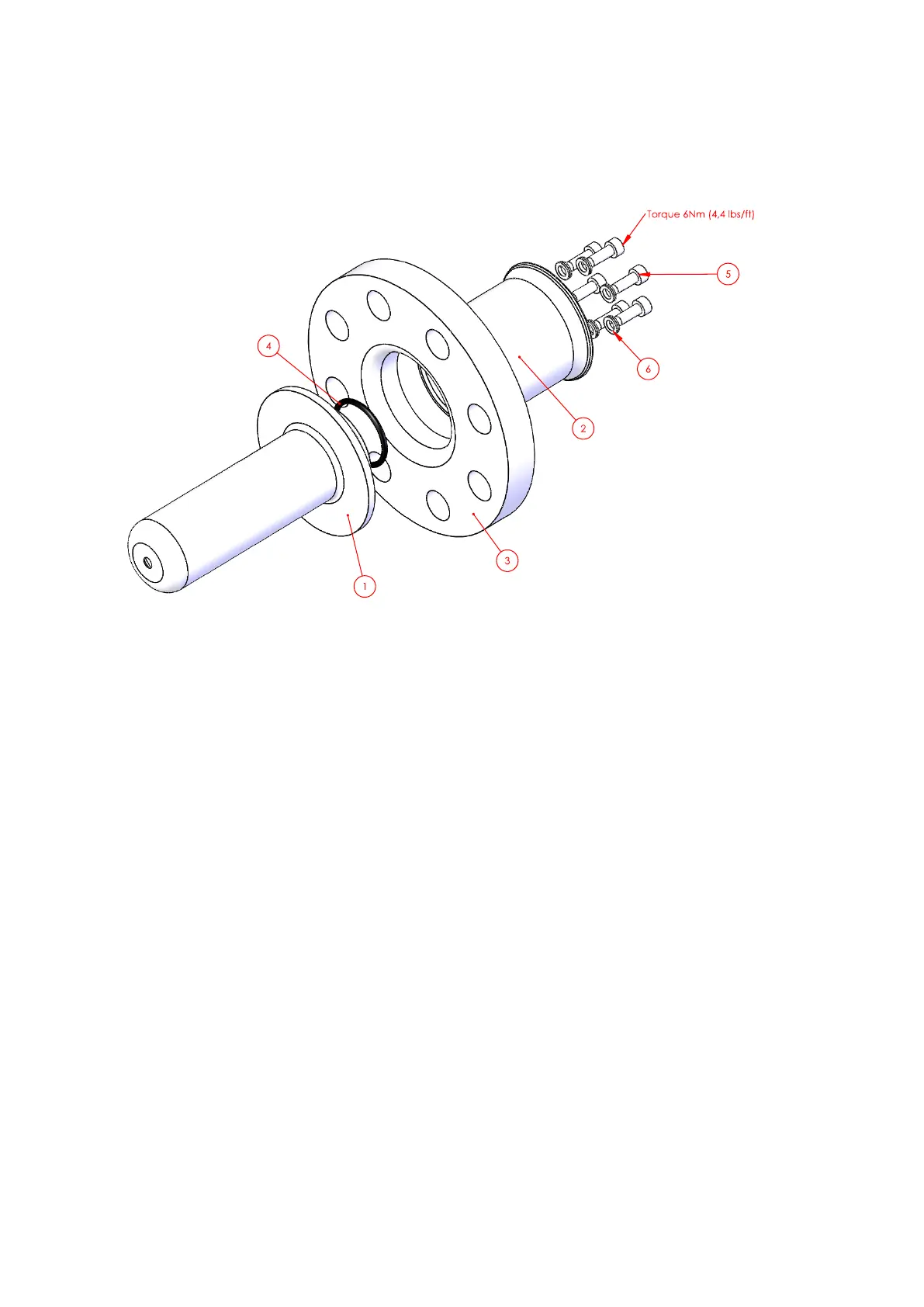

Figure 73 PR‑23‑RP head parts list
PR-23 Series User Guide
IM-EN-PR23-E
142
