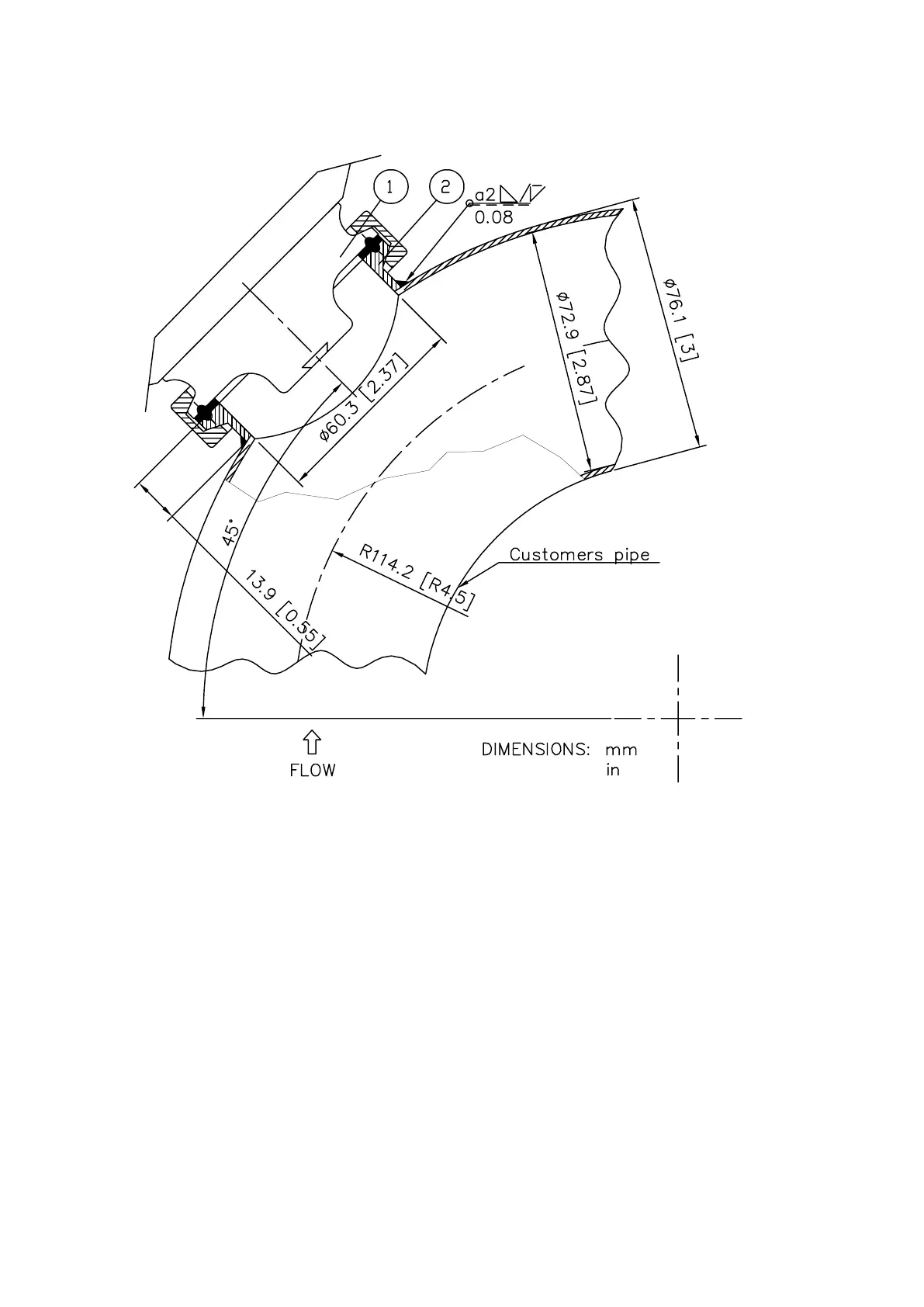

Figure 53 Mounting with sanitary ferrule pipe diameter 3 in (80 mm) or more
For smaller pipe diameters, flow cells are available from Vaisala, see Figure 54 (page 109),
Figure 55 (page 110), Figure 56 (page 111) and Figure 57 (page 112), see also the tables in
PR‑23‑AC mounting hardware model code (page 102).
The flow
cells are exchangeable with standard 90 ° bend pieces.
