Vaisala PR-23 Series - Figure 13 Sanitary Prism Wash System for Steam

V
A
I
S
A L A
V A I
S
A L A
V A I S A L A
V A I S A L A
V A I S A L A
V
A I

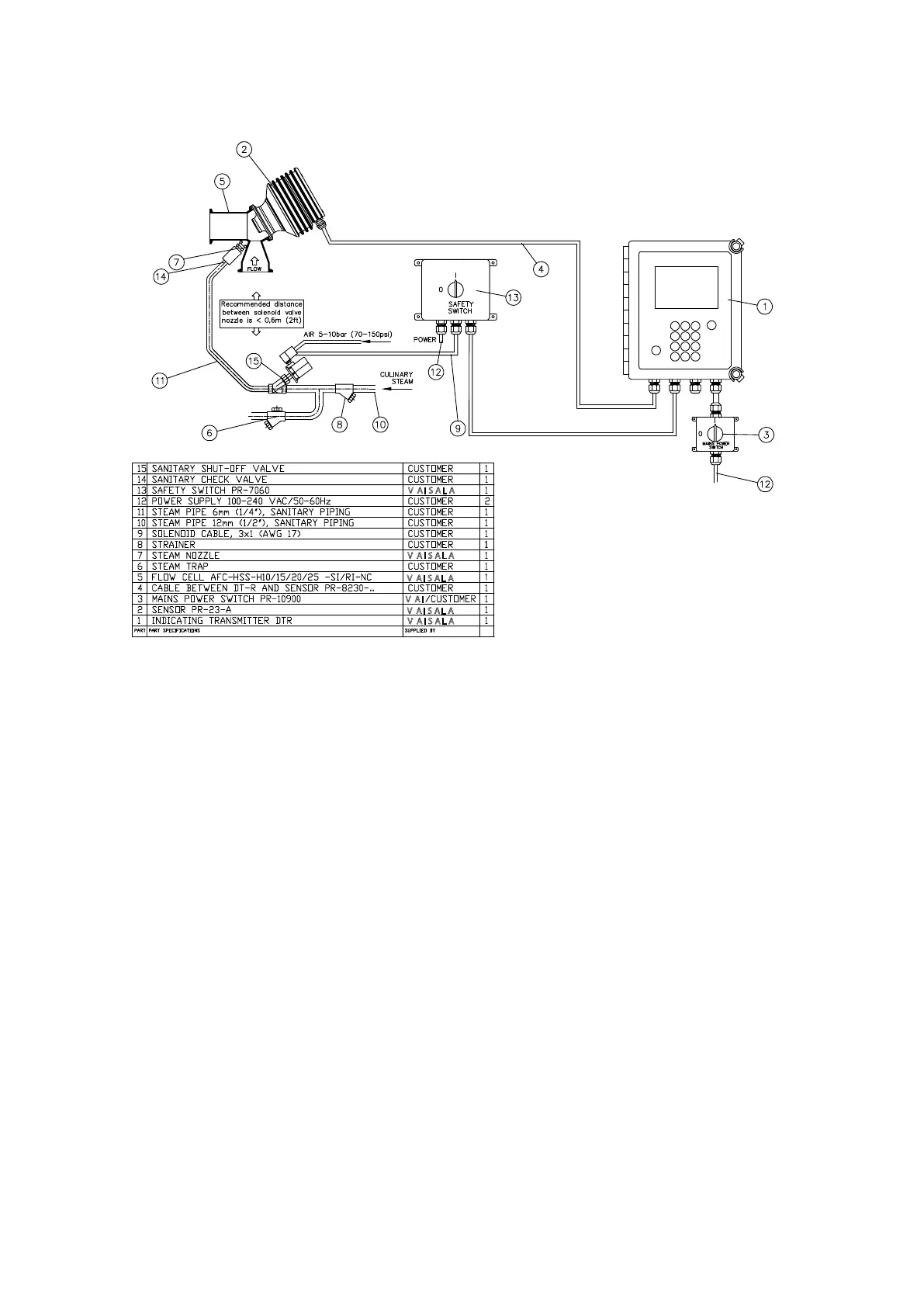

Figure 13 Sanitary prism wash system for steam
In case of excessive pressure in steam systems: If the steam pressure exceeds the maximum
pressure dierential,
install a pressure reducing valve PR‑3341‑J to reduce the steam
pressure to optimal design.
