Vaisala PR-23 Series User Manual

10.7.3 PR‑23‑RP parts list
Item
Pcs.
Part No.
Descrip�on
1.1
1
PR-10043
PR-23-RP-SS head
1.2
1
PR-10043-HC
PR-23-RP-SS Hastelloy® C 276
1.3
1
PR-10043-HA
PR-23-RP-SS Alloy® 20 head
2
1
PR-10048
68x3 O-ring
3
1
Alignment pin
4
1
PR-10005-SC
PR-23 base SS
5
6
Screw M5x10 DIN 912 A2
6
1
PR-10041
H73 CORE-Op�cs module PR-23 P
7
1
PR-9011
Thermal conductor
*
1
PR-9010
Disc spring set
8
2
Disc spring
9
1
Disc spring holder
10
6
Screw M5x13 DIN 912 A2
6
Locking spacer M5
Item
Pcs.
Part No.
Descrip�on
11
1
PR-10103
Sensor processor card
12
8
Screw M3x6 DIN 912 A2
13
1
PR-10300
Bus terminator card
14
1
PR-10032
O-ring seal 24x2
15
1
PR-9108
Dryer sachet
16
1
PR-10031
O-ring seal 89.5x3
17
1
PR-10000-SC
PR-23 cover SS
18
4
Screw M4x30 DIN 912 A4
19
1
PR-10002
O-ring seal 82x3
20
1
PR-23 endplate with label
21
4
Screw M4x8 DIN 964 A4
22
1
Cable gland M16x1.5

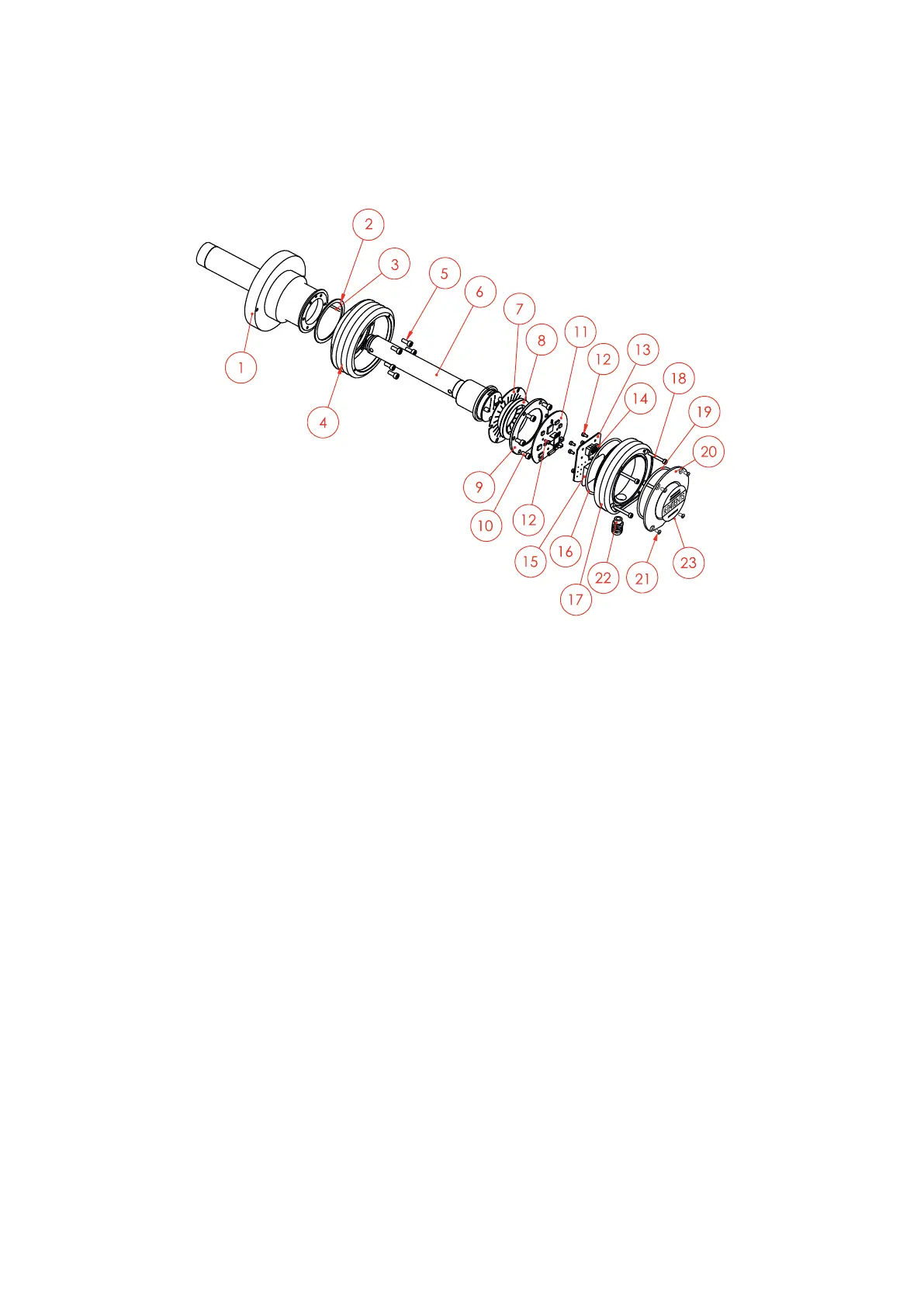

Figure 72 PR‑23‑RP parts list
