Flow cell type
A
B
C
D
AFC-H10-SI
22.6 [0.890]
22.6 [0.890]
25.6 [1.008]
50.8 [2]
AFC-H15-RI
22.6 [0.890]
35.6 [1.402]
38.6 [1.520]
70.3 [2.768]
AFC-H15-SI
35.6 [1.402]
35.6 [1.402]
38.6 [1.520]
70.3 [2.768]
AFC-HSS-H15-RI AFC-HSS-H10/H15-SI
SECTION A-A
SCALE 1 : 2
A
B
C
D
D
45

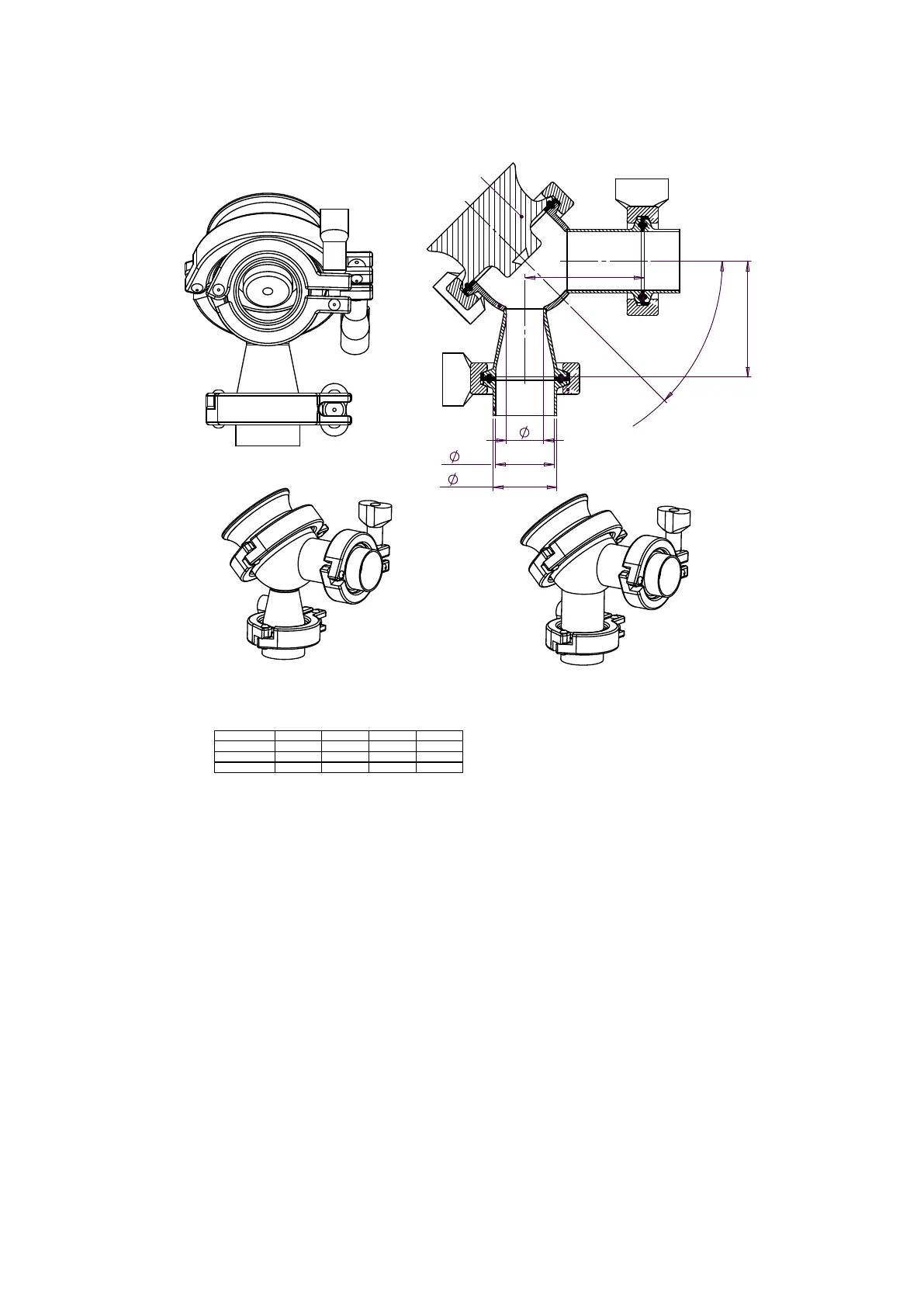

Figure 54 Flow cell AFCHSS H10 for pipe diameter 1 in (25 mm) and H15 for pipe diameter
1.5 in (40 mm)
Chapter 10 – Sensor specifications
109
