7. Calibrate the LHLink turning angle:
The fault indicator light blinks three times every 2 seconds and the indicator
light in the on/off button is lit.
GUID-9D8983BC-13FE-4AA8-A8FB-F6AB34AA11AC

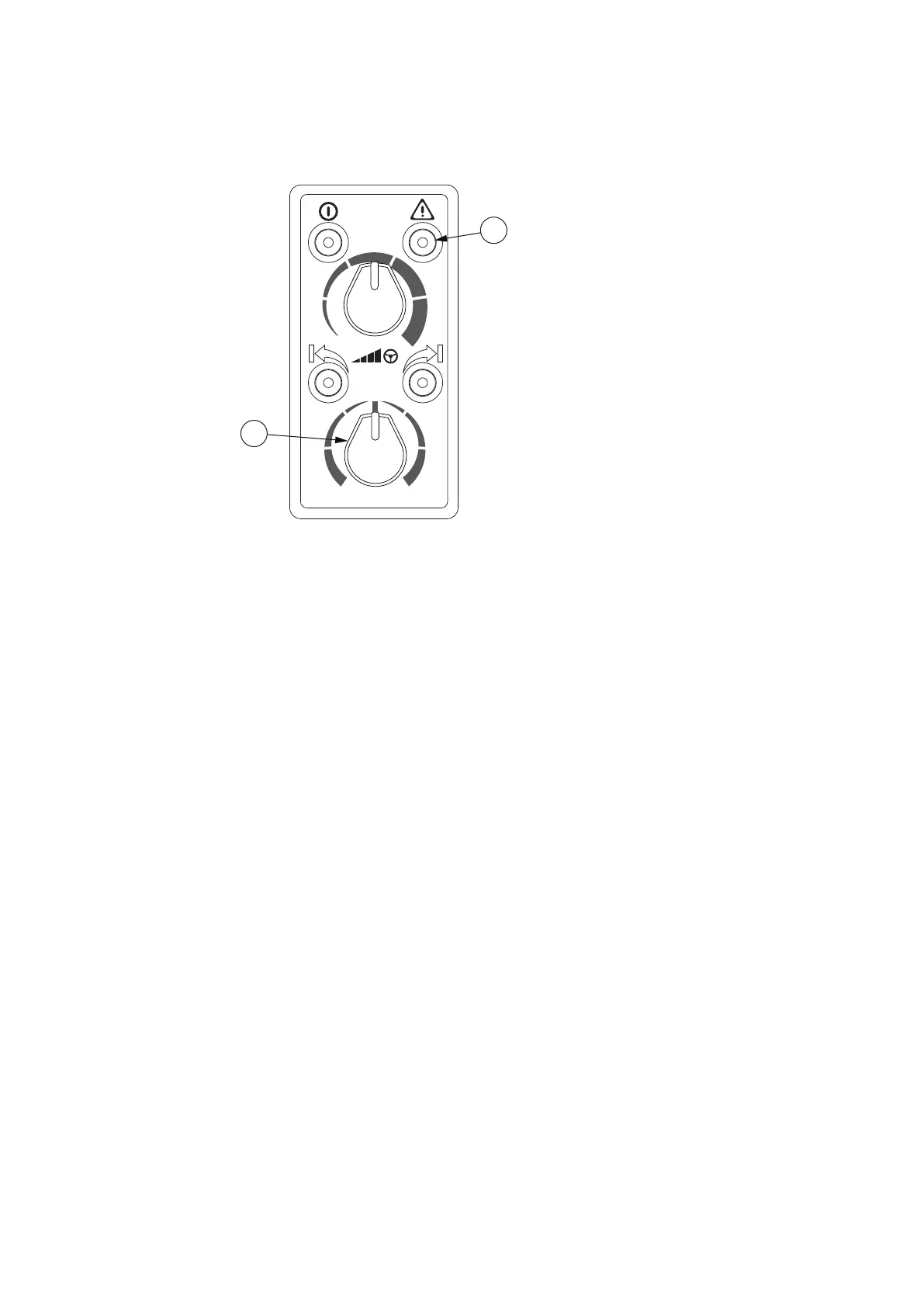

1. Fault indicator light and button
2. Offset pivot controller
• Turn the LHLink to the left extreme position by rotating the offset pivot
controller to the left.
• Turn the LHLink to the right extreme position by rotating the offset pivot
controller to the right.
• Turn the LHLink to the centre position by rotating the offset pivot
controller.
You must rotate the offset pivot controller slowly to the left from the
centre position. When the LHLink has turned to the centre position, then
return the offset pivot controller to the centre position.
• Press the fault indicator button to save the LHLink turning angle
calibration.
