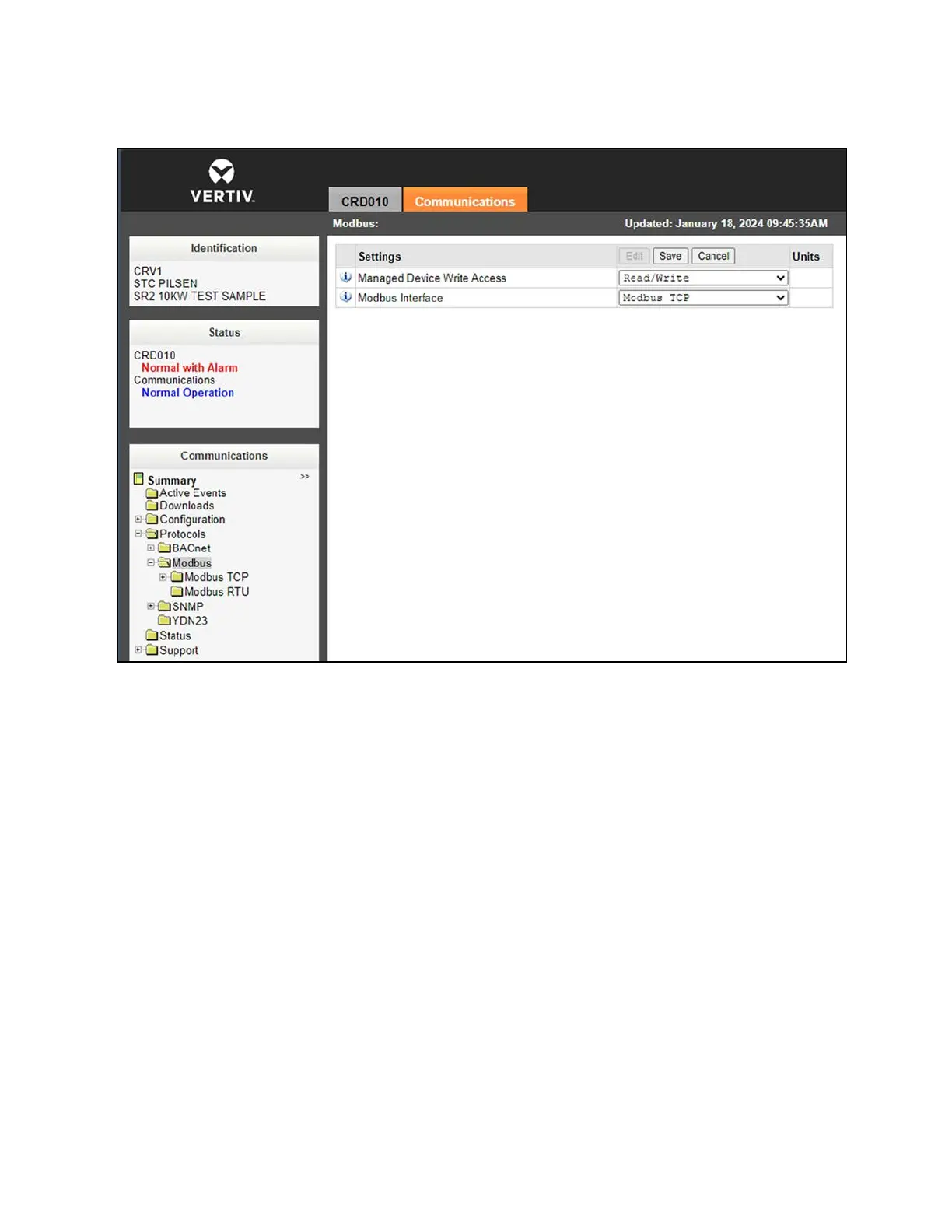

Figure 7.15 Communication Protocol Setting - Read/Write Access
5. From the IPv4 screen, change the IP address mode of the cooling system to static mode. The static IP addresses
are as follows:
• CRV1: 192.168.1.23
• CRV2: 192.168.1.24
• Default Gateway: 192.168.1.1
7 Network Settings Proprietary and Confidential ©2024 Vertiv Group Corp. 61
Vertiv™ SmartRow™ 2 Infrastructure Solution User Guide
