Main Menu Configuration
15
3.2.1.1. Audio Recording
Selecting audio recording. If it's OFF, audio is not going to be included on recording video file.
3.2.1.2. Time Overlay
This is to overlay the recording time on to the recorded video data.
3.2.2. Resolution

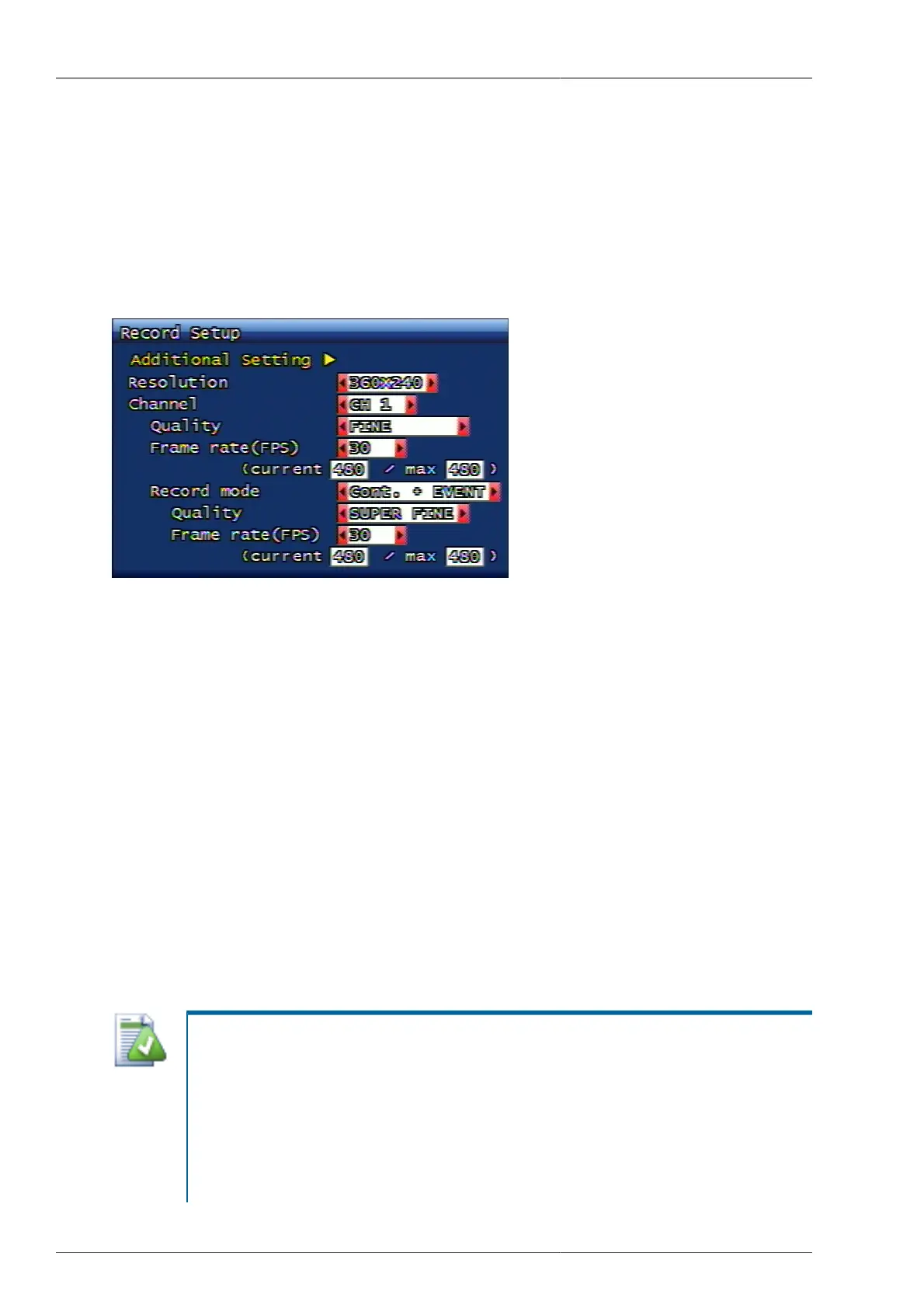

Figure 3.9. Recording Setup Screen
For resolution setup, in case of NTSC, there are 360 x 240, 720 x 240, 720 x 480 selectability, in case of PAL, there
are 360 x 288, 720 x 288, 720 x 576 selectability, and selected resolution is to be applied to all channels in common.
3.2.3. Channel
The user can set up recording quality, recording speed and recording condition per individual channel. The user
can select the channel to set up. ALL selection is very useful to set up the whole channels at once.
3.2.4. Picture Quality
This is to set up recording quality per each channel. 4 different levels of setup are available, which are Normal,
Enhanced, Fine, Super Fine.
3.2.5. Recording Speed
This is to set up the recording speed per each channel. NONE (No recording), 1, 2, 3, 4, 5, 6, 8, 10, 15, 30 fps setup
is available. In case of 16 channel DVR, total recording speed accumulation can be made up to 480fps/NTSC, or
to 400fps/PAL. (8CH: 240fps/NTSC, 200fps/PAL - 4CH: 120fps/NTSC, 100fps/PAL)
Application of extra frame rate.
In case of 16 channel DVR, under CIF resolution condition, 480fps/NTSC, or 400fps/PAL can be
recorded. Accordingly under Full D1 condition, max 120fps/NTSC, or 100fps/PAL can be recorded.
For instance, if the user allocates 30fps/NTSC, or 25fps/PAL for 4 channels and watches live video
via network, he can watch the video with 30fps/NTSC, or 25fps/PAL allocated channels only.
The user can utilize the balance FPS to the channels with no recording from the allocated recording
FPS channels. For instance, in case of 16 channel DVR, the user can set up max. 240fps/NTSC, or
