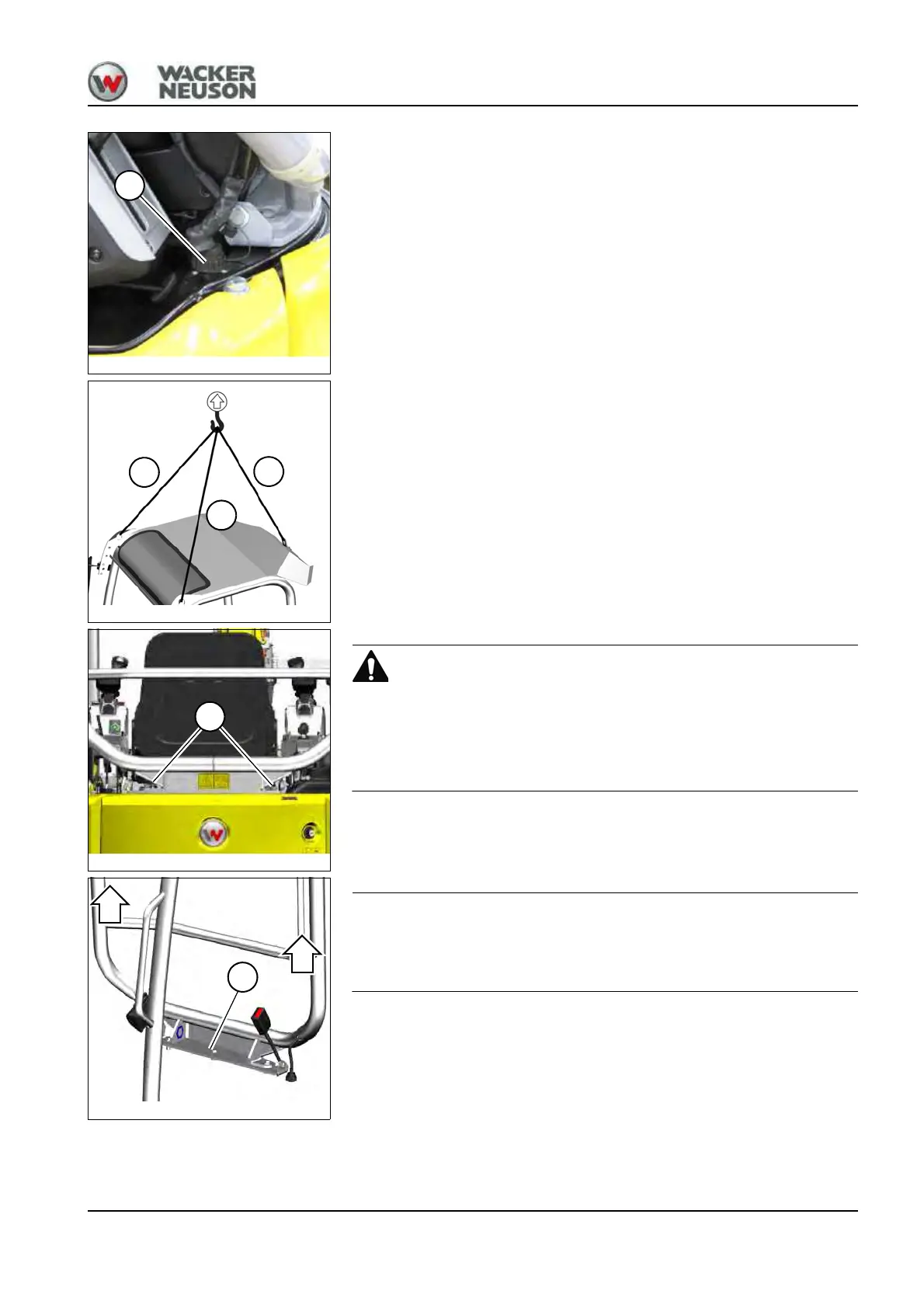

6. Remove the electric connector B if it is installed on the machine. The
connector is located at the left behind the seat.
7. Install the lifting gear at the points provided for lifting the machine. The
mandatory length L is a minimum 1300 mm (51 in).
8. Apply tension to the canopy with the lifting gear.
Crushing hazard due to pre-tensioned canopy!
The pre-tensioned canopy can cause serious injuries.
► Pay attention to the movements of the pre-tensioned canopy as you
remove the screws.
9. Remove screws C on either side.
➥ Raise the seat to improve access if necessary.
Damage to surface due to centering D on lower side.
► Raise the canopy sufficiently as you remove it.
10.2 persons are required for removing.
11.Raise the canopy a little on either side, and raise it out of the anchoring.
