12.Rotate the upper carriage about 10° to the right to improve access to
screws E.
13.Remove screws E on either side.
14.Raise as follows:
- Raise the control lever base.
- Remove the starting key and carry it with you.
- Get out of the canopy.
- Close and lock the engine cover and the other covers.
- Remove loose objects from inside the machine.
- Wait until the canopy does not swing any more and is completely
steady.
15.Set down the canopy safely and ensure that it cannot tip over.
Instaling

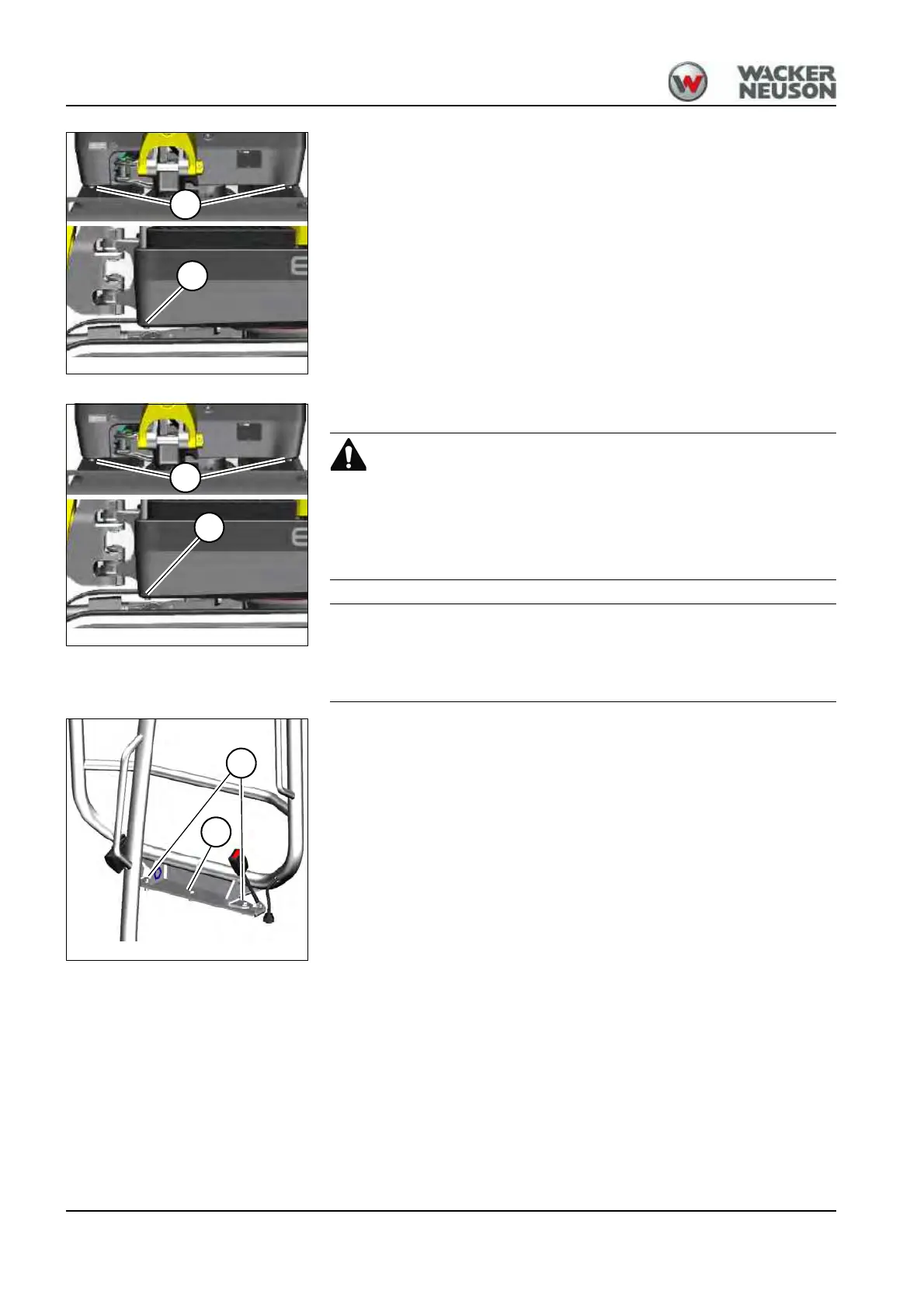

1. Install screws E on either side and tighten them only slightly.
Crushing hazard due to pre-tensioned canopy!
The pre-tensioned canopy can cause serious injuries.
► Pay attention to the movements of the pre-tensioned canopy as you
install the screws.
Damage to surface due to centering D on lower side.
► Raise the canopy sufficiently as you install it.
2. 2 persons are required for installing.
3. Raise the canopy a little on either side, and press it into the anchoring.
4. Tighten screws C and D to 110 Nm (81 ft.lbs.). The washers and
securing elements can be used again.
➥ Raise the seat to improve access if necessary.
5. Tighten screws E on either side.
6. Install the electric connector B if it is installed on the machine.
7. Remove shackle A from the roof and install it in the engine
compartment.
8. Install the roof lights if they are installed on the machine.
9. Close the engine cover.
