OM EZ17 us 1.0 * ez17e300.fm 3-17
3

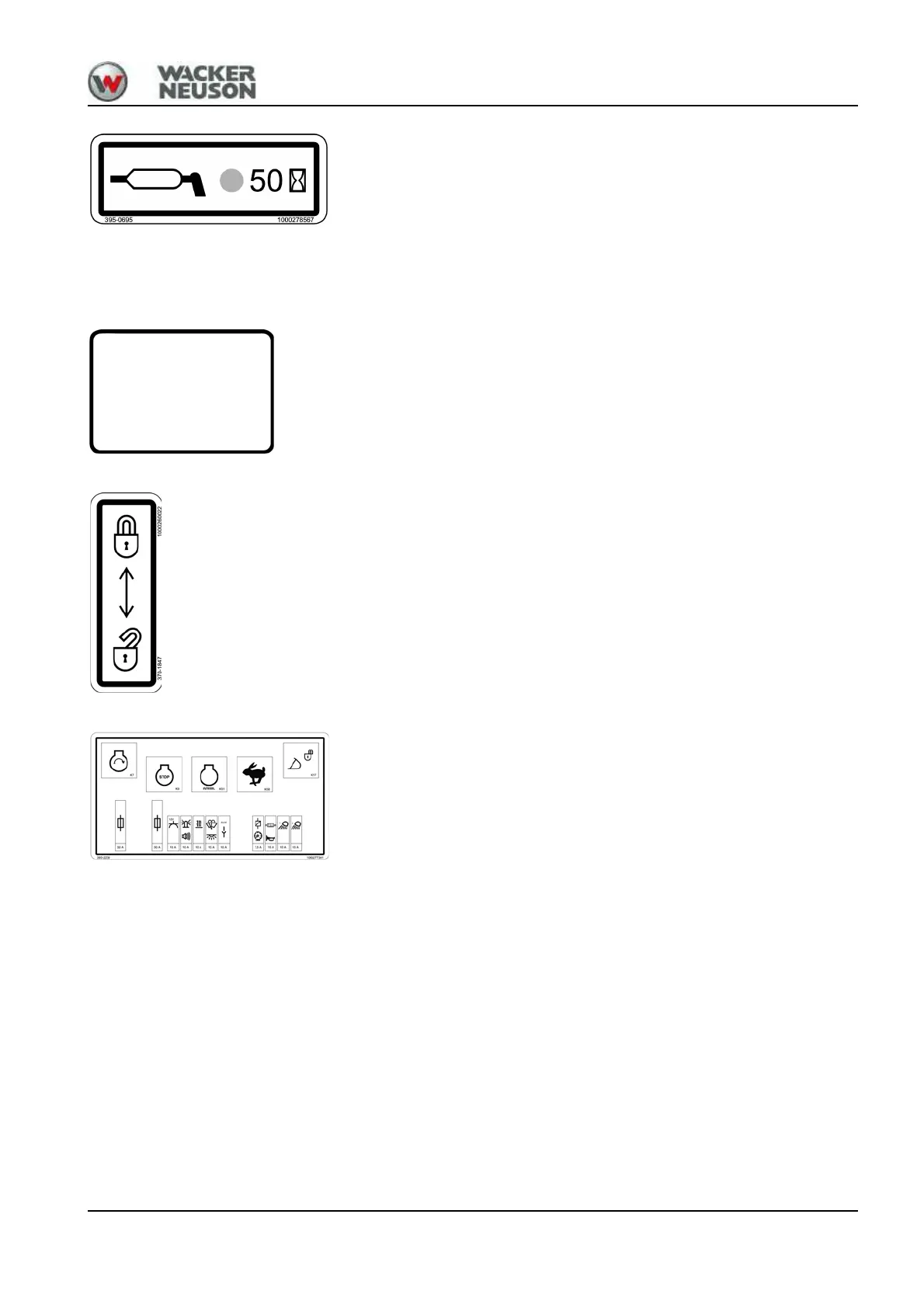

Meaning
Indicates the interval at a which lubrication point must be lubricated.
Green grease nipples mean: lubrication every 50 hours or once a week.
Blue grease nipples mean: lubrication every 10 hours or daily.
Position
On the upper carriage at the front right in traveling direction.
Meaning
Reflector at the rear.
Position
On either side of the machine at the rear.
Meaning
This label indicates the position in which the control levers are locked.
Position
On the left-hand control lever base.
Meaning
Fuses and relays.
Position
Inside the battery cover.
Fig. 30
Fig. 31
Fig. 32
Fig. 33
