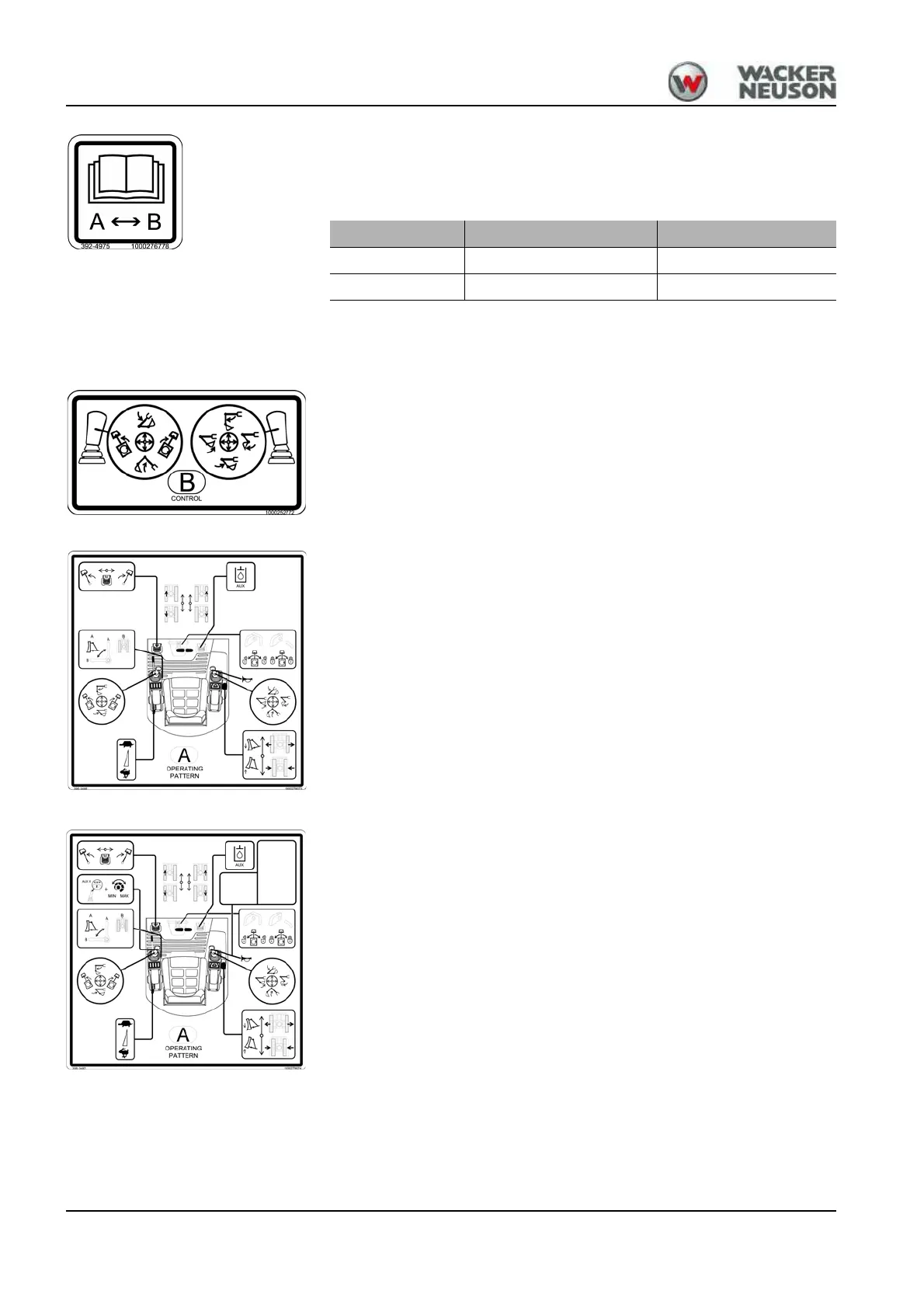

Meaning (option)
Check before starting the machine the operating pattern that has been
chosen. Label shows the lever position in which the ISO or SAE controls
are selected.
Position
At the left under the seat.
Meaning (option)
Indicates the control operations that do not comply with the ISO standard
if the SAE controls are selected (operating pattern B: SAE controls).
Position
On the headliner.
Meaning
This label describes the functions of the pedals and control levers
(Operating Pattern A: ISO controls).
Check before starting the machine the operating pattern that has been
chosen.
Position
On the headliner.
This label describes the functions of the pedals, control levers and 3rd
control circuit/Powertilt with proportional controls (Operating Pattern A:
ISO controls).
Check before starting the machine the operating pattern that has been
chosen.
Position
On the headliner.
Fig. 34
Wiring diagram Controls
A ISO controls Operating Pattern A
B SAE controls Operating Pattern B
Fig. 35
Fig. 36
Fig. 37
