216 Run-time System CODESYS 2.3 WAGO-I/O-SYSTEM 750
750-8208 PFC200 CS 2ETH RS CAN DPM
Manual
Version 1.1.0, valid from FW Version 02.06.20(09)
10. You can select a module in the new “Module selection” window that then
appears.

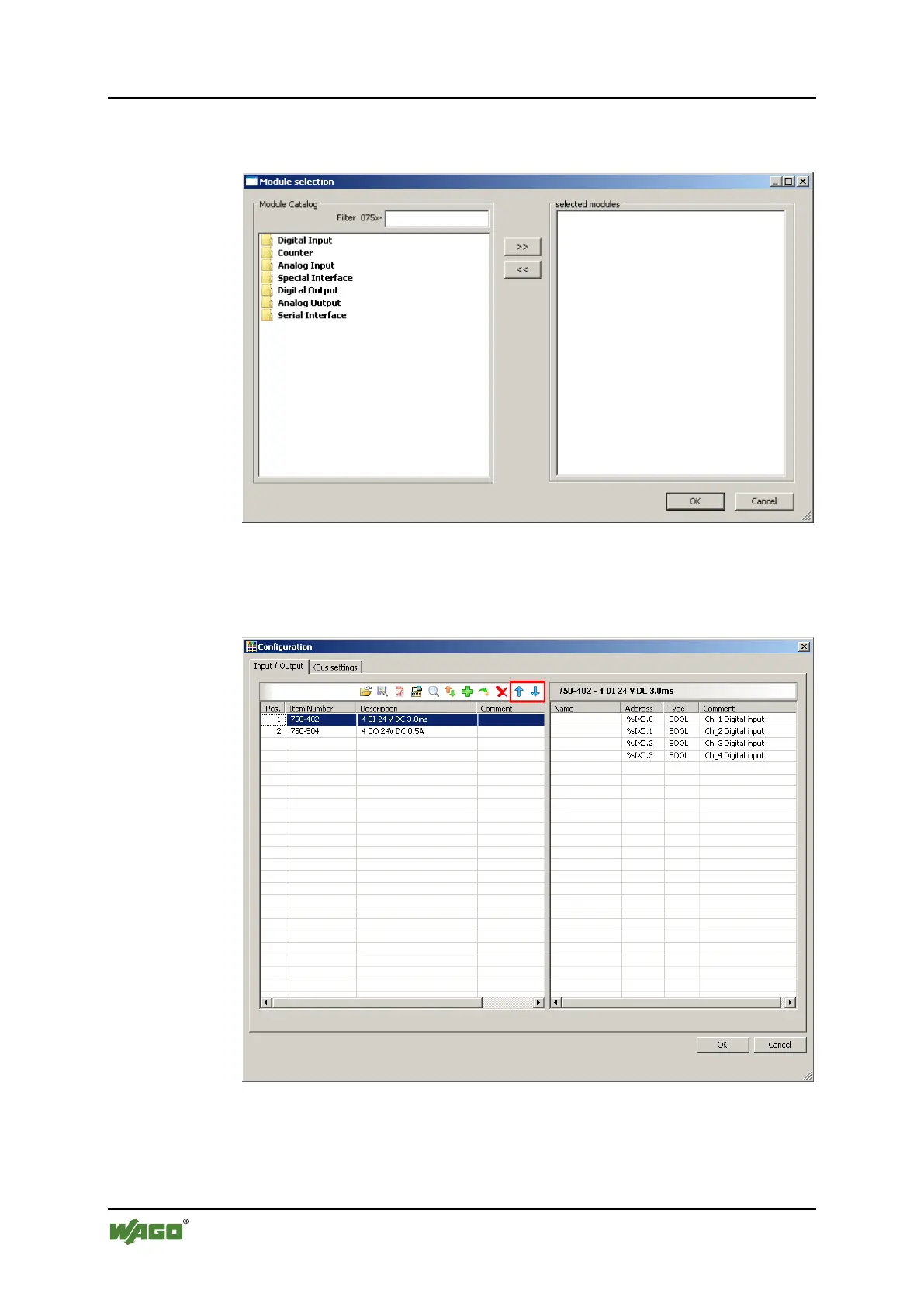

Figure 61: “Module Selection” Window
11. You can change the position of an I/O module by marking it and then using
the arrow buttons at the right edge of the window to move it up or down.
Figure 62: I/O Configurator with Defined I/O Modules
12. Use [Import configuration from file] to add a configuration imported
previously using WAGO-I/O-CHECK.
