11.1.2.3 PROFIBUS Master bus parameters

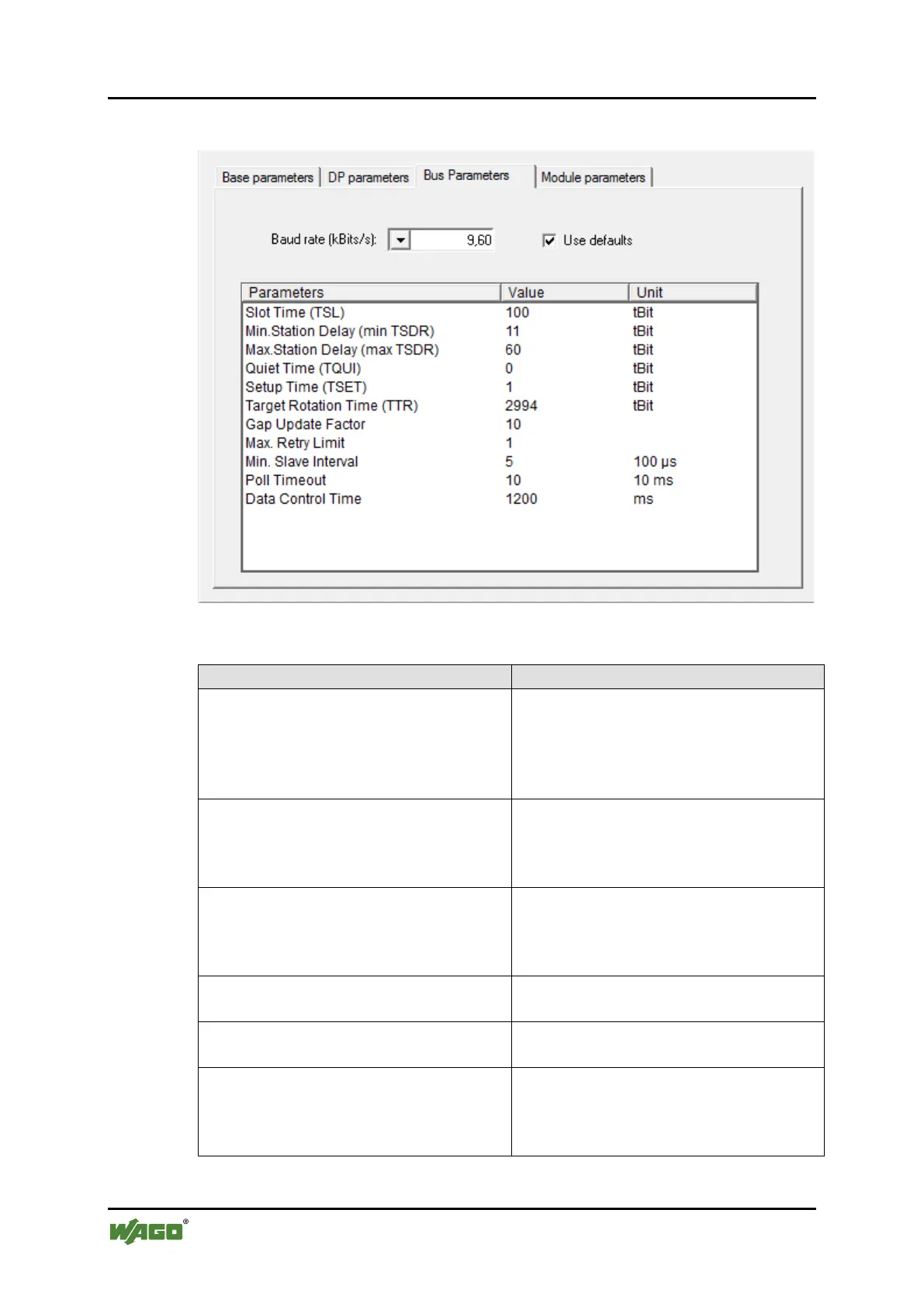

Figure 150: “Bus parameters” Tab
Table 226: “Bus parameters” Tab
Parameters
Description
Baud rate (kBits/s)
Here it is possible to set the desired
baud rate for transmitting the data to the
PROFIBUS. The setting is dependent on
the PROFIBUS network (line length,
etc.)
Use defaults
If the control field is activated, the
settings under “Parameters” will be
automatically taken over from the GSD
file, depending on the baud rate.
Slot Time (TSL)
Maximum time the master waits to
receive the first character in the reply
telegram from a slave after transmitting
a request telegram.
Min. Station Delay (min TSDR)
Minimum reaction time before a slave
replies.
Max. Station Delay (max. TSDR)
Maximum reaction time for a slave to
reply.
Quiet Time (TQUI)
Rest period to be taken into
consideration when switching over from
NRZ signals (Non Return to Zero) to
other codings.
