390 Service WAGO-I/O-SYSTEM 750
750-8208 PFC200 CS 2ETH RS CAN DPM
Manual
Version 1.1.0, valid from FW Version 02.06.20(09)
13 Service
13.1 Inserting and Removing the Memory Card
</dg_
13.1.1 Inserting the Memory Card
1. Use an actuating tool or a screwdriver to open the transparent cover flap by
flipping it upwards. The point where to position the tool is marked with an
arrow.
2. Hold the memory card so that the contacts are visible on the right and the
diagonal edge is at the top, as depicted in the figure below.
3. Insert the memory card in this position into the slot provided for it.
4. Push the memory card all the way in. When you let go, the memory card
will move back a little and then snap in place (push-push mechanism).
5. Close the cover flap by flipping it down and pushing it in until it snaps into
place.
6. You can seal the closed flap through the hole in the enclosure next to the
flap.

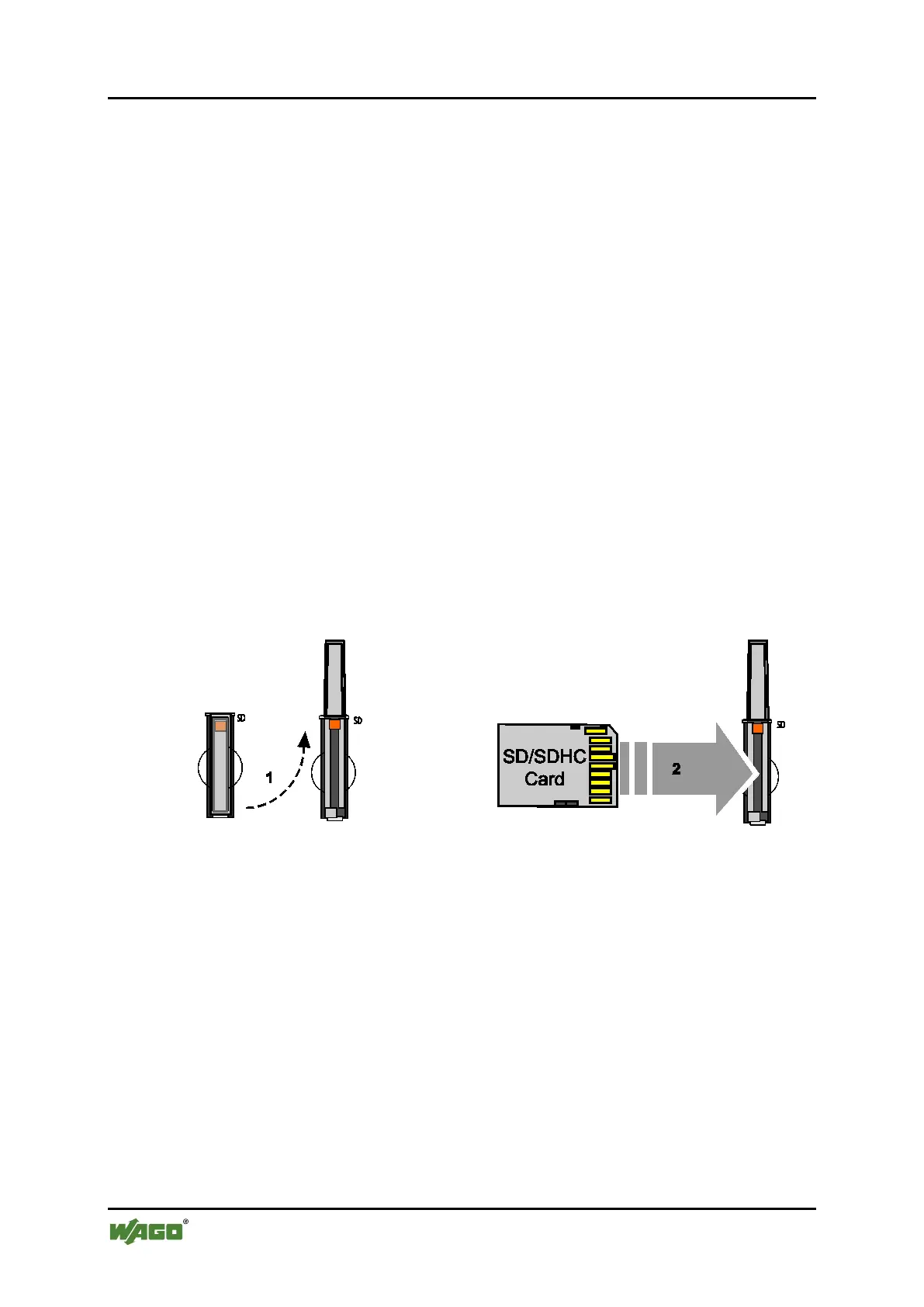

Figure 177: Inserting the Memory Card
</dg_
13.1.2 Removing the Memory Card
1. First, remove any seal that may be in place.
2. Use an actuating tool or a screwdriver to open the transparent cover flap by
flipping it upwards. The point where to position the tool is marked with an
arrow.
3. To remove the memory card you must first push it slightly into the slot
(push-push mechanism). This releases the mechanical locking mechanism.
4. As soon as you let go of the memory card, the memory card is pushed out a
bit and you can remove it.
5. Remove the memory card.
